AOSM 25 ELECTRICALLY ANGLED AUTOMATIC SIZING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:24 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance
Supplier
Main Product:
Marble Quarry Machinery And Quarry Equipment|
Machinery Function Features

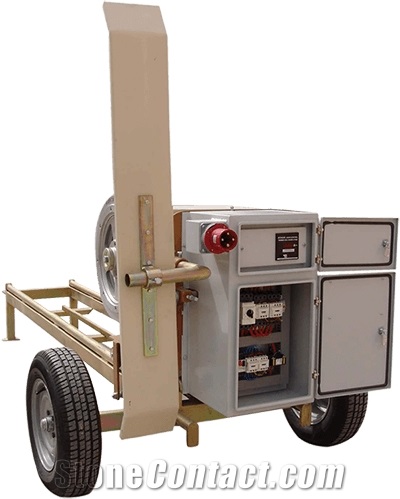

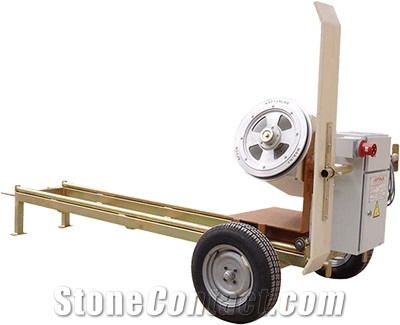

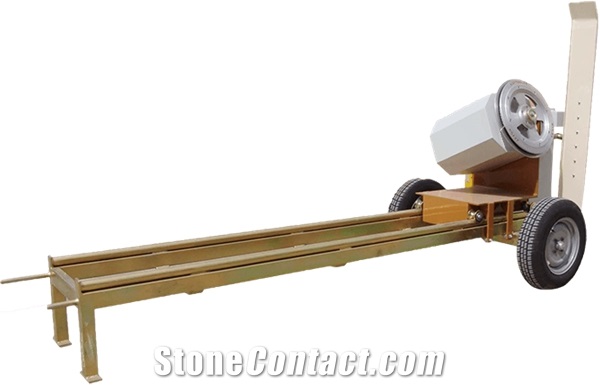

AOSM 25 ELECTRICALLY ANGLED AUTOMATIC SIZING MACHINE :
The diamond wire cuts the block marble by a rolling pulley. When the machine starts, engine moves the motor shaft and it turns the pulley. The gap creating while cutting on the diamond wire resolved by automatic walking engine, so that the cutting process occurs. Water is sending to the cutting zone by hoses controlled with valves. The water protects the cutting equipment from warming up and takes the marble dust away.
Technical Data
Parameters |
Unit |
AOSM 25 |
Main motor power |
kw |
18.5 |
Working angle |
180° in all positions |
|
Cooling water requirements |
L/h |
200 |
Capacity |
m |
25 - 35 |
Cutting speed |
m2/h |
5 - 6 |
Pulley diameter |
cm |
50 |
Machine height (H) |
mm |
1000 |
Machine length (L) |
mm |
3370 |
Machine Width (W) |
mm |
1000 |
Motor speed |
Rpm |
1500 |
Walking system |
Automatic Speed Control With Redactor |
|
Wire used |
Diamond |
|
Approximative Weight |
Kg |
320 |
Motor voltage |
V |
380 |
