Standard Crusher 250-80

FOB Price:

Type: Stone Quarry MachinesRock Crushers, Jaw Crushers
Usage: Granite, Marble, Limestone, Sandstone
After-Sale
Warranty:12 Months

Supplier

TECNOPORRO s.a.s.

TECNOPORRO s.a.s.

Tecnoporro

ItalyItaly

Eatablished :Dec 30,1989

Main Product:

Water Tratment, Filter Press, Filter Bags, Systems Aspiration Of Dusts, Crusher And Separartor System|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features
The 250-80 series include Stone Crushers with Special Blades and related accessories, such us Separators, Tipper Containers, Conveyor Belts (and others) are designed to recycle raw materials and scraps from processing of stone, marble, granite, porphyry, quartz, ceramics, building demolitions, similar material and glass, in small and large size, reducing the fragmented output for every requirement. Crushing process: it takes places due to a compression with a direct eccentric mechanism between different special plates (fixed and mobile), actuated by a transmission with trapezoidal belts, which can assume different levels of adjustment. Benefits: reduce the space of the same waste with its reuse in gardening, mosaic, road fills, furnishings and so on. The 250-80 Model is the basic version of the Crusher, to which you can add the desired accessories, according on your personal processing needs
Technical Data
Parameters
Unit
250-80
Mobil Plate Level
9 adjustments
Size Output Separated
mm
0 – 30/40
Dimension LxWxH
mm
800 x 700 x 1750
Loading Hopper
mm
250 x 300
Power
kw
3 (380/400V – 50/60Hz)
Weight
Kg
520
Max Output (capacity)
m³/ h
1.2
Max thickness
mm
100
Feed opening width X depth
mm
250 x 120
Processed Stone Photos
  • Processed Stone Photos

  • Processed Stone Photos

  • Processed Stone Photos

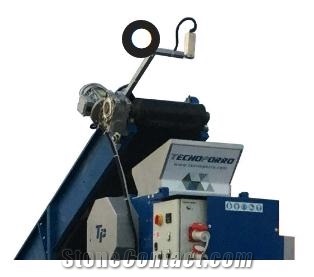

Components
  • Separation System M3

    Separation System M3

  • Conveyor belt PLUS

    Conveyor belt PLUS

  • Tipping container C1

    Tipping container C1

  • Detection sensor X

    Detection sensor X

  • Tipping container C2

    Tipping container C2

  • Lateral Staircase K

    Lateral Staircase K
