Handydrill Quarry hydraulic drilling mobile unit

Name: Handydrill Quarry hydraulic drilling mobile unit
Brand: INTERMEK S.A.
SKU: 1404
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Quarry MachinesQuarry Drilling MachineHorizontal Pneumatic Mobile Rock Drill

Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:6 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Regular guidance & maintenance, Remote troubleshooting

Supplier

INTERMEK S.A.

Intermek

Greece

Eatablished :Dec 31,2000

Main Product:

Resin Line Plant Solutions, Quarry Machines, Cutting Machines, Polishing Machines, Water Recycling Plants|

Contact supplier

Start Order

You may also like

Perfora Handydrill 100VH Quarry hydraulic drilling mobile unit

Rock Samples Mining Core Drilling Machine

Core Drilling Machine - Pandora

Horizontal Pneumatic Mobile Rock Drill Machine

Wheeled Marble Quarry Drilling Rig Machine

Product Detail
Company Profile

Overview

Machinery Function Features

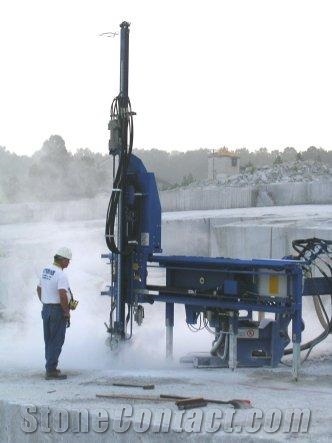

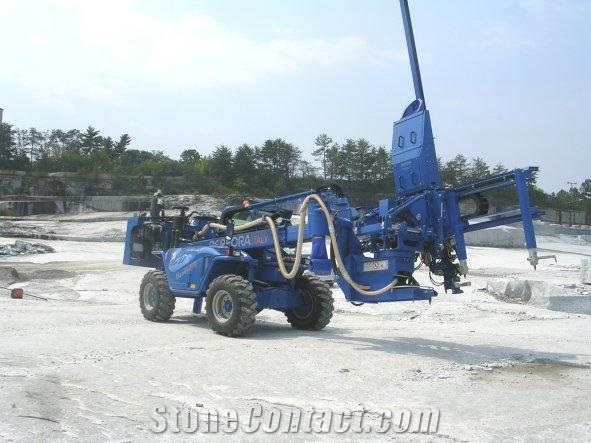

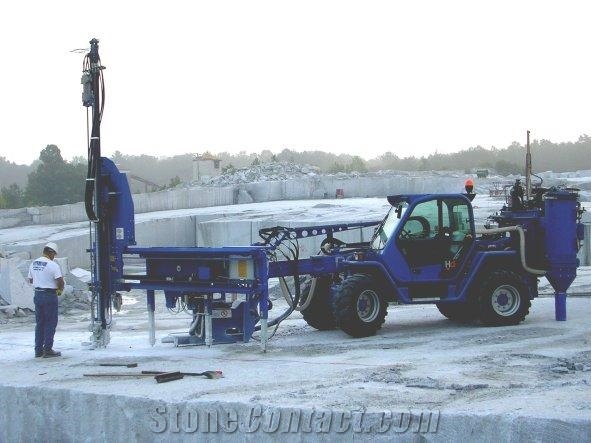

Handy Drill is a hydraulic drilling mobile unit, totally independent, and suitable for vertical drilling on any inclined and in any type of rock. Handy Drill is made up by a drilling unit placed on the boom of a four wheels driver vehicle. Some of its important characteristics are: one chain feed slides for drifters, sliding block and truck made in self-lubricating composite material, fast system steel retainer, anti jamming device, hydraulic device for inclinations regulator, radio remote control panel and water or air drain drilling.

Technical Data

Parameters	Unit	Handydrill
Total Weight	Kg	10800
Engine power	kW	74,9
Overall Width	mm	2220
Overall Height	mm	2400
Vertical track inclination	⁰	+/- 20
Overall Length	mm	7400
Average consumption	l/hour	11
Vertical rotation	⁰	+/- 90
Hole Diameter	mm	22-45
Horizontal track inclination	⁰	+/- 15
