Perfora Handydrill 100VH Quarry hydraulic drilling mobile unit

Name: Perfora Handydrill 100VH Quarry hydraulic drilling mobile unit
Brand: INTERMEK S.A.
SKU: 1408
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Quarry MachinesQuarry Drilling MachineHorizontal Pneumatic Mobile Rock Drill

Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine

Supplier

INTERMEK S.A.

Intermek

Greece

Eatablished :Dec 31,2000

Main Product:

Resin Line Plant Solutions, Quarry Machines, Cutting Machines, Polishing Machines, Water Recycling Plants|

Contact supplier

Start Order

You may also like

Rock Samples Mining Core Drilling Machine

Tracked Down the Hole (DTH) Drilling Machine - Electric / Diesel (MFFR) - ZENITH

Horizontal Pneumatic Mobile Rock Drill Mobile Line Drilling Machine

Tracked Marble Drilling Rig

Pneumatic Mobile Rock Drill- One Hammer Mobile Rock Drill PD-28B

Product Detail
Company Profile

Overview

Machinery Function Features

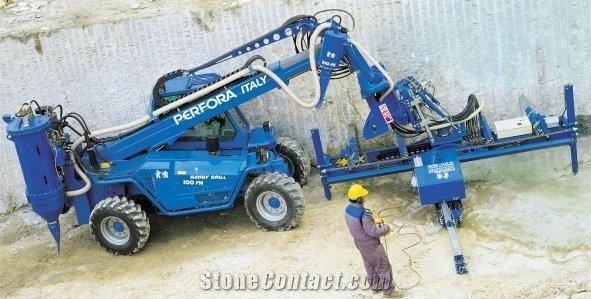

Hydraulic mobile drilling unit, suitable for vertical and horizontal on any inclined, totally independent, allowing an increase production and working quality, guarantee energy conservation and an higher working safety. Some of its important characteristics are: one chain feed slides for drifters, sliding block and truck made in self-lubricating composite material, fast system steel retainer, anti jamming device, hydraulic device for inclinations regulator, radio remote control panel and water or air drain drilling.

Technical Data

Parameters	Unit	Handydrill 100VH
Hole Diameter	mm	22-45
Overall Length	mm	9400
Average consumption	l/hour	6
Vertical rotation	⁰	+/- 90
Vertical track inclination	⁰	+/- 180
Overall Width	mm	2400
Overall Height	mm	3050
Total Weight	Kg	11700
Engine power	kW	74,9
Horizontal track inclination	⁰	+ 20 -25
