Plana SE 5 Bridge Cutter Milling Sawing Counturning
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
Stone Machines, Bridge Saw Machines, Block Cutters, Polishers Machines|
Machinery Function Features

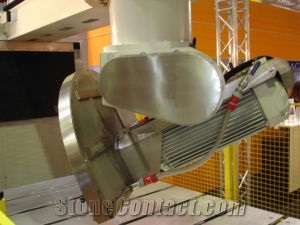

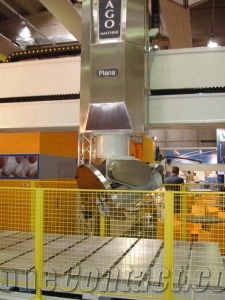

Plana SE 5 Bridge Cutter Milling Sawing Counturning:
Machine of great dimensions for theproduction of worked like:
Medium dimensions blocks.
Bathtubs dug first with disc and then finalised with cutters.
Plans kitchen of average and great dimensions.
several contornature both in marble and granite.

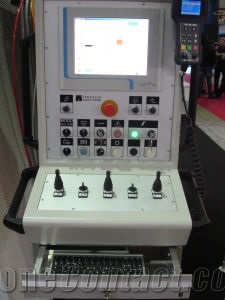

CNC Numerically controlled programmer for the management of 5 axes
Y Bridge transation
X Right-left translation of head slide
Z Up-down movement of mandrel
A Mandrel inclination 0-90°
C Head rotation ± 180°
Technical Data
Parameters |
Unit |
Plana SE 5 |
Machine length |
mm |
5500 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
24 |
Disc motor power |
kw |
30 |
Minimum Ø of flanges |
mm |
250 |
Disc diameter |
mm |
1000 |
Machine width |
mm |
5750 |
Z-axis working travel vertical cutting spindles |
mm |
370 |
C axis blade rotation |
° |
±185° |
Bridge transversal stroke(Y axis travel) |
mm |
3000 |
Head raising/lowering stroke(Z axis travel) |
mm |
1000 |
Horizontal stroke(X axis travel) |
mm |
3800 |
Vertical stroke speed (Z displacement speed) |
m/min |
25 |
Max. revolutions of the spindle unit |
r/min |
6000 |
Tools holder head inclination(A axis blade rotation) |
° |
90° |
Weight |
kg |
8100 |
Voltage/Frequency |
V/Hz |
400/50 |
Biade holder shaft Ø |
mm |
50 |
Transversal stroke speed (Y displacement speed) |
m/min |
25 |
Machine height |
mm |
4600 |

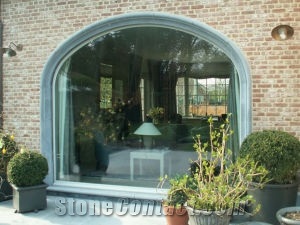

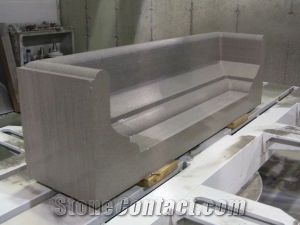

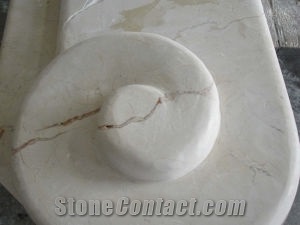

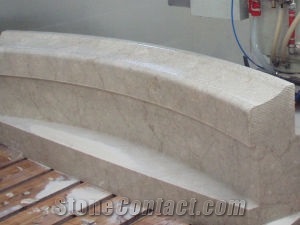

Processed Stone Photos
