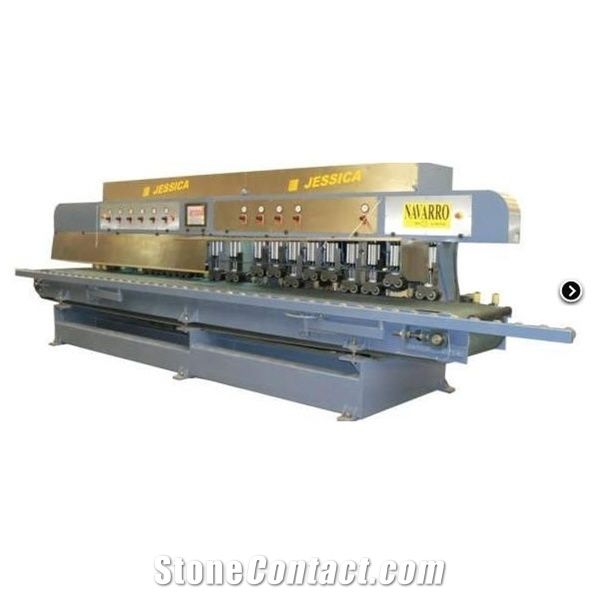

Jessica Polishing Line Machine

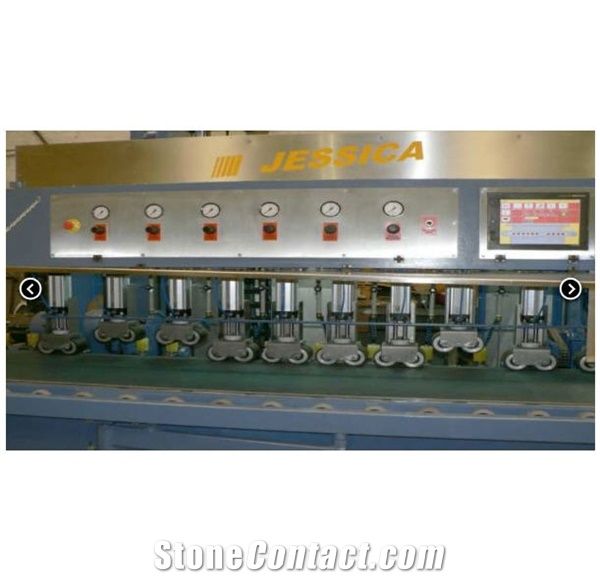

TECHNICAL DATA: - Dimension of the machine .............................. 7,000 x 2,000 x 2,000 mm - Each motor power polisher ....................................................... 2 CV - Motor power tilting system ................................................. 7 HP - Total installed power .............................................. ............... 39 CV - Motor power moldudador .............................................. 4 CV .......... - Conveyor reducer ............................................. .. 2 CV (electronic adjustable) - Thickness to polish .................................................................................... 6 cm - 1 Set drip-gauge ............................... tilt 0 ° to 90 ° - 6 engines polishers with automatic stop control programmatically. - 2 + Bevelers Bevelers lower than - 2 Blocks entered and output rollers - The first engine works as moldurador, with mechanical working radius. MACHINE The machine is built in monoblock structure By Crank Rocker System With Sealed bearings in oil bath Programmable Automatic lubrication deposit. - Securing pneumatic pistons mediantes stones with rubber rollers Accompaniment Extensible support for Long pieces. - System input and output rollers included. - Table operation via large touch screen. Shells of stainless steel machine
