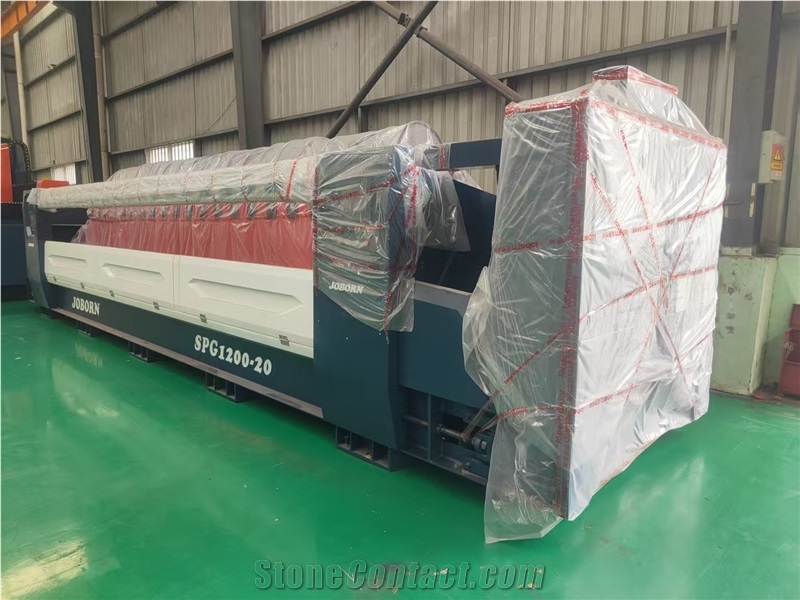

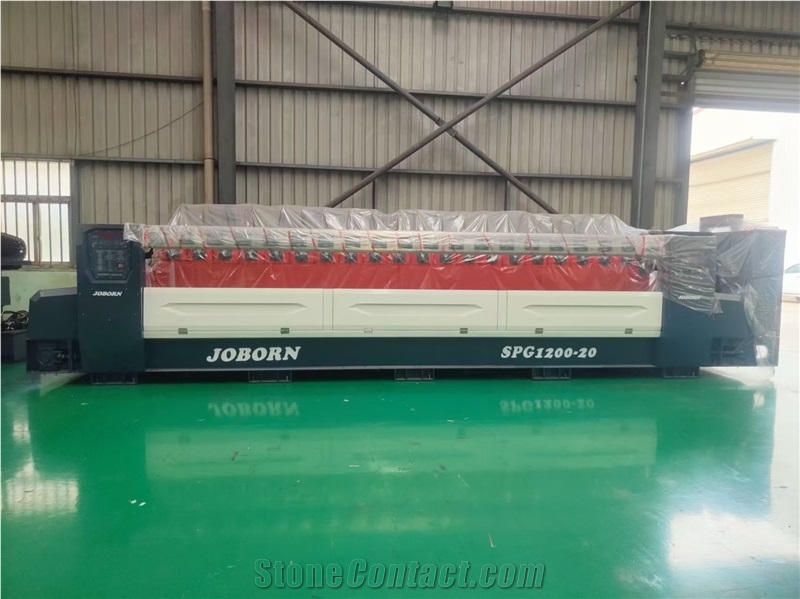

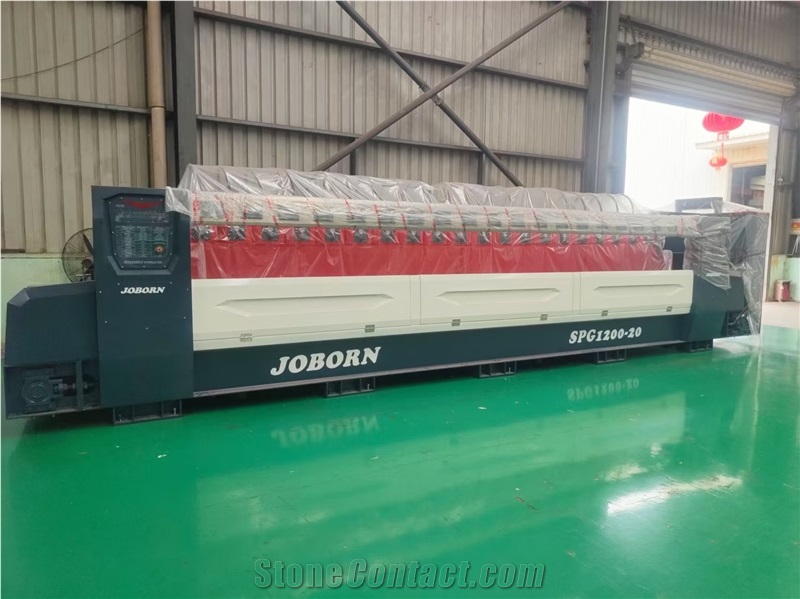

SPG1200-12/16/20/24 Slab Polishing Line Machine

Name: SPG1200-12/16/20/24 Slab Polishing Line Machine
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 8107
Price: 45000 USD
Availability: InStock

FOB Price:$45000-65000

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine

Usage: Granite, Marble, Limestone

After-Sale

Lead Time: 30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Automatic Stone Slab Line Polishing Machine For Granite Marble

12 Heads Frankfurt Abrasive Head Marble Slab Polishing Machine

TJKD-16M-2100 Marble Polishing Machine(2100) - Slab Polishing Line Machine

Automatic Polishing Machine (ZDMJ-20C)

XTJ-M9 G9 Second Change Grinding Head Line Machine

Product Detail
Company Profile

Overview
Components
Video

Machinery Function Features

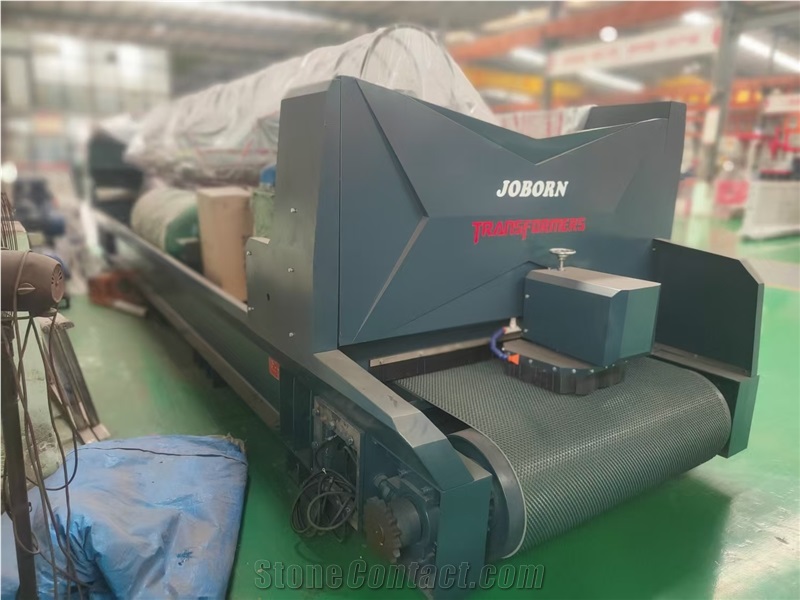

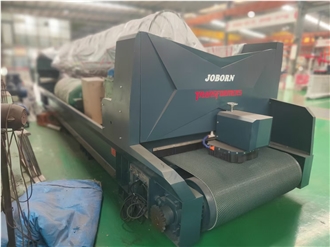

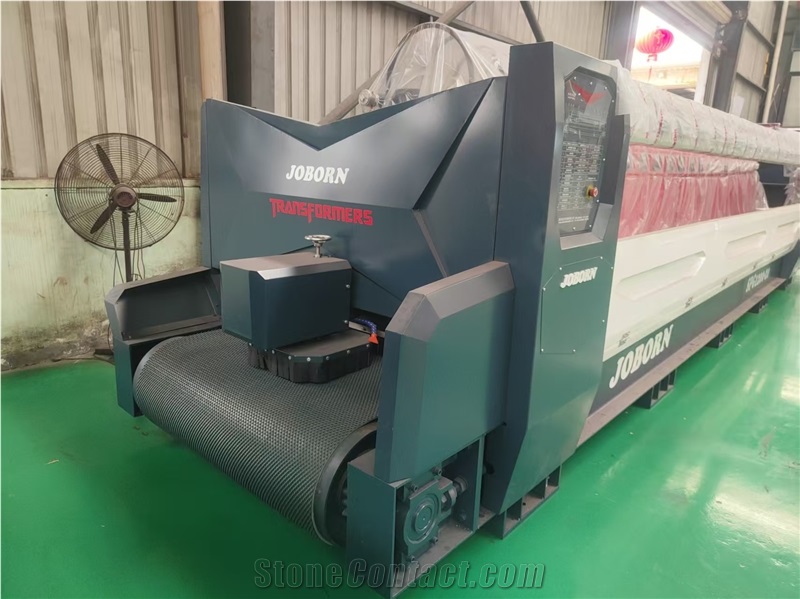

1.Special distrybuting type flexible polinshing head; 2.Side beam heavy type roller; 3.Taiwan famous brand pneumatic components; 4.Patented spindle structure; 5.Humanized human-computer interaction interface; 6.Imported and domestic premium brand electric components; 7.Plate shape detecting deivce; 8.Automatic lubrication system; 9.Roller table(optional); 10.Turnover roller table(optional);

Technical Data

Parameters	Unit	SPG1200-12	SPG1200-16	SPG1200-20	SPG1200-24
Number of polishing heads/honing units	pcs	12	16	20	24
Machine overall height	mm	3300	3300	3300	3300
Machine overall length	mm	7000	8200	9500	10800
Cooling water requirement	m3/h	13	18	22	27
Approx. Weight	Kg	12000	16000	20000	24000
Total installed electrical power	kw	7.5	7.5	7.5	7.5
Machine overall width	mm	2200	2200	2200	2200

Software

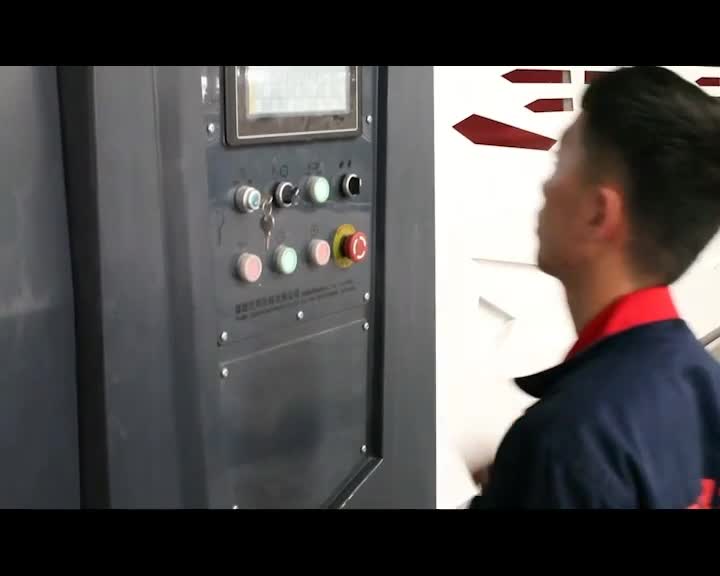

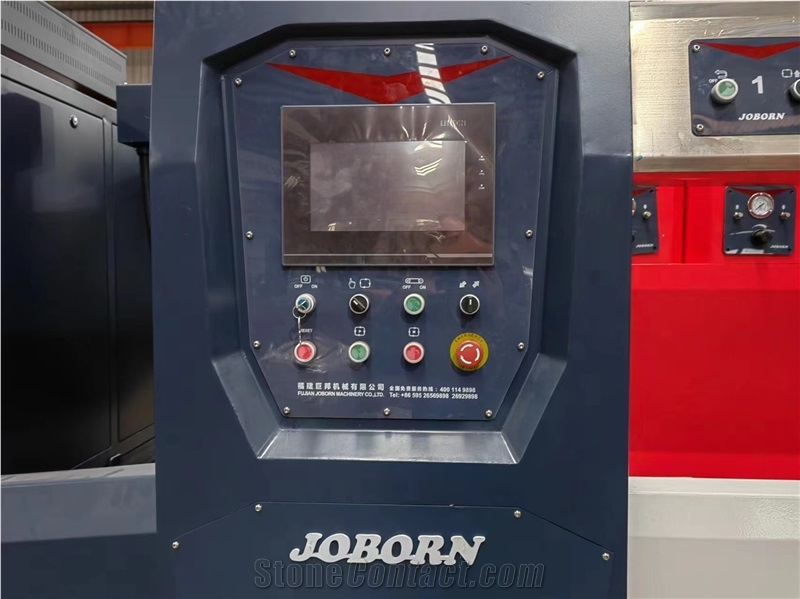

PLC intelligent control system is adopted, and man-machine dialogue is carried out through LCD touch screen to realize intelligent control.

Work Example

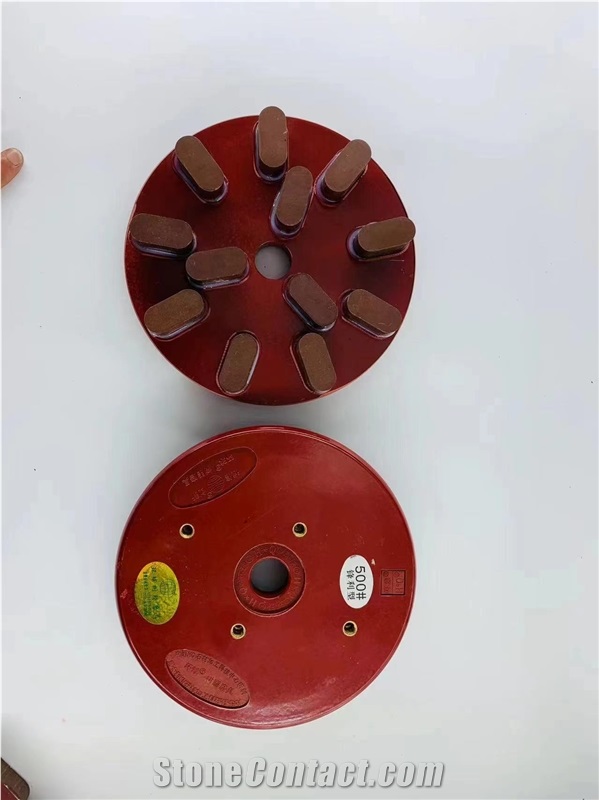

The grinding head is pneumatic lifting, the maximum processing height of the grinding head is 50mm, the grinding head adopts uniform elastic grinding head; Linear rolling guide rails are adopted for moving forward and backward.
Adopt independent patented technology of spindle structure, plate shape detection device, automatic lubrication system;
PLC computer operating system, LCD touch screen (10 inches) using Chinese and English operation interface, the use of imported and domestic first-line brands of electrical components, air components of Taiwan Yadeke; The main motor of grinding head is 7.5kW-4P/11kW-4P/15kW-4P;
