Chain Saw Machine Series 50.81

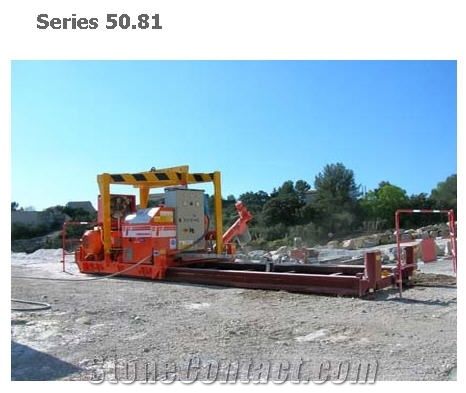

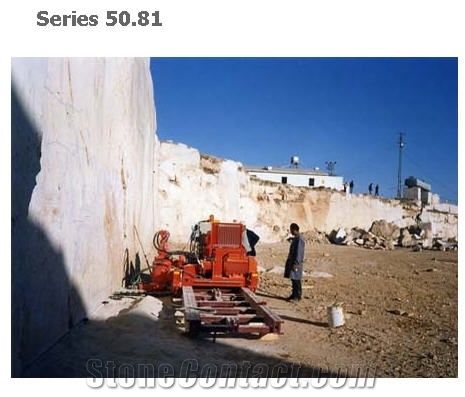

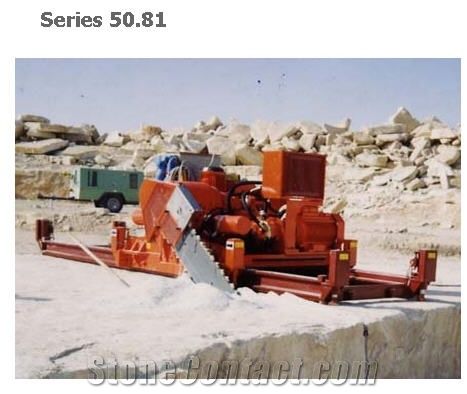

CHAIN SAW MACHINE Series 50.81 The chain saw machine mod. 50.81 is the first chain saw machine ever produced by Fantini company. It is used in medium soft stone quarries, such as travertine, and can make cut up to 3,40 m. of length. In hard marble and stone the cutting length is up to 2,80 m. After so many years of production the chain saw is very reliable and it can be equipped with all the optionals of Fantini cutting technology. The chain saw makes horizontal and vertical cut without water. The chain saw is equipped with: - air cooling hydraulic circuit; - hydraulic pistons for fast levelling of the chain saw; - remote push button panel (wire or remote control) Modular rail version (RA/P) The chain saw is supplied with 3 rails of 3 m of length each One rail version (BU): the chain saw has one translating rail of 5.90 mt controlled by the push button panel. It allows a fast longitudinal replacement without the help of lifting devices. - Power: 50 Kw - Weight: 5.200-5.700 Kg - Arm rotation: 180° - Chain speed: 0-0,7 mt/sec - Width of cut: 38 mm - Useful cutting depth: 3,40 mt max - Cutting speed: 0-25 cm/min * the technical features may have some changes
