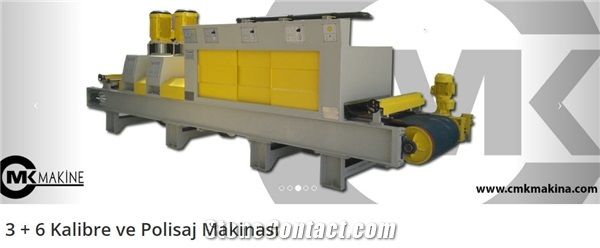

3+6 Calibrated and Polishing Machine

Name: 3+6 Calibrated and Polishing Machine
Brand: CMK Makine
SKU: 2374
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine

Usage: Marble, Limestone, Onyx, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

CMK Makine

CMK Makine

Turkey

Eatablished :Nov 04,2013

Main Product:

STONE CUTTING MACHINE, STONE POLISHING MACHINE, STONE BREAKING MACHINE, STONE PROFILLING MACHINE|

Contact supplier

Start Order

You may also like

HLYD 1200/3 - HLYD 1600/4 -HLYD 2000/6 Multi-Disc Calibrating Stone for Slab Polishing Line

JOBORN Stone Continuous Calibrating Leveling Thickness Fixing Machine

SWING TYPE THICKNESS Calibrating Machine OF LARGE & WIDE SLAB

TJPGD-150 Calibration Machine- Calibrating Machine

Two Heads Calibrating Machine

Product Detail
Company Profile

Overview

Machinery Function Features

Kalibre Kafa sayısı 3 Polisaj Kafa Sayısı 6 Kalibre Motor Gücü ( 2 X 22 kW ) + (1 X 18,5 kW ) Kalibre Aşağı Yukarı Kontrol Motor Gücü 3 X 0,37 kW Polisaj Motor gücü 6 X 7,5 Kw Kalibre Diski Çapı 700 mm Polisaj Diski Çapı 700 mm Bant genişliği 800 mm Çalışma genişliği 650 mm Çalışma Kalınlığı 10 – 60 mm Konveyor ( Bant) Motor Gücü 1,5 kW Konveyor ( Bant) Hızı 2 – 4 m/min. Fan motor Gücü 1,1 kW Kumanda Sistemi PLC Toplam Elektrik Gücü 110,5 kW Toplam Su Tüketimi 360 lt/min Toplam Hava Tüketimi 270 lt/min Ebatlar (En / Boy / Yükseklik 1820 / 1800 / 11350

Technical Data

Parameters	Unit	CMK 3+6
Calibrating spindle rotation motor power	kw	3 X 0,37
Total power installed	kw	110,5
Machine overall height	mm	1800
Maximum workable width	mm	800 (650)
Power of each calibrating unit	kw	2X22 kW + 1X18,5 kW
Number of dressing units	nr	6
Compressed air	NL/min	270
Maximum workable thickness	mm	60
Diameter of calibrating tool(abrasive)	mm	700
Minimum workable thickness	mm	10
Diameter of calibrating head	mm	700
Machine overall length	mm	11350
Power of each dressing unit	kw	6 X 7,5
Number of calibrating units	nr	3
Water requirement	L/min	360
Conveyor belt power	kw	1.5
Machine overall width	mm	1820
