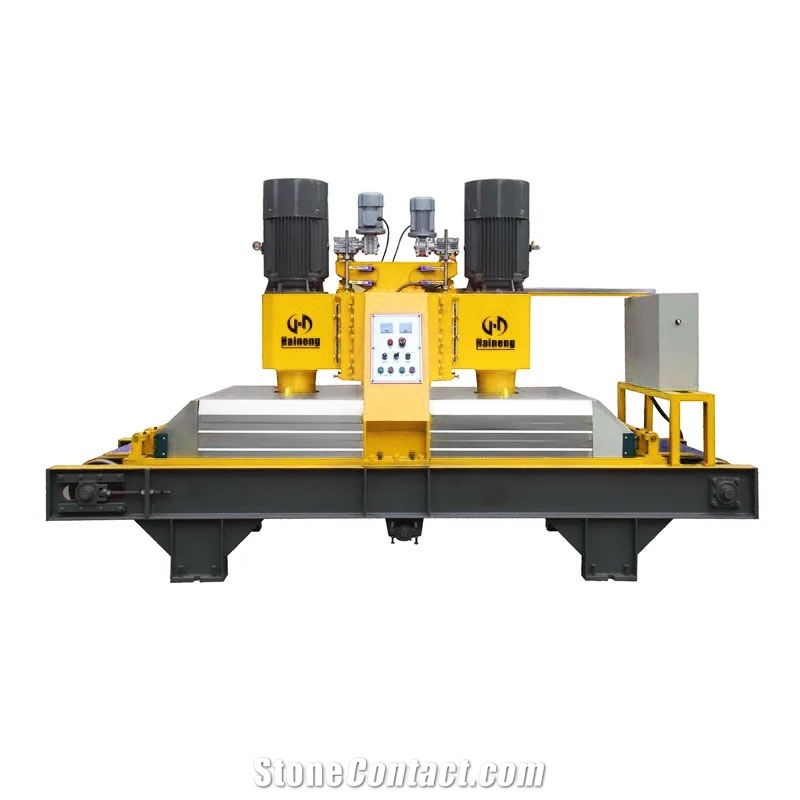

Two Heads Calibrating Machine
FOB Price:$12500-13500
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features

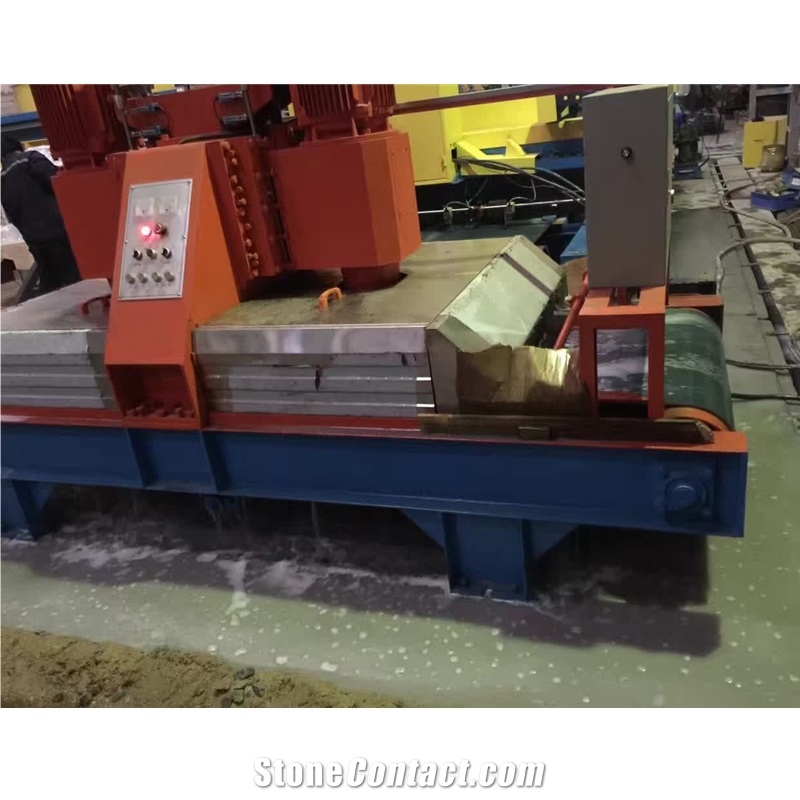

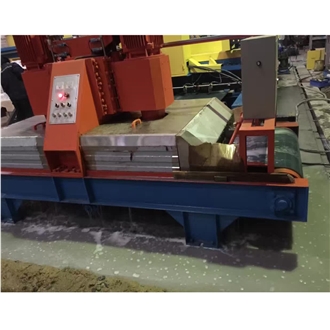

This machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
Technical Data
Parameters |
Unit |
ANH-2-600 |
ANH-2-800 |
Total power |
kw |
27.49 |
27.49 |
Water requirement |
m3/h |
2 |
2 |
Power of main motor |
kw |
11kw/2pcs |
11kw/2pcs |
Machine overall height |
mm |
1800 |
2000 |
Machine overall length |
mm |
3410 |
3750 |
Maximum workable width |
mm |
600 |
800 |
Machine overall width |
mm |
1300 |
1300 |
Speed of conveyor belt |
m/min |
0.4-3 |
0.4-3 |
Maximum workable thickness |
mm |
80 |
80 |
Approx. Weight |
Kg |
2600 |
2700 |

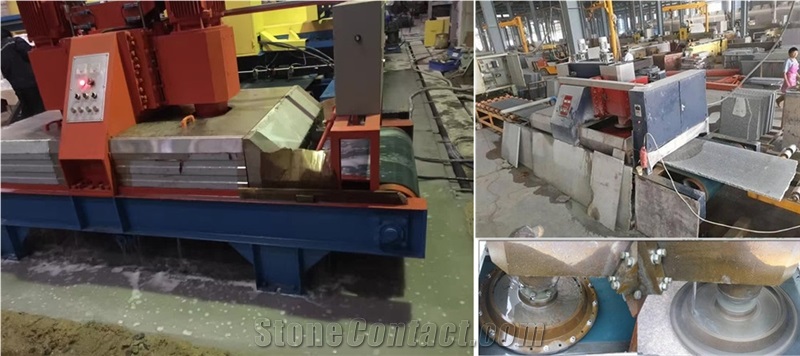

Processed Stone Photos
Components
-
limit switch
¥Payment Required
Consumables
-
Diamond Segments
Video
Install Video
Operation Video
