JOBORN Stone Continuous Calibrating Leveling Thickness Fixing Machine
FOB Price:$18000-22000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCalibrating Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25~30 days after prepayment received
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jul 28,2015
Main Product:
Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|
Machinery Function Features

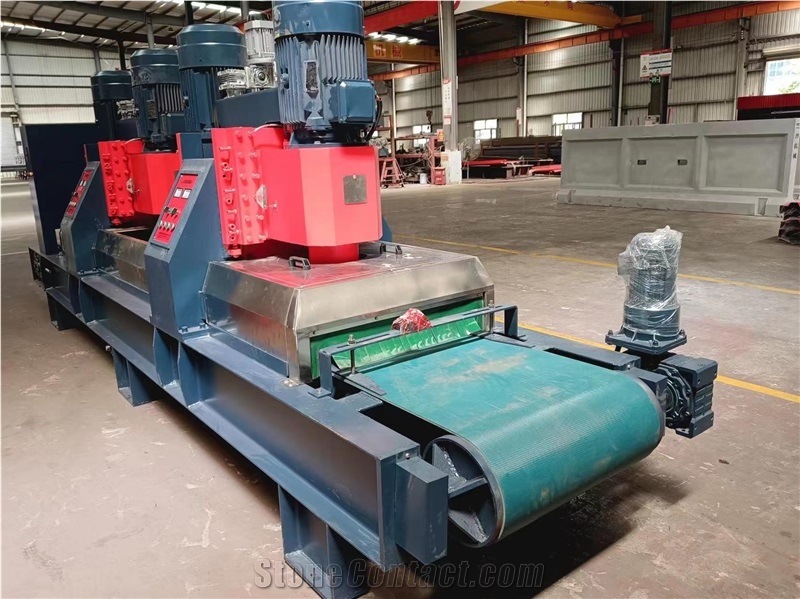

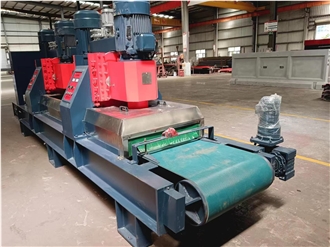

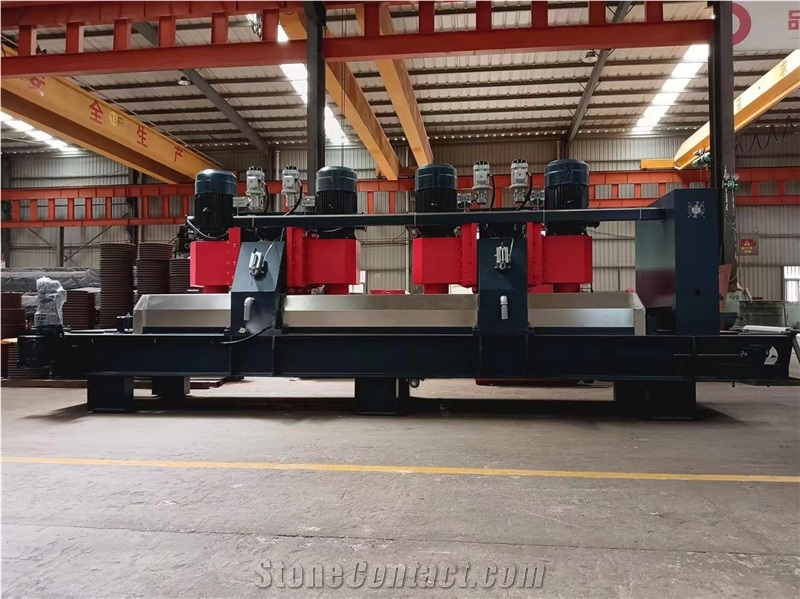

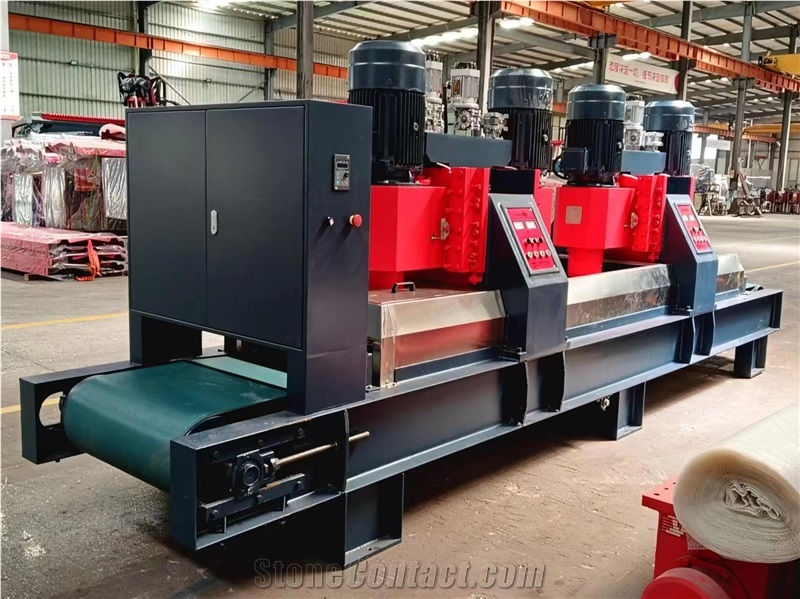

SAC Series Stone Continuous Calibrating Machine. This series machine adopts the structure of Long men type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
Technical Data
Parameters |
Unit |
SAC-880 |
SAC-1080 |
SAC-1280 |
Number of calibrating units |
nr |
2/4/6 |
2/4/6 |
2/4/6 |
Maximum workable width |
mm |
850 |
1050 |
1250 |
Belt advancement speed |
mm/min |
0~3500 |
0~3500 |
0~3500 |
Machine overall height |
mm |
2100 |
2400 |
2400 |
Machine overall width |
mm |
1600 |
2000 |
2200 |
Maximum workable thickness |
mm |
60 |
60 |
60 |
Minimum workable thickness |
mm |
10 |
10 |
10 |
Diameter of calibrating head |
mm |
880 |
1080 |
1280 |
Power of each calibrating unit |
kw |
18.5 |
22 |
22 |
Water requirement |
m3/h |
8/16/24 |
8/16/24 |
8/16/24 |
Sound pressure level |
dB |
80 |
80 |
80 |
Standard voltage |
Volt |
3-380V |
3-380V |
3-380V |
Z axis stroke |
mm |
90 |
90 |
90 |
Machine overall length |
mm |
4400/6500/8700 |
4900/7300/9900 |
5500/8500/11400 |
Maximum workable length |
mm |
3000 |
3000 |
3000 |

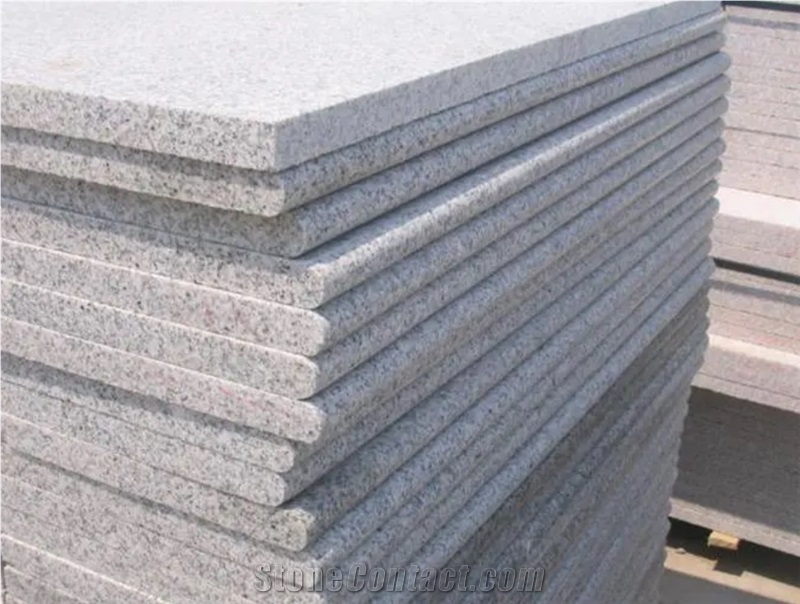

Processed Stone Photos

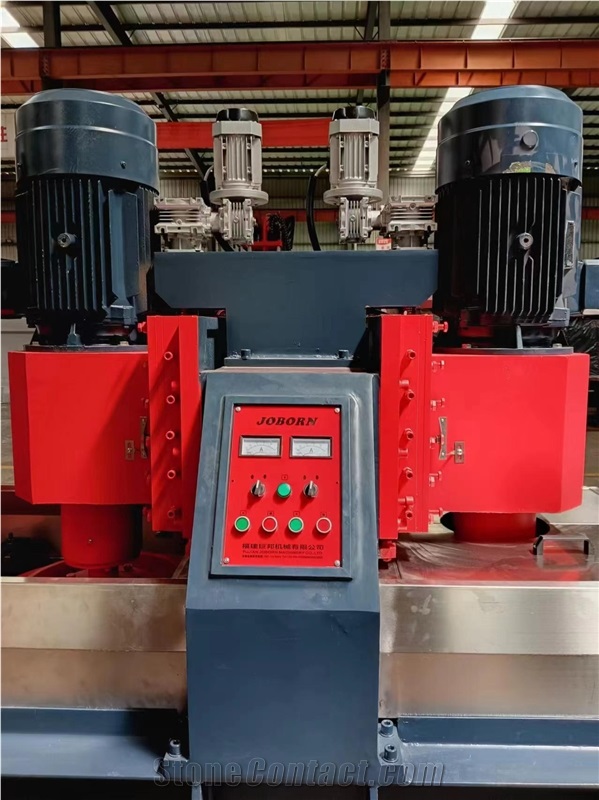

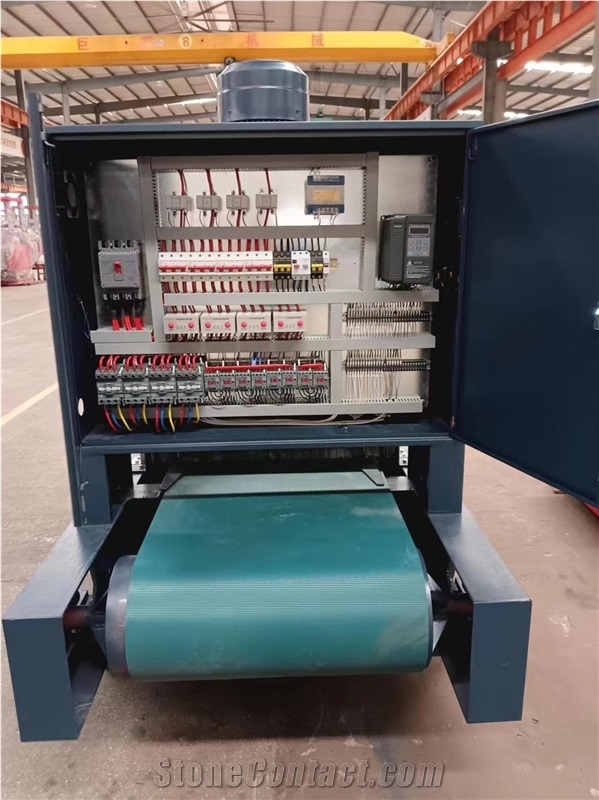

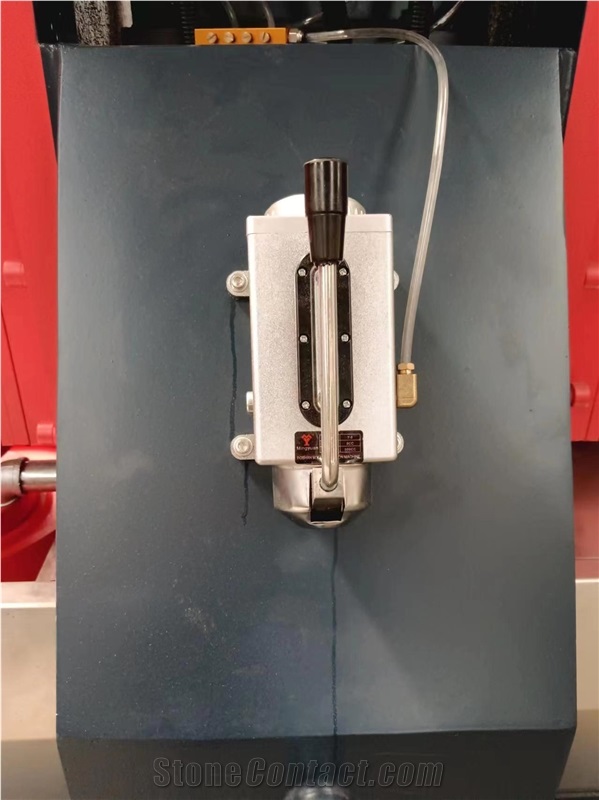

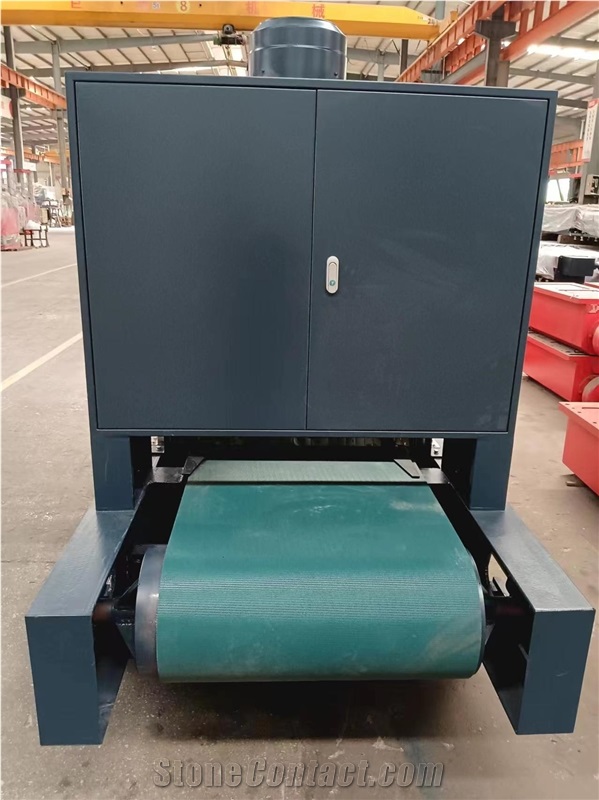

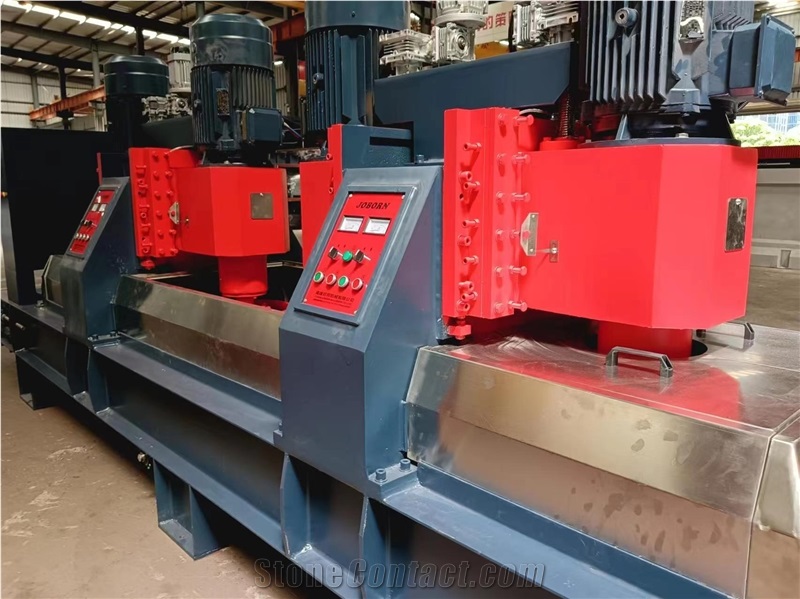

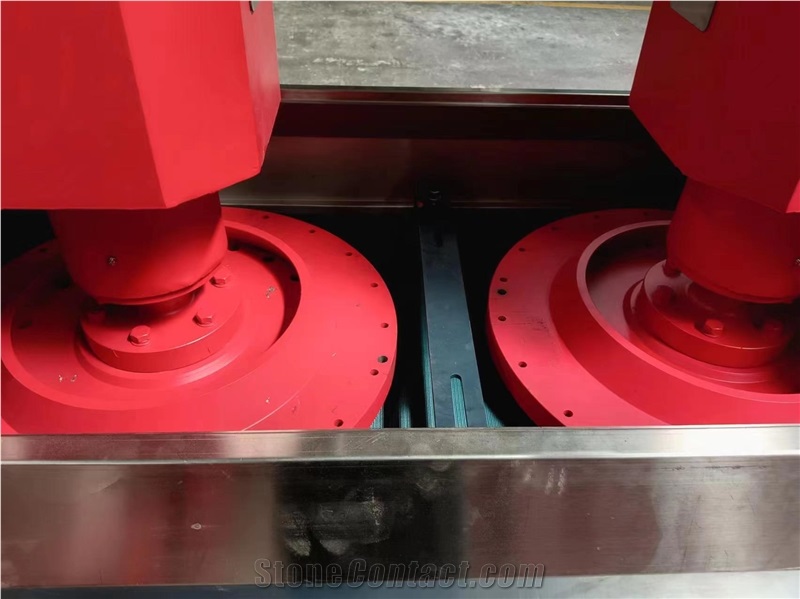

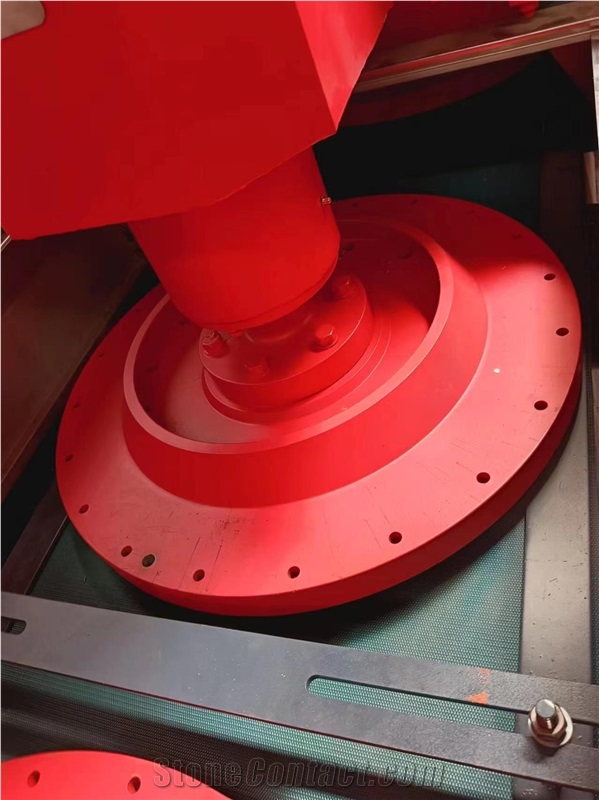

Components

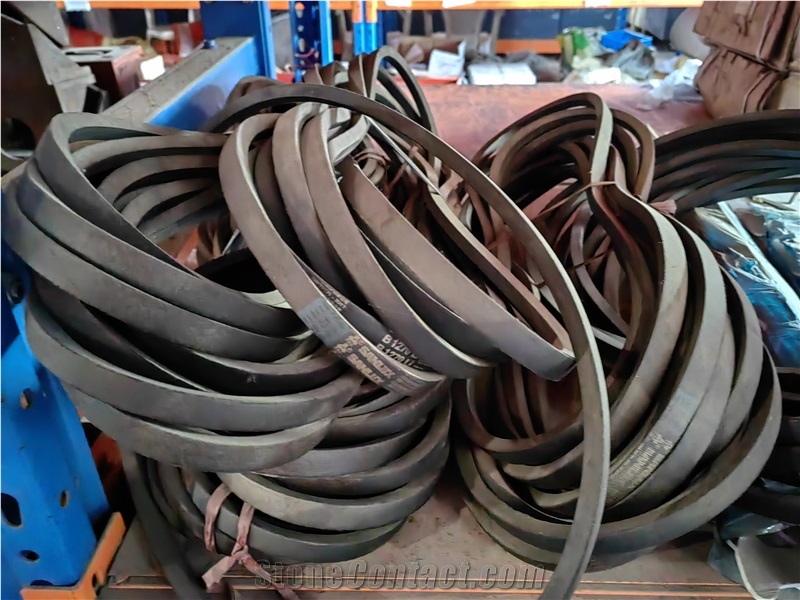

Consumables
Video
Install Video
