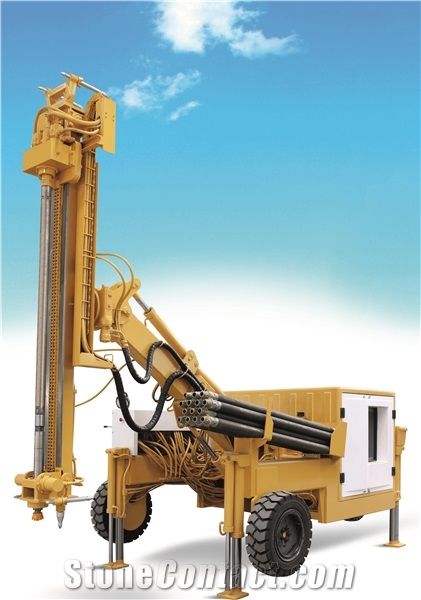

Mobile Drilling Machine Y325- Quarry Drilling Machine

Name: Mobile Drilling Machine Y325- Quarry Drilling Machine
Brand: Hidrobarsan Mermer Makineleri San. ve Tic. Ltd. Sti.
SKU: 2634
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Quarry MachinesQuarry Drilling MachineHorizontal Pneumatic Mobile Rock Drill

Usage: Granite, Marble, Limestone, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Hidrobarsan Mermer Makineleri San. ve Tic. Ltd. Sti.

HİDROBARSAN

Turkey

Eatablished :Dec 30,2000

Main Product:

Chainsaw Machine, Drilling Machine, Diamond Wire Cutting Machine, Block Sizing Machine, Horizontal Block Sizin Machine, Diamond Wire With Bridge|

Contact supplier

Start Order

You may also like

Rock Samples Mining Core Drilling Machine

Perfora Handydrill 100VH Quarry hydraulic drilling mobile unit

Horizontal Pneumatic Mobile Rock Drill Machine

Tracked Marble Drilling Rig

Pneumatic Mobile Rock Drill- One Hammer Mobile Rock Drill PD-28B

Product Detail
Company Profile

Overview

Machinery Function Features

Description: Diesel Engine: 18 Hp ( Antor) Electrical Motor: 75kw Hydraulic Pump: Piston Type Motion: 3 wheel drive Stem Length: 2 meters. Air Prussure: 10 bar and above ( special manufacturing) Drilling Speed: 0,25-0,5 m/min Drilling Rotation: Horizantal and Vertical Weight: 4400 kg Width : 1950 mm Length: 6000 mm Heigth: 1350 mm Notes: You can move in the marble quarries easily wherever you want and you can drill. It can move until 30° ramps angle.

Technical Data

Parameters	Unit	Y325
Overall Width	mm	1950
Air pressure	bar	up to 10
Overall Height	mm	1350
Overall Length	mm	6000
Diesel Engine	HP	18 Hp ( Antor)
Total Weight	Kg	4400
Electrical Motor	kW	75
Drilling speed	m/min	0,25-0,5
Starting Drill Stell	m	2
Hole Diameter	mm	90-100
