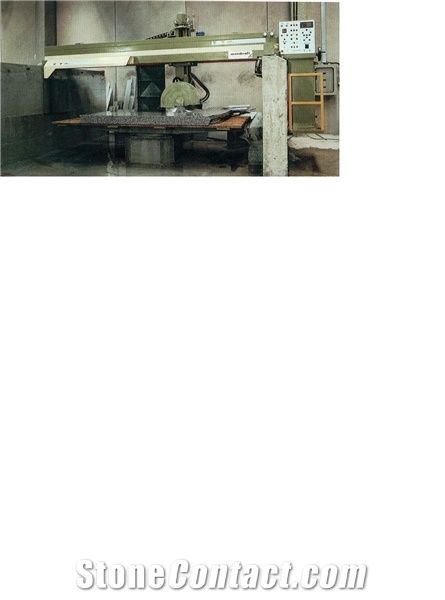

Automatic bridge cutting machine for marble and granite type MKP 35 DIGITAL

Automatic bridge cutting machine for marble and granite type “MKP 35 DIGITAL”. Machine complete with: - Spindle motor HP 24 (two speed type) prearranged to hold n° 1 Diamond disk diam. min. 400 mm. and max. 700 mm. for granite, or 400 mm. and max.1000 mm. disk for marble processing. - Disk guard and outfits to fit 500 mm. disk. - Max. vertical cutting depth on marble slabs 300 mm. with disk 1000 mm. - Disk lock flange 250 mm. - Steel spindle axle 60 mm. - Automatic displacement of the bridge and automatic lifting lowering of disk. - digital display to select different cutting width sizes and number of Cuts with device to memorize the disk thickness and the bridge inertial displacement. - Device to cut pack of granite or marble slabs or a thick one by vertical step-cuttings, and inclined cuts in a single pass. - Manual rotating cast-iron worktable with locking stops at 0°- 45°- 90° -135°. - Manual slanting spindle to make cuts from 0° to 90°. - Max cutting length 3500 mm. with disk 500 mm. - Bridge, carriage, spindle and worktable frames, cast-iron made totally.
