Best 5+1 Axis Granite Countertop Cutting Stone CNC Bridge Saw For Sale

Name: Best 5+1 Axis Granite Countertop Cutting Stone CNC Bridge Saw For Sale
Brand: Fujian Province Hualong Machinery Co.,Ltd
SKU: 8246
Price: 46000 USD
Availability: InStock

FOB Price:$46000-49000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 35-45 days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Port: Fuzhou Port- China

Delivery Details: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,Express Delivery

Payment :

Supplier

Fujian Province Hualong Machinery Co.,Ltd

Hualong

China level 3YR

Eatablished :Apr 17,1997

Main Product:

Stone Quarry Machine, Block Cutting Machine, Stone Polishing Machine, Slab Cutting Machine , Stone Engraving Machine, Stone Cnc Machine|

Contact supplier

Start Order

Product Overview

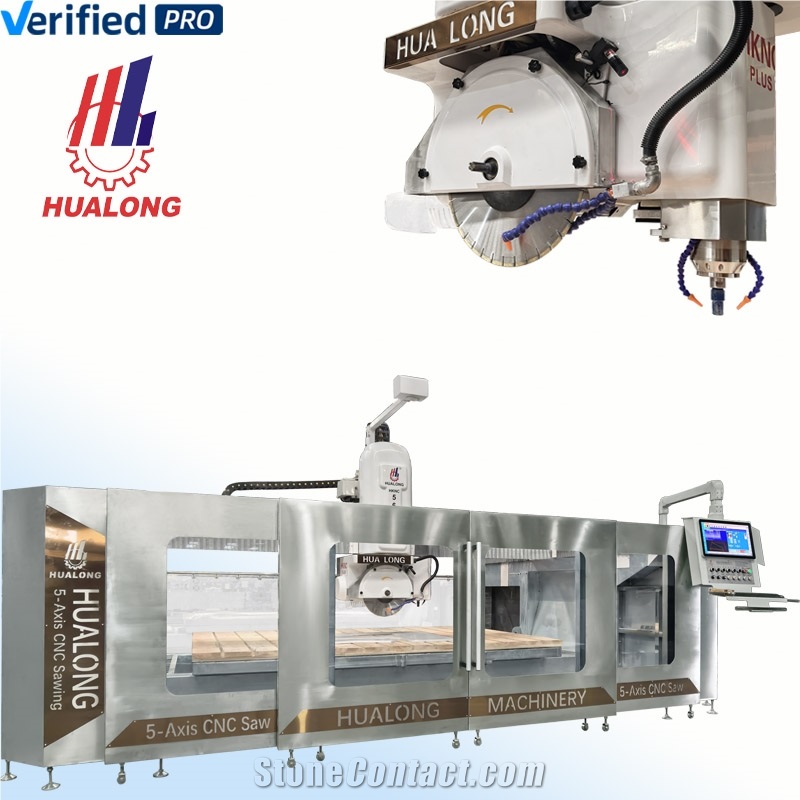

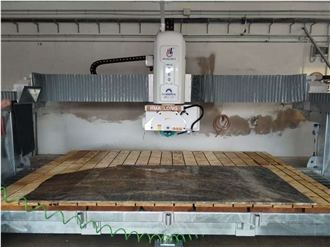

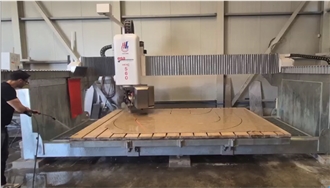

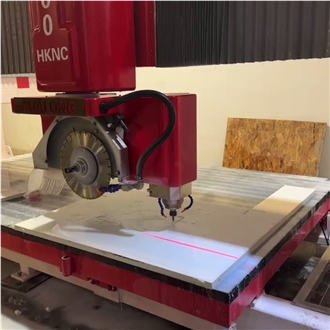

The HKNC-560 Plus is a high-precision, 5+1-axis synchronized CNC stone processing machine engineered for workshops seeking versatility, efficiency, and cost-effectiveness. Designed for cutting, shaping, and engraving natural/synthetic stone, ceramics, and composites, it integrates advanced Italian ESA CNC technology with user-centric features to streamline complex tasks like curved contour cutting, vertical/horizontal machining, and precision engraving.

Key Features & Advantages

5-Axis Precision Control

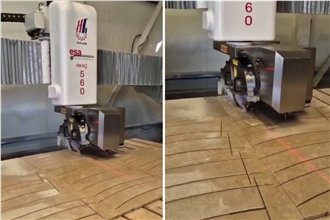

- Synchronized 5-axis interpolation (Italian ESA CNC system) enables multi-directional chamfering, angled cuts (0°-360° blade rotation, 90° tilt), and 3D engraving.

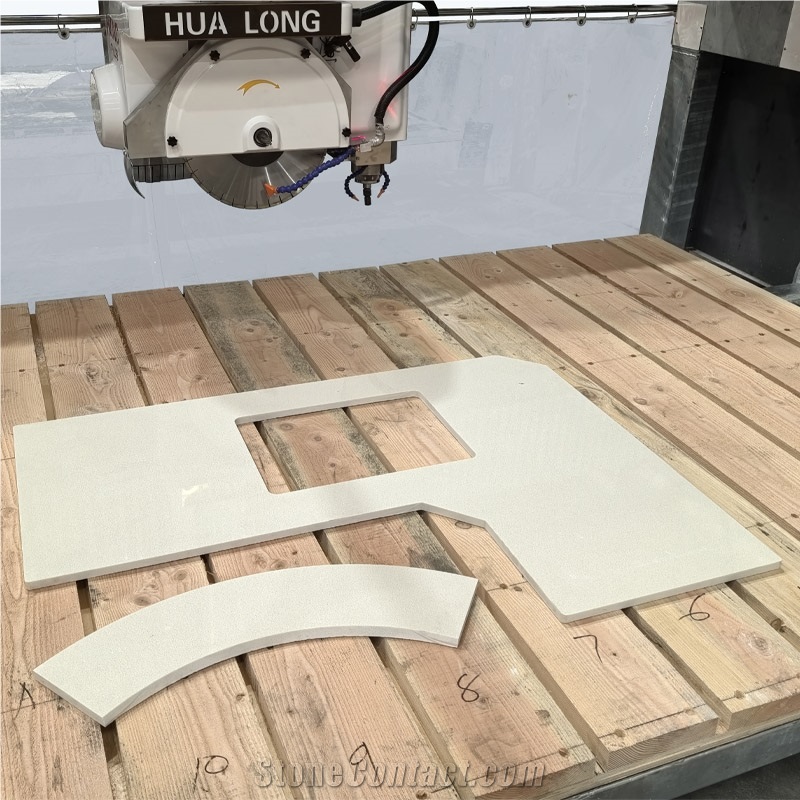

- Ideal for intricate designs, sink cutouts, and vein-matching applications.
Enhanced Efficiency
- Nesting Optimization : Manual/automatic slab layout minimizes material waste.

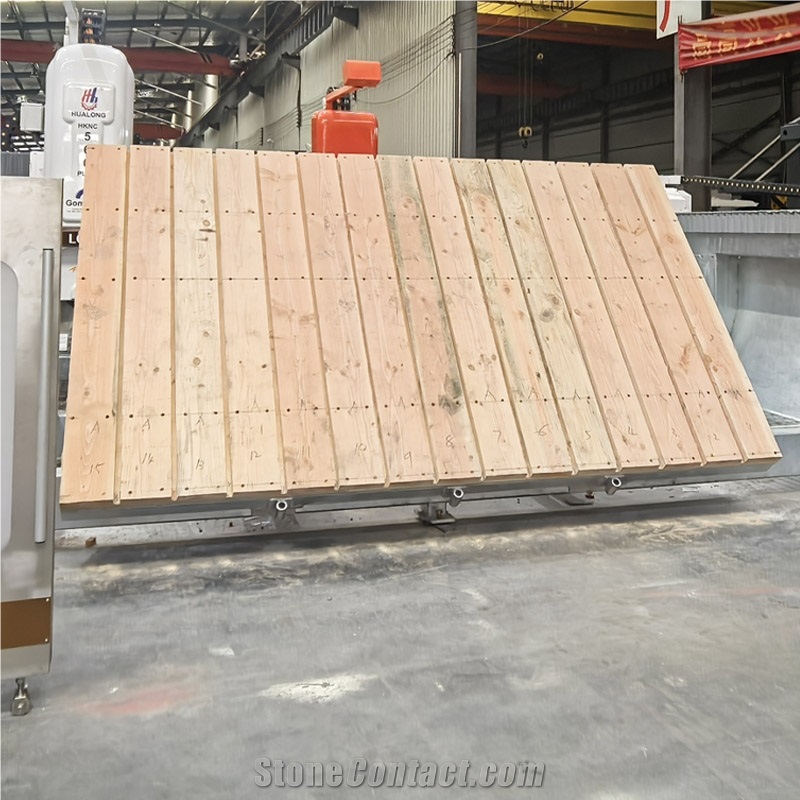

- Tiltable Worktable (85°) simplifies slab loading/unloading and supports angled machining.
User-Friendly Operation

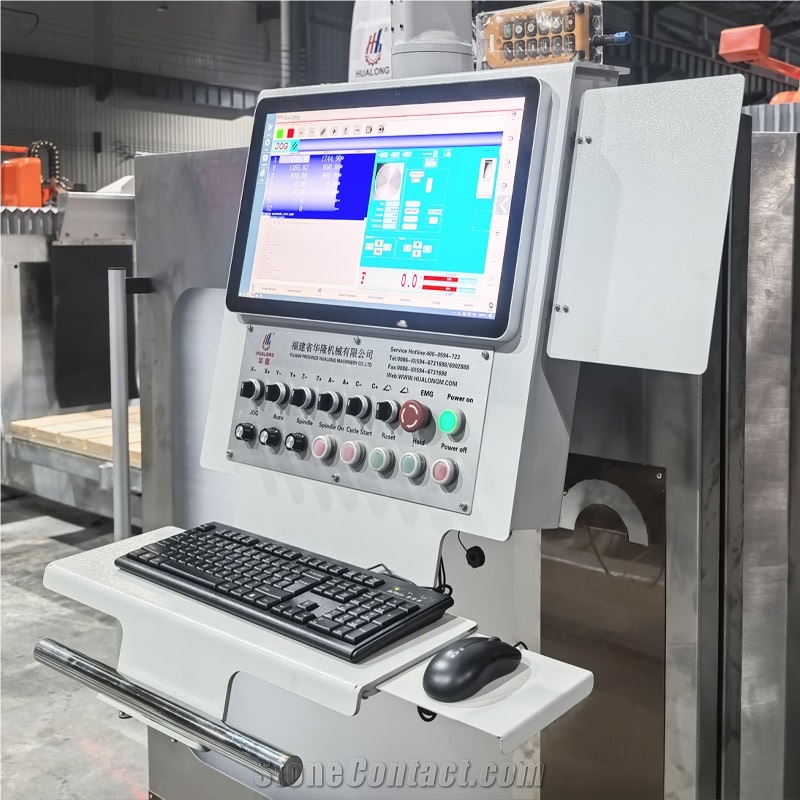

- 21.5" color touchscreen interface for intuitive programming and real-time adjustments.
- Compatibility with Italian Zues CAD/CAM software ensures seamless design-to-cut workflows.
Flexible Tooling

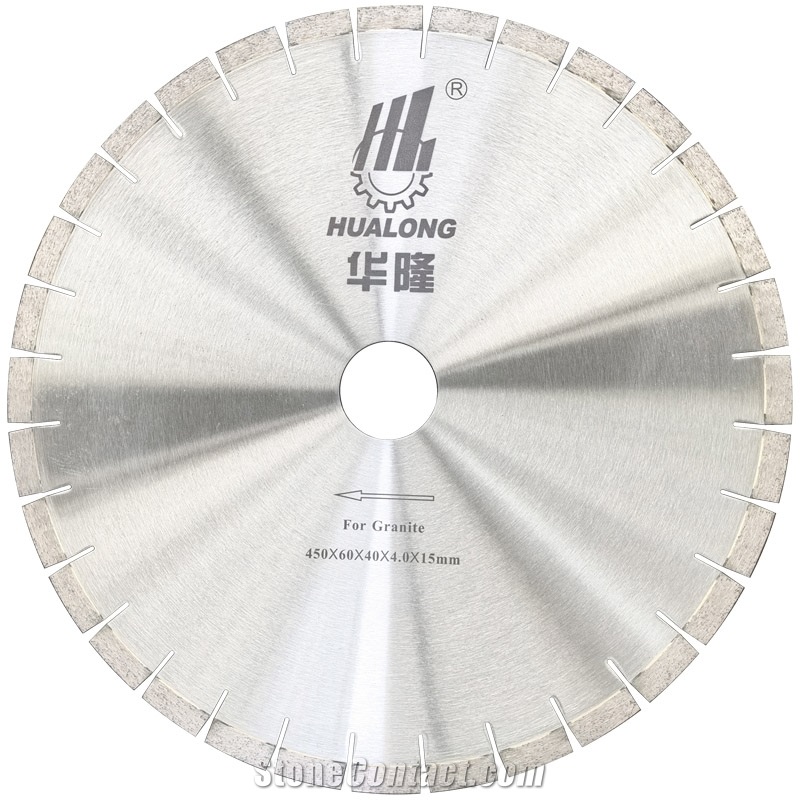

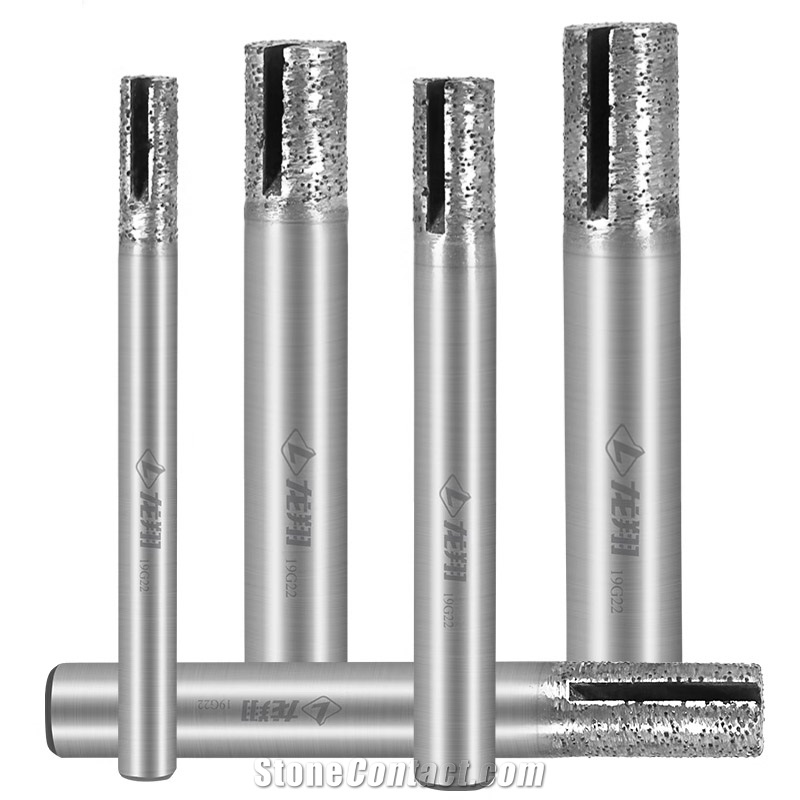

- Supports disc blades, core drills, end mills, and excavation wheels for diverse operations.
- Optional electric engraving spindle for high-detail 2D/3D carving.
Advanced Optional Modules

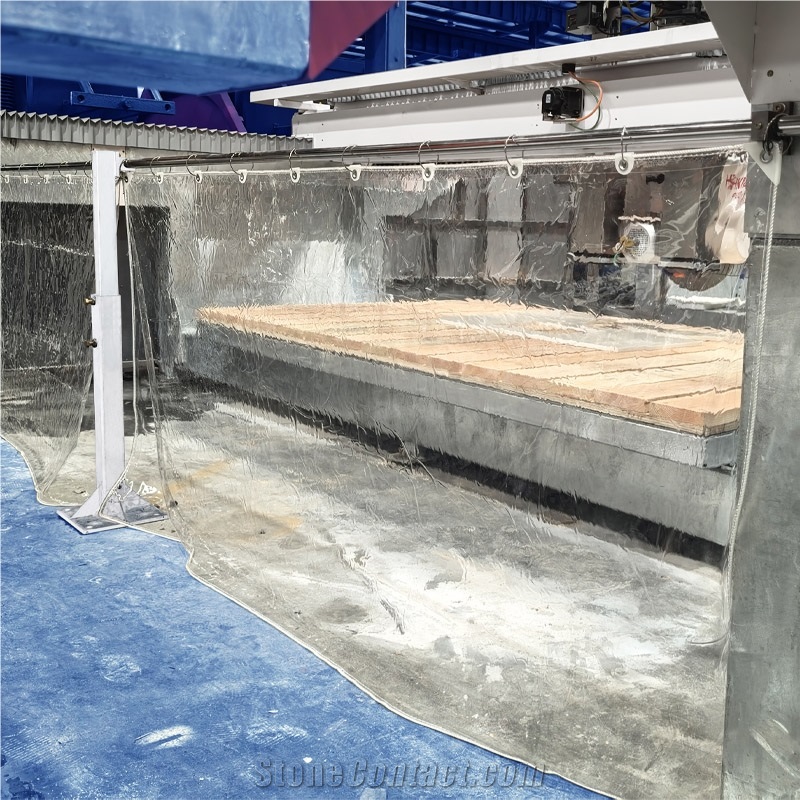

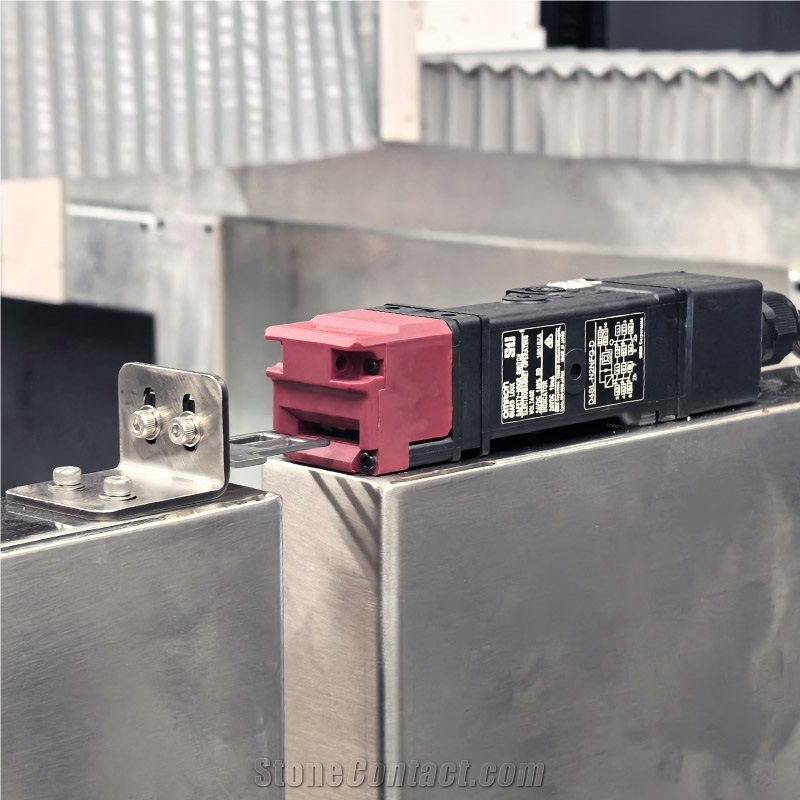

- Front Safety Doors : Protect against splashes and keeping the operator safe.
- Retractable Electro-spindle: Adjustable up to 24000 RPMs make non-linear cuts up to 50% faster.

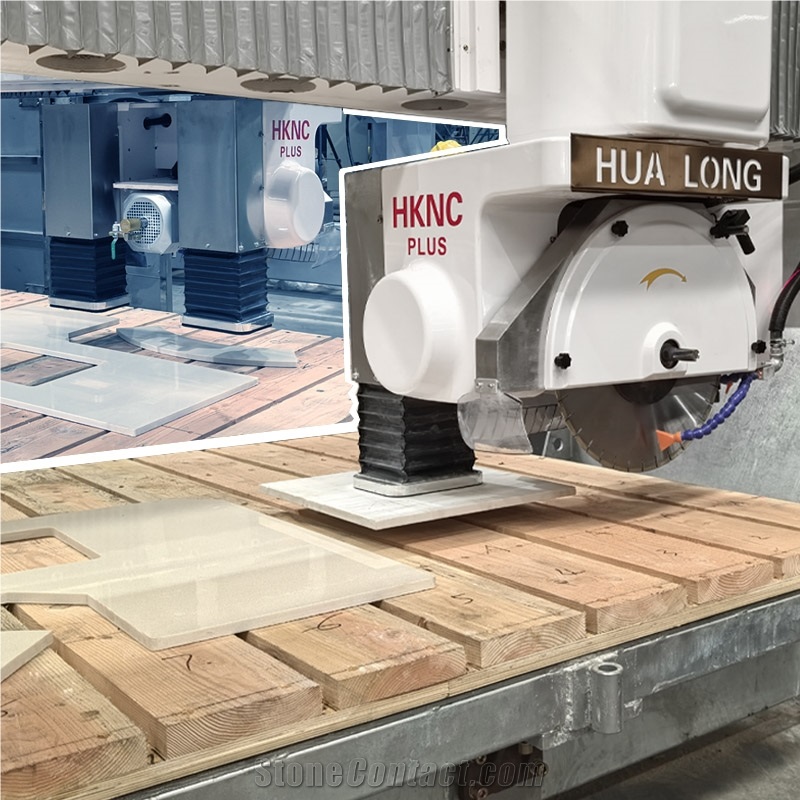

- Vacuum Manipulator : Automates slab handling for improved productivity.
- Vein-Match System : Ensures seamless pattern alignment at project seams.
- Slab Thickness Probe & Tool Measurement : Enhances precision and reduces setup time.

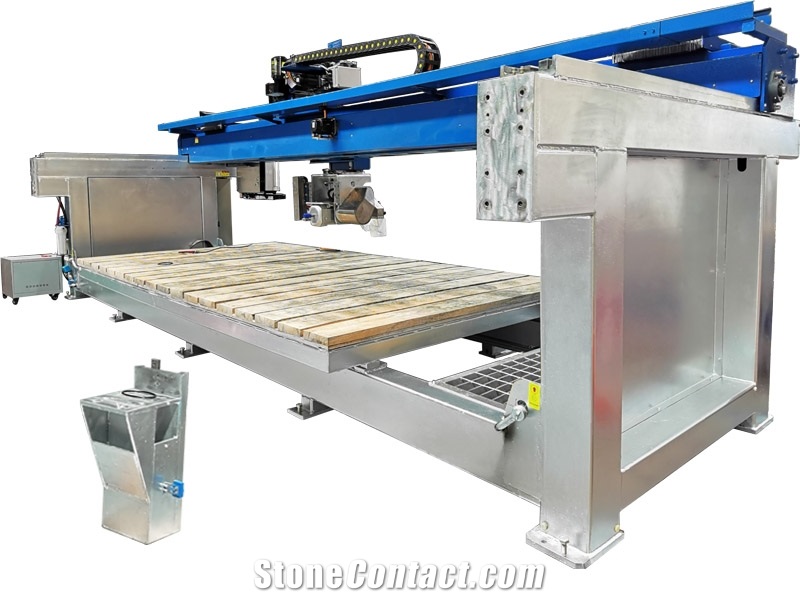

- Galvanized Frame: Prevent rust and protect your investment.

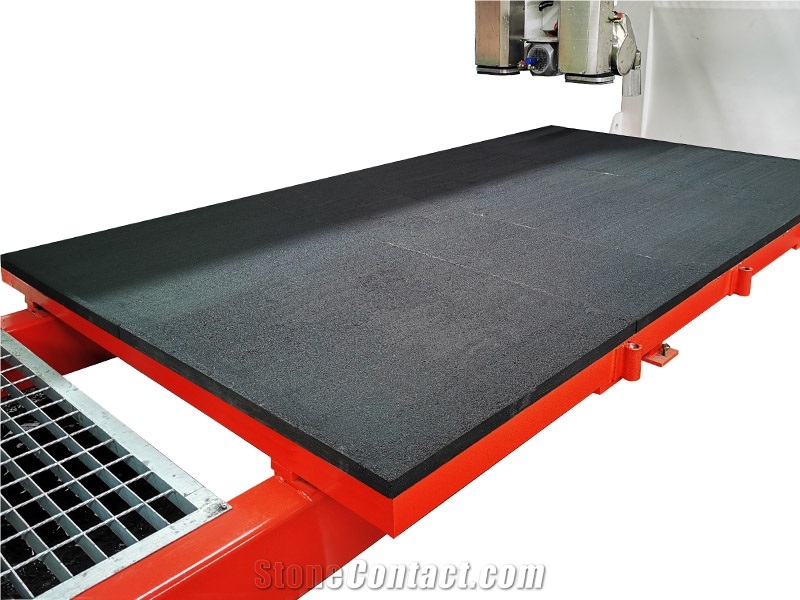

- Rubber Table: Shock absorption, waterproof and no deformation.

Why Choose HKNC-560 Plus?

Cost-Effective Innovation : Maximizes ROI with minimal investment through reduced labor and material waste.
Future-Proof Design : Modular upgrades (e.g., retractable spindle, defect-avoidance photo slab) adapt to evolving workshop needs.

Ideal for: Countertop fabrication, architectural stonework, and custom ceramic engraving.

Technical Data

Parameters	Unit	HKNC-560 Plus
Dimensions of the work table(L×W)	mm	3500x2100

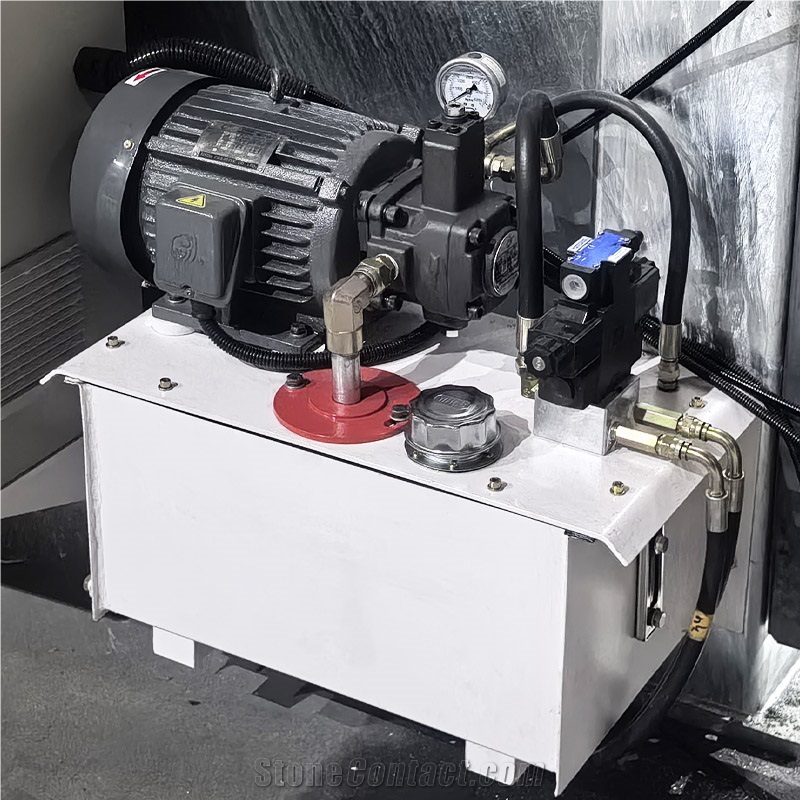

Hydraulic station motor power	kw	2.2
Bridge transversal stroke(Y axis travel)	mm	2100
Z-axis working travel vertical cutting spindles	mm	0.85
Max. liftable weight with all the vacuum cups activated	Kg	200
C axis blade rotation	°	360
Tools holder head inclination(A axis blade rotation)	°	90
Disc motor power	kw	18.5

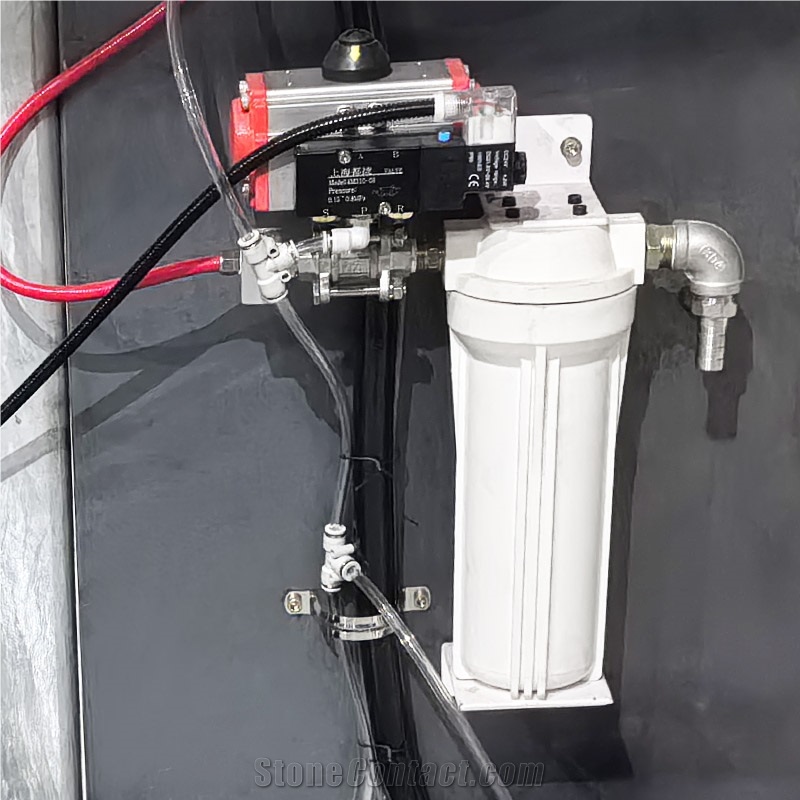

Cooling water requirement(1.5 bar min. pressure)	L/min	33
Machine length	mm	3500

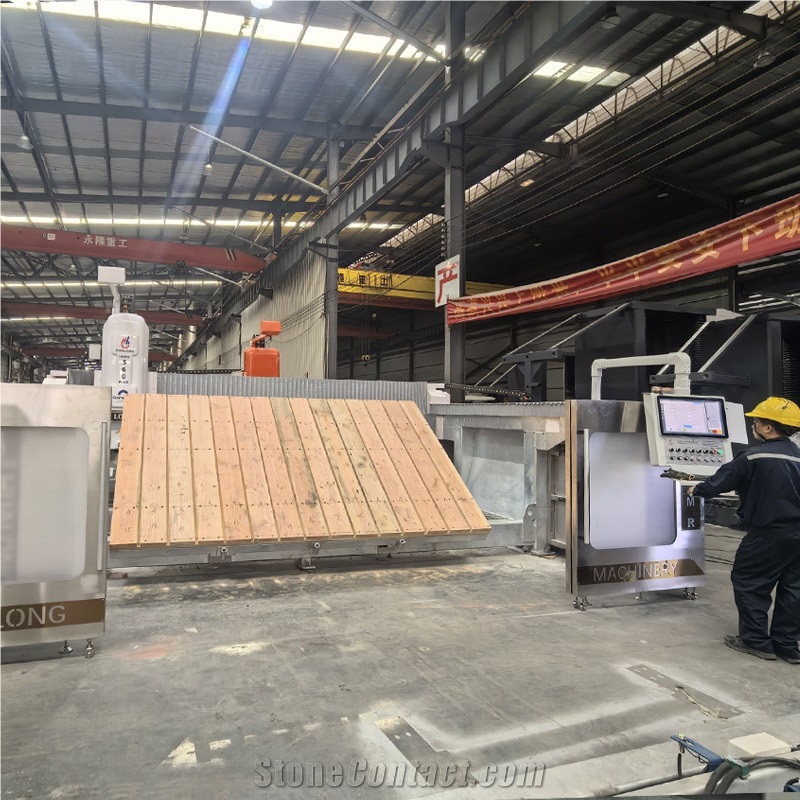

Worktable turn-over degree	°	85
Disc diameter	mm	400-560
Retractable electric-spindle power	kw	5.5
Crossbeam motor power	kw	1.1
Vertical cutting spindles motor power	kw	2
Head raising/lowering stroke(Z axis travel)	mm	300
Machine width	mm	2100
Max. cutting depth	mm	150
Horizontal stroke(X axis travel)	mm	3500

Software

Slab cutting handling
2D CAD tools
Import 2D CAD files in DXF, DWG formats, etc.
Geometric macros
Automatic or manual nesting of shapes on slab
Disk table management
Calculation of optimized trajectories for the disk cutting
Automatic rest machining to complete the cuts using a cut-drill/mill tool or a waterjet tool
Movement of the slab pieces through the suction cups manipulator

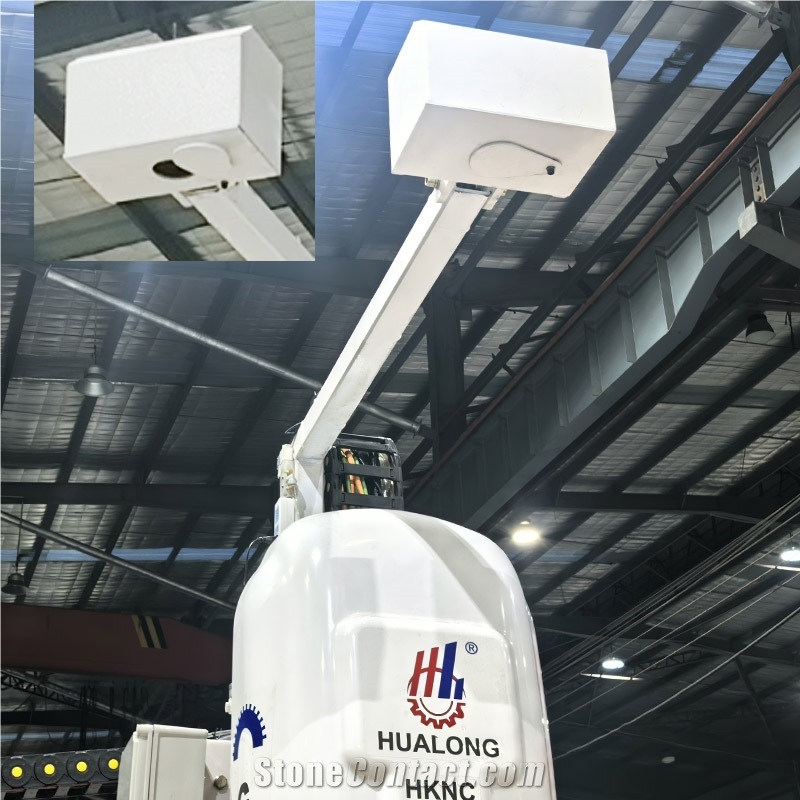

Acquisition and correction of the slab image through a camera
Solid simulation with material removal and collisions control
Management of processing reports
