YTQQ Mono-block Bridge Type Tile, Strip Cutting Machine

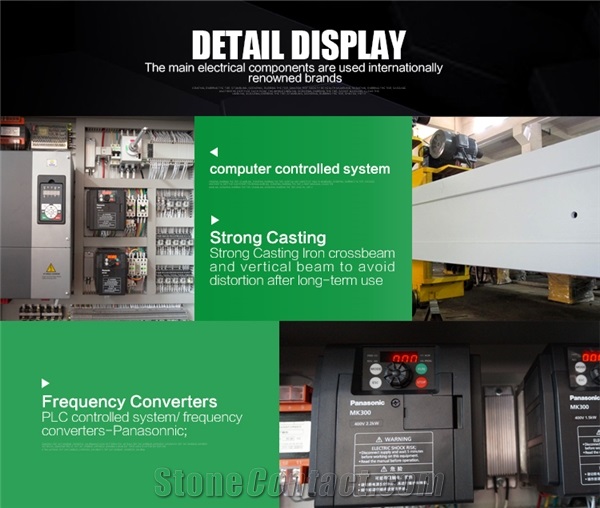

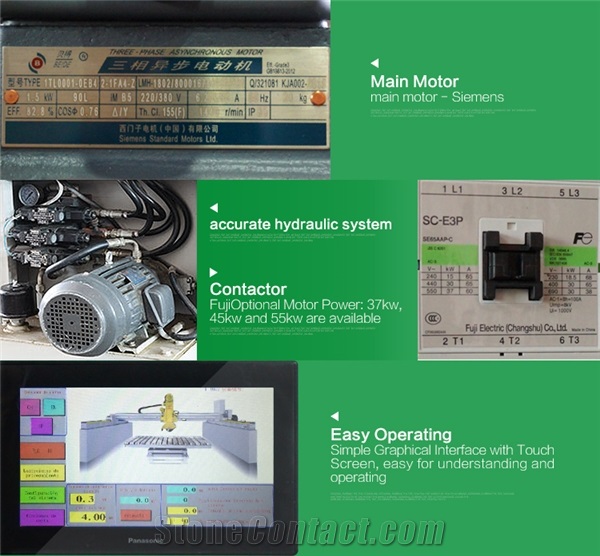

High efficiency for cutting slab & tile, stable and reliable Feature 1. Wide bridge structure with crossbeam, large size of slab cutting available 2. Equipped with infrared device, precise cutting location reachable 3. Dustproof design of the slide track ensures the precise guide movement & long lifespan 4. Worktable can tilt & rotate in wide angle for special processing 5. PLC control system, programmable, fully automatic & smooth feeding 6. Precise movement of head in X, Y, Z directions by rack & gear 7. Electric parts of Japanese name brand adopted, reliability guaranteed 8. Touch-sensitive operating system, friendly human-machine interface design 9. CE certificate The crossbeam is made of strong cast iron to avoid distortion after long run Guide rail is oil impregnated and protected from water and dust Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable Horizontal movement of the crossbeam is driven by motor equipped with OMRON rotary encoder by which the precision is guaranteed Worktable can tilt 0-85° , and rotate 0-360° . Equipped with Panasonic frequency transducer and OMRON PLC, programmable and fully automatic Lead Time: 30 days after receipt the down payment.
