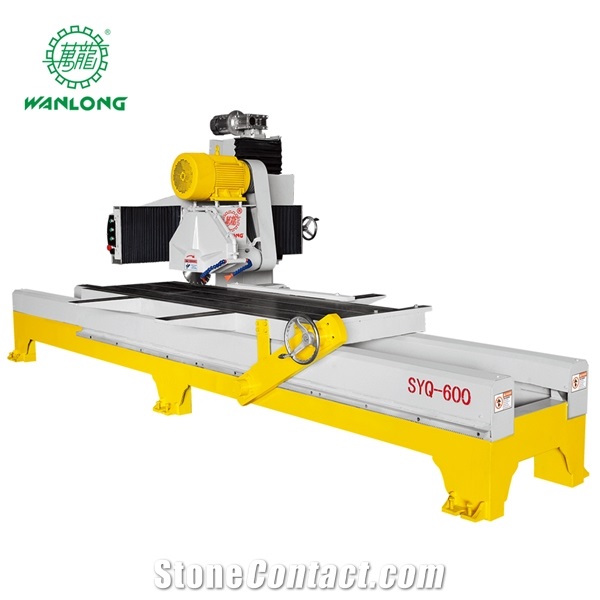

Granite Marble Stone Machinery SYQ-600 Manual Edge Cutting Machine

FOB Price:$3200-6500

Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

FuJian WanLong Diamond Tools CO,.LTD

FuJian WanLong Diamond Tools CO,.LTD
WANLONG

ChinaChina idicon

Eatablished :Jan 08,1993

ISO9001-2000,SGS,TUV

Main Product:

Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|

Contact supplier

Start Order

You may also like
Hand Stone Cutter- Single Disc Manual Cutting Machine
Hand Stone Cutter- Single Disc Manual Cutting Machine
HY-3617 Single Head High Speed Tile Cutting Machine
HY-3617 Single Head High Speed Tile Cutting Machine
Kerb Stone Edge Cutting Machine With Double Trolley
Kerb Stone Edge Cutting Machine With Double Trolley
TJZD-Q95-9 Manual Edge Cutting Machine
TJZD-Q95-9 Manual Edge Cutting Machine
Single Disc Cutting Machine CJ/CJD-6C Granite Marble Stone Cutting Machine
Single Disc Cutting Machine CJ/CJD-6C Granite Marble Stone Cutting Machine
  • Overview
  • Components
  • Customer Case

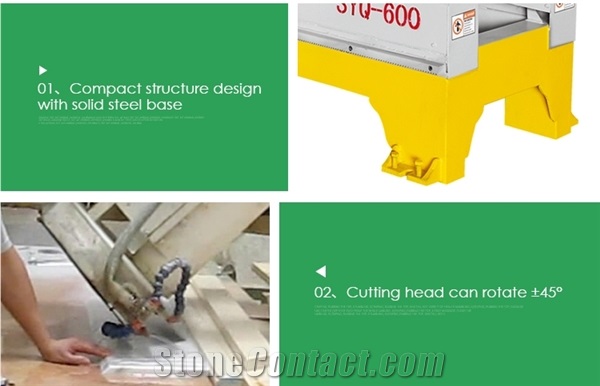

Machinery Function Features
This machine is for cutting slab. Equipped with guide rail of oil-impregnation sealed type and main shaft of oil lubrication type. The compact structure makes easier cutting. Function of chamfering slab is optional.
Technical Data
Parameters
Unit
SYQ-600
Machine width (W)
mm
2200
Max. workable material width
mm
1200
Machine height (H)
mm
1700
Discs number
pcs
1
Approximate weight
Kg
2500
Machine length (L)
mm
4900
Main motor power
kw
11
Water consumption
m3/h
2
Table dimensions
mm
3000x730
Maximum cutting width
mm
1200
Discs diameter
mm
350-600
Minimum strip length
mm
3000
Maximum workable thickness
mm
180
Software

1. Famous Chinese brand main motor, 11KW or 15KW
2. Electric single screw rod lifting system
3. Blade moves left & right manually or electrically both available
4. Blade tilting available
5. Worktable size 3000x730mm

Work Example

This machine is for slab cutting, and equipped with guid rail of oil-impregnation sealed type and main shaft of oil lubrication type. The compact structure makes cutting easier. Function of chamfering is optional.

Processed Stone Photos
  • Processed Stone Photos

Components
Consumables

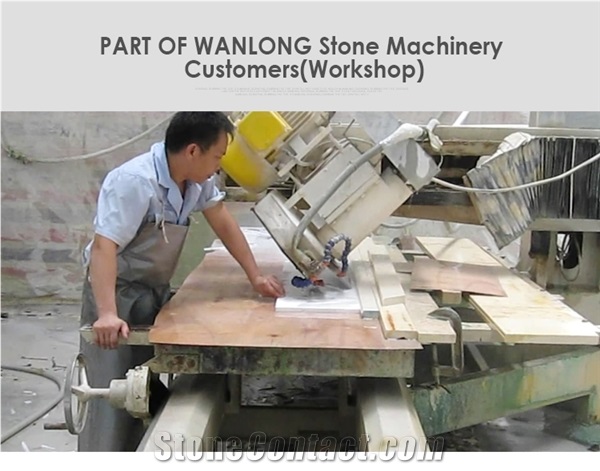

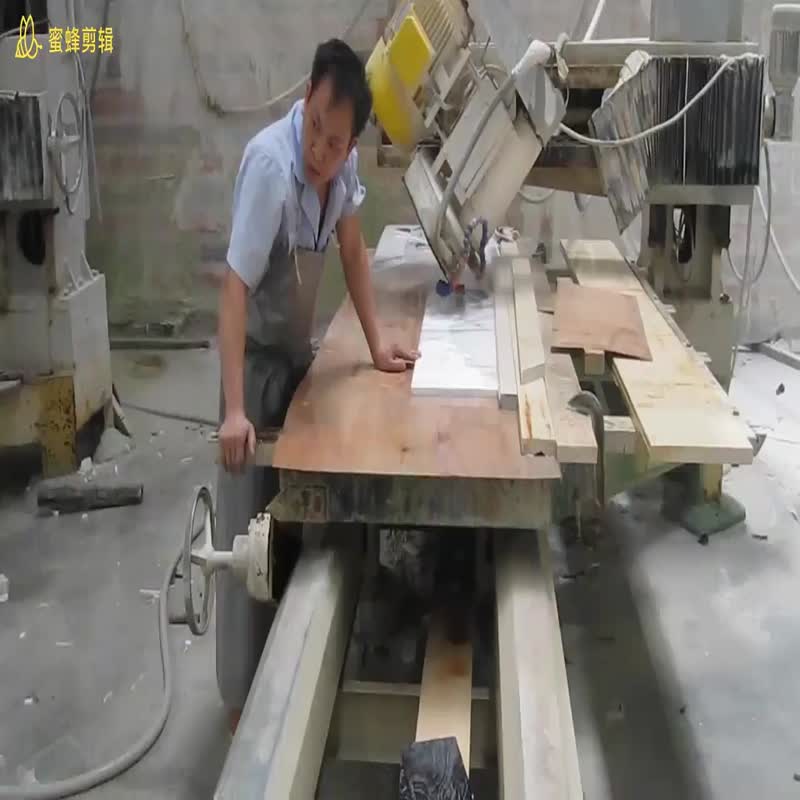

Customer Case
