Brembana Speed TR 3/4 axes numerical control machining center with rotating table-CNC Working Center

FOB Price:

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage: Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting

Supplier

CMS Spa

CMS Spa

CMS Stone Technology

ItalyItaly

Eatablished :Dec 31,1968

Main Product:

Granite Cutting Machine, Cnc Machining Centers, Marble Cutting Machines, Waterjet Cutting Machine, Cutting Machines, Bridge Sawing Machines|

Contact supplier

Start Order

  • Overview
Machinery Function Features

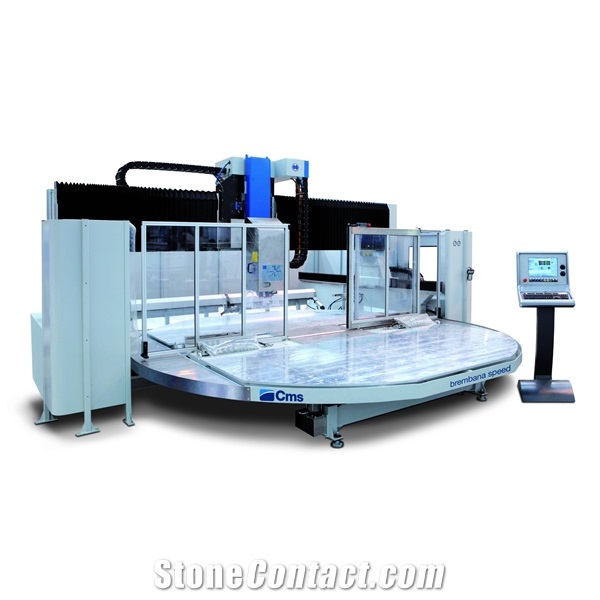

3/4 axes numerical control machining center with rotating table (TR) brembana speed TR is a Numerically Controlled Machining Center with rotating table and three/four interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic. It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, and writing. Working plane with rotary table allows pendular working mode, resetting downtimes for loading / unloading operations. This machine can be customized to the customer's needs, it is the winning solution for every fabshop.
Technical Data
Parameters
Unit
Brembana Speed TR
Tool-holder spindle motor torque
N·m
22 Nm at 6000 rpm / 39 Nm at 6000 rpm
Approx. Weight
Kg
8900 ÷ 10800
Tool-holder spindle rotation speed
r/min
0÷15000 / 0 ÷ 12000
X axis stroke
mm
3800 ÷ 4250
Tool-holder spindle motor power
kw
13,5 / 30
Y axis stroke
mm
2610 ÷ 4550
C axis inclination (degrees)
°
360° stepless
Number of axes
nr
26 ÷ 120
Dimensions of the work table (length x width)
mm
3600 x 1700 / 3800 x 1600
Z axis stroke
mm
420 ÷ 900
