Brembana g-rex 5/6 interpolated axes CNC Working Center
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Machinery Function Features
5/6 interpolated axes machining center

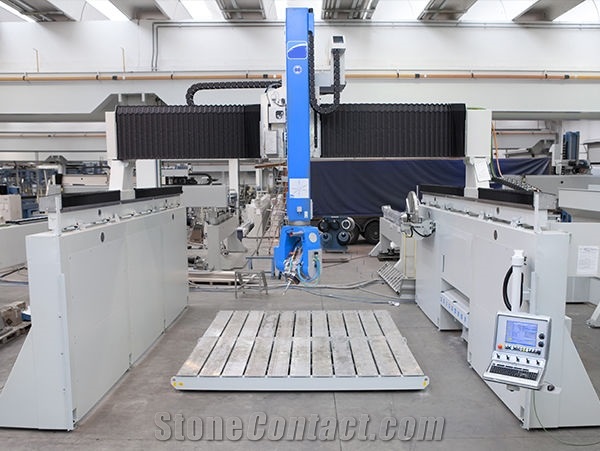

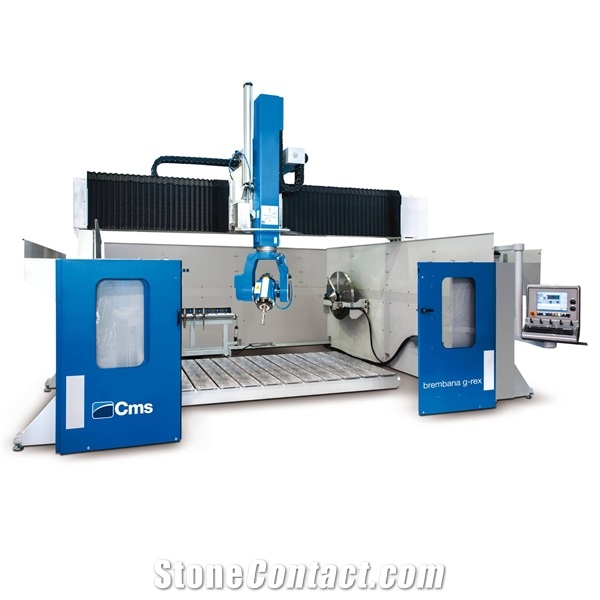

brembana g-rex is a Numerically Controlled Machining Center with five/six interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic. It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, writing, and blade working. This machine can be customized to the customer's needs and it’s especially designed for fabshops involved in architectural projects and in building industry in general.
brembana g-rex is also available with:

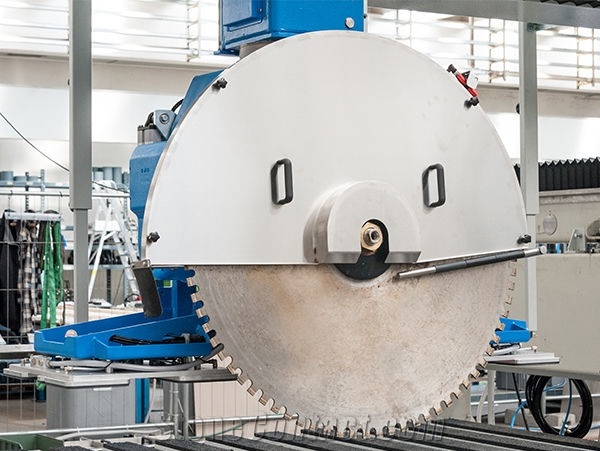

solution to work in a pendular cycle: the front area works as a cnc center and the back area works as a bridge saw, with automatic stations for tool and disk change
solution for an integrated line to work slabs equipped as: automatic loading, cutting area, contouring area and storage
Technical Data
Parameters |
Unit |
Brembana g-rex |
C axis inclination (degrees) |
° |
±270° (540°) |
Y axis stroke |
mm |
3000 ÷ 1850 |
Number of axes |
nr |
11 ÷ ∞ (multiples of 11) + blade holder |
A axis rotating (degrees) |
° |
±100° |
Z axis stroke |
mm |
900 ÷ 2000 |
X axis stroke |
mm |
3800 - 4250 |
Tool-holder spindle motor torque |
N·m |
120 to 220 at 1000 rpm |
Tool-holder spindle rotation speed |
r/min |
0÷8000 |
Max. diameter of the blade |
mm |
1200 |
Tool-holder spindle motor power |
kw |
13-23 |
