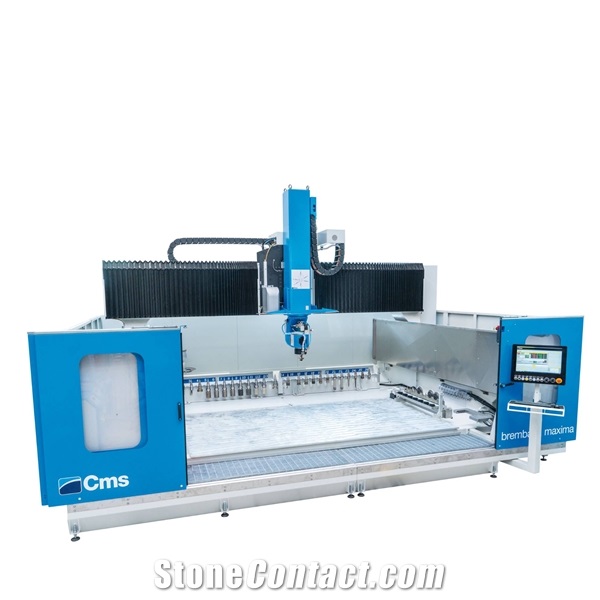

Brembana Maxima 5/6 interpolated axes CNC machining center
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting
Machinery Function Features
5/6 interpolated axes machining center

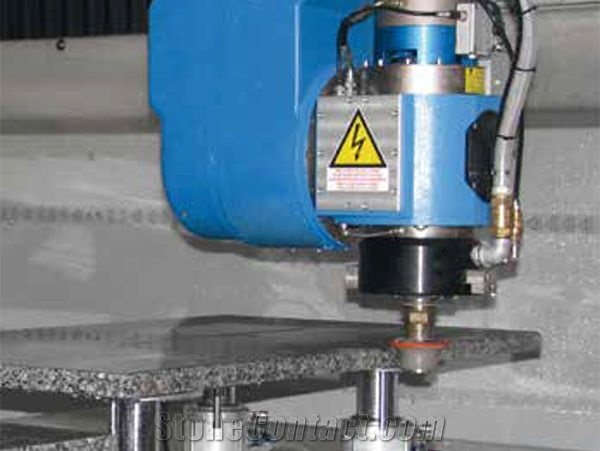

brembana maxima is a Numerically Controlled Machining Center with five/six interpolated axes suitable for processing both slabs and blocks even with high thickness in marble, granite, composite stone, and ceramic.
It can perform each type of raw and polished contouring, as well as milling, drilling, countersinking, bas relief, and writing.
This machine can be customized to the customer's needs and is a state-of-the-art representation of 5-axis machining.
brembana maxima is also available with:
concrete or carpentry shoulders (Open Frame)

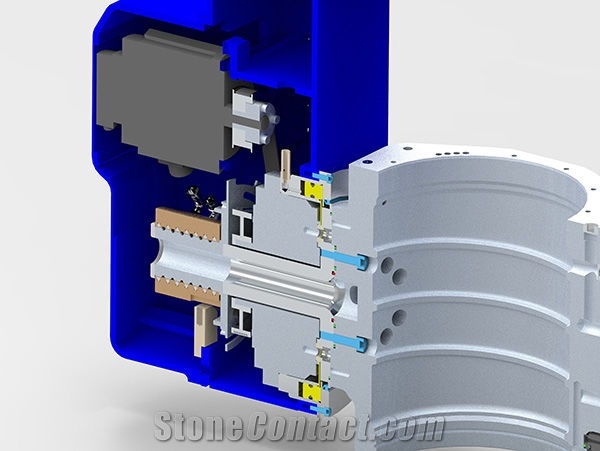

electrospindle with HSK attach and customized covers to meet all the customer's needs
rotating table: it eases loading and unloading operations. This is the ideal machine for a customer looking for high productivity
Technical Data
Parameters |
Unit |
Brembana Maxima |
Total Power required |
kw |
13,5 / 30 |
Z axis stroke |
mm |
475 ÷ 2000 |
Tool-holder spindle motor torque |
N·m |
22 Nm at 6000 rpm / 39 Nm at 6000 rpm |
Tool-holder spindle rotation speed |
r/min |
0÷15000 - 0÷12000 |
Y axis stroke |
mm |
2400 ÷ 18500 |
A axis rotating (degrees) |
° |
±100° |
C axis inclination (degrees) |
° |
± 270° (540°) |
X axis stroke |
mm |
3800 - 4250 |
Number of axes |
nr |
26÷180 + 1 for blade ø 500 mm |
