Multiwire Jupiter GS220 - F56, GS220 F60 - SF30 Wire Saw Machine for Granite
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Main Product:
Gs 121 Open Frame Gang Saw, M945 Bridge Saw, B220mv Slabs Polishing Machine For Marble, Wire Saw Machines, Gang Saw Machines, Giant Disc Saw, Bridge Saw, Polishing Line, Slab Scanner, Resin Line, Trimming Machine, Cruss Cutting Machine, Chamfering Machine|
Machinery Function Features

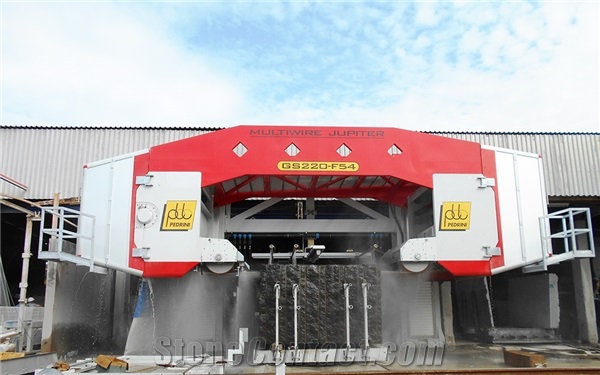

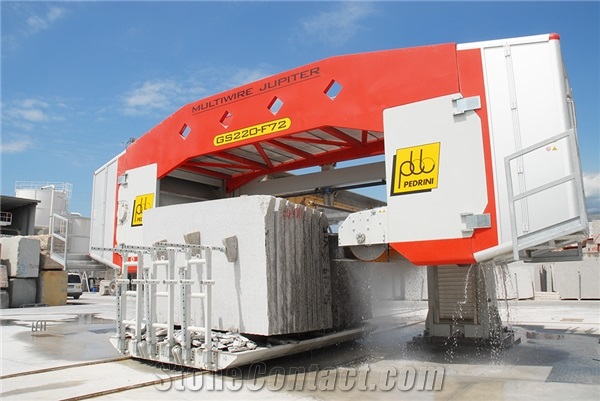

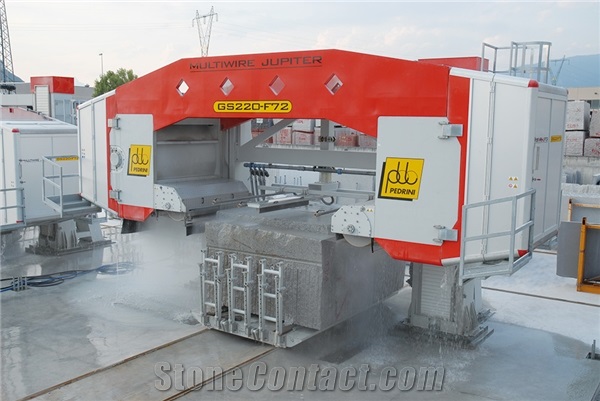

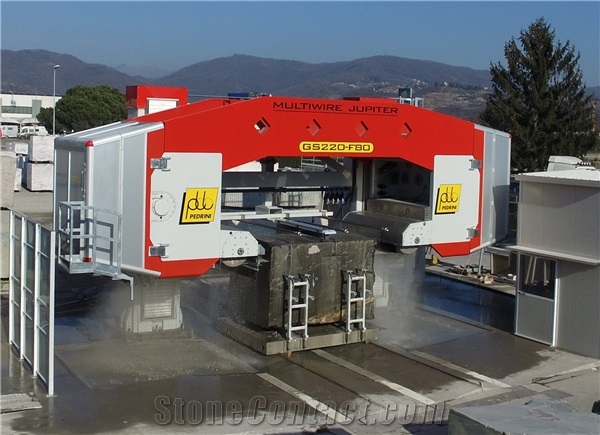

MULTIWIRE JUPITER GS220 is an open frame multiwire machine for the production of granite and marble slabs that performs blocks fast cutting through a set of diamond wires. It is available in several versions which differ for the maximum number of wires and for the diamond wire diameter (7,3 mm – 6,3 mm – 5,3 mm).
It stands out for its flexibility, reliability, state-of-the-art technical solutions and for its high production capacity.
Technical Data
Parameters |
Unit |
GS220 F56 |
GS220 F64 |
GS220 F72 |
GS220 F80 |
GS220 F48 - SF30 |
GS220 F54 - SF30 |
GS220 F60 - SF30 |
Main motor power |
kw |
250 |
250 |
315 |
315 |
200 |
250 |
250 |
Slabs nominal thickness |
cm |
2 ÷ 3 |
2 ÷ 3 |
2 ÷ 3 |
2 ÷ 3 |
3 |
3 |
3 |
Max. Cutting height |
mm |
2100 |
2100 |
2100 |
2100 |
2100 |
2100 |
2100 |
Cooling water(min. required pressure 3.5 bar) |
L/min |
1800 |
2100 |
2300 |
2555 |
1600 |
1800 |
2000 |
Diamond bead diameter |
mm |
7,3 |
7,3 |
7,3 |
7,3 |
7,3 |
7,3 |
7,3 |
Machine length (L) |
mm |
12000 |
12000 |
12000 |
12000 |
12000 |
12000 |
12000 |
Machine height (H) |
mm |
6900 |
6900 |
6900 |
6900 |
6900 |
6900 |
6900 |
Max. Number of wires for sawing 20mm thick. |
nr |
56 |
64 |
72 |
80 |
|||
Max. individual diamond wire tension |
Kg |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
Diamond wire length |
mm |
24500 |
24500 |
24500 |
24500 |
24500 |
24500 |
24500 |
Max. Cutting length |
mm |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
3600 |
Max. Number of wires for sawing 30mm thick. |
nr |
48 |
54 |
60 |
||||
Wires set width |
mm |
1592 |
1822 |
2052 |
2283 |
1812 |
2042 |
2273 |
Approximative Weight |
T |
50 |
53 |
55 |
58 |
53 |
55 |
58 |
Installed electrical power |
kw |
265 |
265 |
330 |
330 |
215 |
265 |
265 |
Diamond wires speed |
m/s |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
