Multiwire Jupiter GS220 Wire Saw Machine for Granite Blocks
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Gs 121 Open Frame Gang Saw, M945 Bridge Saw, B220mv Slabs Polishing Machine For Marble, Wire Saw Machines, Gang Saw Machines, Giant Disc Saw, Bridge Saw, Polishing Line, Slab Scanner, Resin Line, Trimming Machine, Cruss Cutting Machine, Chamfering Machine|
You may also like
Machinery Function Features

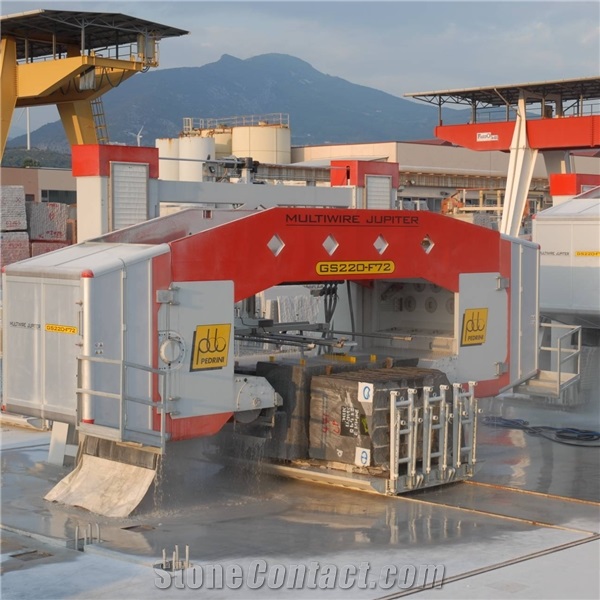

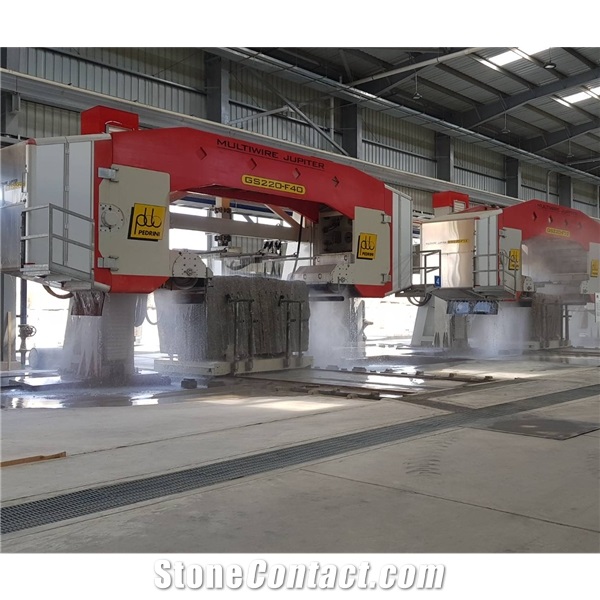

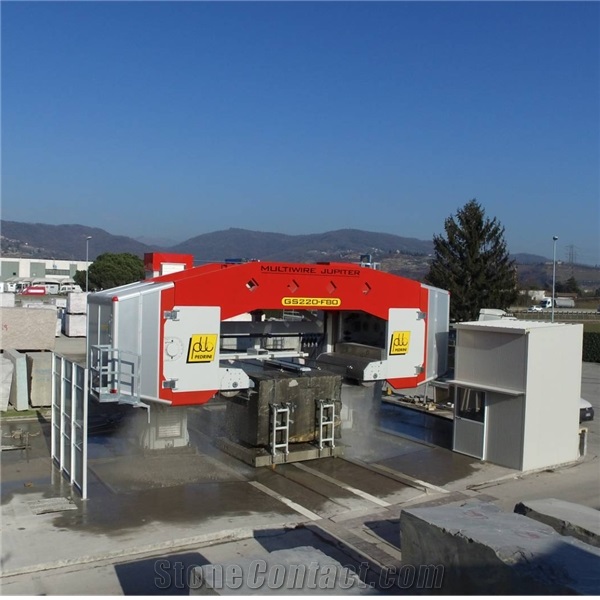

MULTIWIRE JUPITER GS220 is an open frame multiwire machine for the production of granite and marble slabs that performs blocks fast cutting through a set of diamond wires. It is available in several versions which differ for the maximum number of wires and for the diamond wire diameter (7,3 mm – 6,3 mm – 5,3 mm).
It stands out for its flexibility, reliability, state-of-the-art technical solutions and for its high production capacity.
Technical Data
Parameters |
Unit |
GS220 - F16 |
GS220 - F24 |
GS220 - F32 |
GS220 - F40 |
Installed electrical power |
kw |
90 |
125 |
150 |
175 |
Diamond wire length |
mm |
24500 |
24500 |
24500 |
24500 |
Machine length (L) |
mm |
12000 |
12000 |
12000 |
12000 |
Slabs nominal thickness |
cm |
2 ÷ 3 |
2 ÷ 3 |
2 ÷ 3 |
2 ÷ 3 |
Max. Cutting height |
mm |
2100 |
2100 |
2100 |
2100 |
Diamond wires speed |
m/s |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
Machine height (H) |
mm |
6900 |
6900 |
6900 |
6900 |
Main motor power |
kw |
75 |
110 |
132 |
160 |
Approximative Weight |
Kg |
25000 |
30000 |
38000 |
40000 |

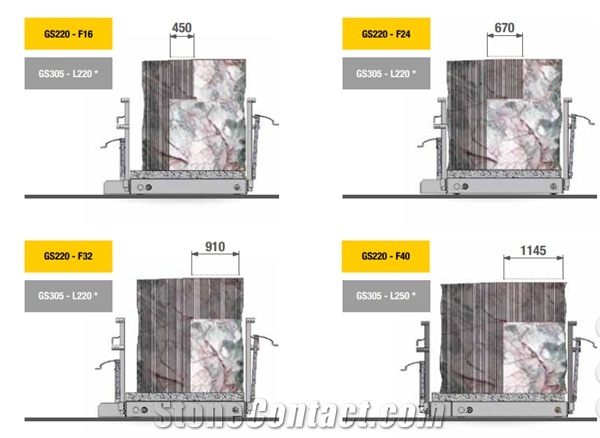

Wires set width |
mm |
450 |
670 |
910 |
1145 |
Max. Number of wires for sawing 20mm thick. |
nr |
16 |
24 |
32 |
40 |
Max. Cutting length |
mm |
3600 |
3600 |
3600 |
3600 |
Diamond bead diameter |
mm |
7,3 |
7,3 |
7,3 |
7,3 |
Cooling water(min. required pressure 3.5 bar) |
L/min |
600 |
960 |
1100 |
1400 |
Max. individual diamond wire tension |
Kg |
250 |
250 |
250 |
250 |
