6.3 Wire -Multiwire Jupiter GS220 - F16 P93, GS220 - F40 P93 Multi Wire Saw Machine for Granite Blocks
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesMulti Wire Saw Machine
Usage:
Granite, Basalt
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Main Product:
Gs 121 Open Frame Gang Saw, M945 Bridge Saw, B220mv Slabs Polishing Machine For Marble, Wire Saw Machines, Gang Saw Machines, Giant Disc Saw, Bridge Saw, Polishing Line, Slab Scanner, Resin Line, Trimming Machine, Cruss Cutting Machine, Chamfering Machine|
Machinery Function Features

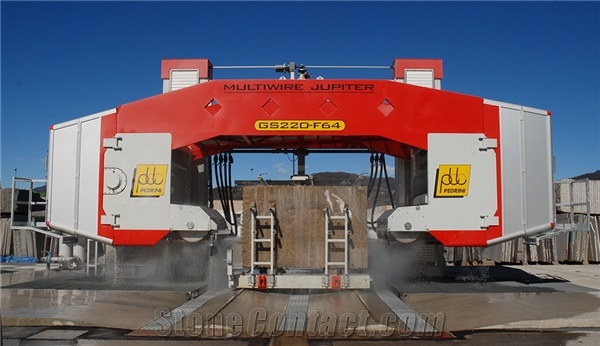

MULTIWIRE JUPITER GS220 is an open frame multiwire machine for the production of granite and marble slabs that performs blocks fast cutting through a set of diamond wires. It is available in several versions which differ for the maximum number of wires and for the diamond wire diameter (7,3 mm – 6,3 mm – 5,3 mm).
It stands out for its flexibility, reliability, state-of-the-art technical solutions and for its high production capacity.
Technical Data
Parameters |
Unit |
GS220 - F16 P93 |
GS220 - F24 P93 |
GS220 - F32 P93 |
GS220 - F40 P93 |
Diamond wire length |
mm |
24500 |
24500 |
24500 |
24500 |
Machine length (L) |
mm |
12000 |
12000 |
12000 |
12000 |
Max. individual diamond wire tension |
Kg |
210 |
210 |
210 |
210 |
Diamond bead diameter |
mm |
6,3 |
6,3 |
6,3 |
6,3 |
Installed electrical power |
kw |
90 |
125 |
150 |
175 |
Main motor power |
kw |
75 |
110 |
132 |
160 |
Diamond wires speed |
m/s |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
20 ÷ 35 |
Slabs nominal thickness |
cm |
2 ÷ 3 |
2 ÷ 3 |
2 ÷ 3 |
2 ÷ 3 |
Max. Cutting height |
mm |
2100 |
2100 |
2100 |
2100 |
Wires set width |
mm |
425 |
648 |
871 |
1094 |
Max. Number of wires for sawing 20mm thick. |
nr |
16 |
24 |
32 |
40 |
Machine height (H) |
mm |
6900 |
6900 |
6900 |
6900 |
Max. Cutting length |
mm |
3600 |
3600 |
3600 |
3600 |
Approximative Weight |
T |
25 |
30 |
38 |
40 |
Cooling water(min. required pressure 3.5 bar) |
L/min |
600 |
960 |
1100 |
1400 |
