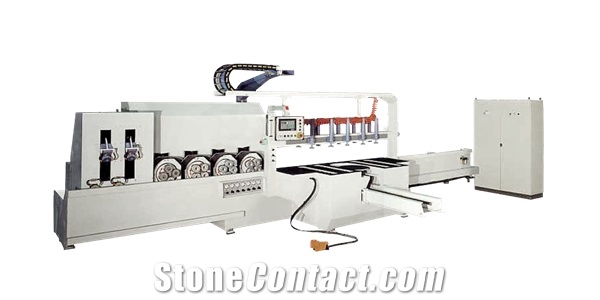

Comandulli HERCULES MULTI TP Automatic fixed bench edge polisher with moving spindle holding carriage, Flat profiles and chamfers

Very versatile machines able to work single pieces or small series of pieces; they allow you to obtain a very good quality on every type of straight edge. Suitable for FURNISHING and MONUMENTS, they can be used in high quality BUILDING field as well, with a middle/high production. Automatic fixed bench edge polisher with moving spindle holding carriage. Carriage equipped with four planetary spindles to polish the flat edge and with six 45° spindles (three upper and three lower ones) to make and polish bevels. Features THE EXCLUSIVE FEATURES OF A COMANDULLI MACHINE HERCULES MULTI TP Carriage: fitted with four planetary heads suitable for polishing straight edges up to 45 cm and with six 45°-heads (three upper and three lower heads) suitable for bevel-shaping and polishing Automatic device capable of self-learning the position and the length of the piece (or pieces) being processed Bench: fitted with a pneumatic table for piece-loading and positioning (bearing capacity: 2400 kg) and with four sets of rollers moving in all directions Sets of pneumatic slab holders to lock in place the piece being processed on the said bench Squares for piece-alignment Electronic equipments: allowing for spindle usage in different manners: more runs for each single spindle or only one run with automatic operation of all spindles at the same time Machine operation is keypad-controlled and relevant functions are displayed on screen so as to enable a quick and user-friendly choice of the working programs The machine handing software also allows for an easy change of all automatic device working parameters Self-diagnostic software Electronic centralized lubrification unit OPTIONS On request it is possible to supply the machine with: 5 planetary spindles 6 45° spindles for bevels Working length longer than standard one up to 20 m max.
