Saw Machine with manual head feed AFR-M
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1949
Main Product:
Floor Grinder, Compact Bridge Saw With Turning Head, Mitre Saw Machines, Compact Bridge Saw With Mobile Bridge, Tile Cutting Machines, Bridge Saw With Turning Table For Marble|
Machinery Function Features
Compact, essential and sturdy granite cutting saw with fixed bridge for stone slabs, marble and granite; the bridge tilt and the water tank with built-in recycling pump make it the perfect saw for the stone fabbricator.
ADVANTAGES

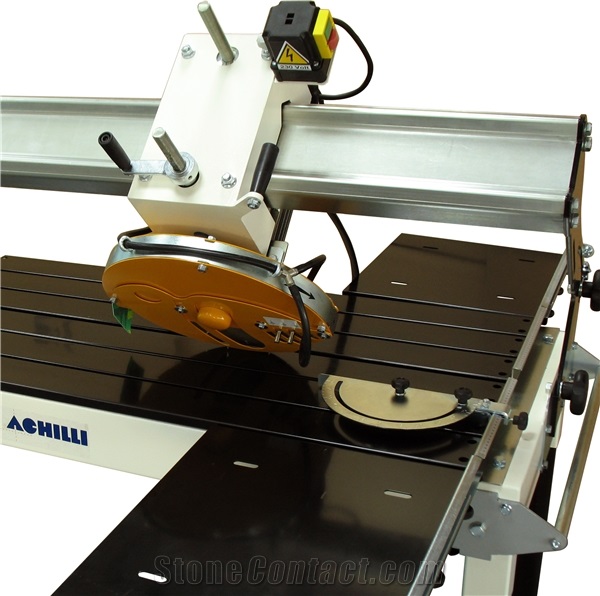

AFR-M is a reliable portable granite cutting saw with fixed bridge to cut slabs up to 1300mm in length:
Sturdy and compact structure;
Special beam design to attain the maximum cutting precision;

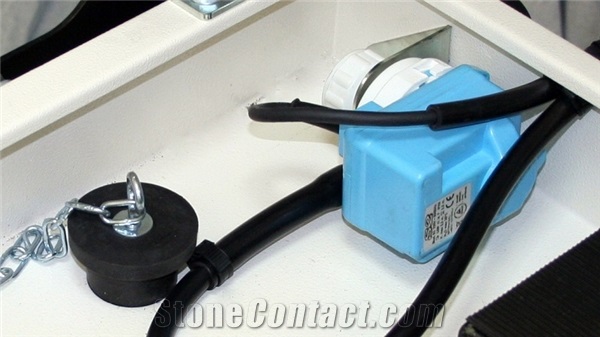

Water tank with built-in recycling pump for blade cooling.
Technical Data
Parameters |
Unit |
AFR-M |
AFR-M HT |
Standard frequency |
Hz |
50-60 |
50-60 |
Main motor power |
kw |
2.2kW = 3HP 1ph. / 3Kw = 4HP 3ph |
4kW= 5.5HP 3ph |
Diamond blade diameter |
mm |
250-300-350 |
400-450-500 |
Standard voltage |
V |
230 / 400 |
230 / 400 |
Main motor rotation speed |
r/min |
2800-3400 |
1400 - 1700 |
Max. cutting width |
mm |
800-1000-1300 |
800-1000-1300 |
Blade bore size |
mm |
25,4 |
25,4 |
