Miter saw for 45 degree cutting MSA
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Machinery Function Features

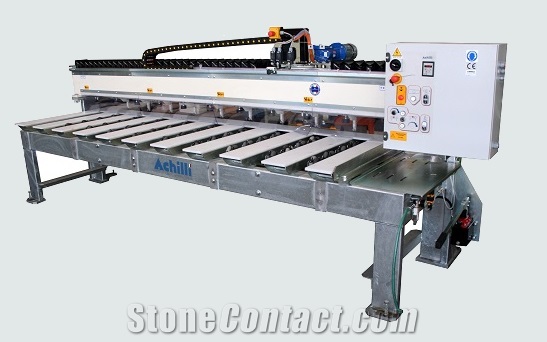

MITER SAW FOR 45 DEGREE CUTTING MSA
MITER SAW FOR THE PROFESSIONAL TILTED CUTTING AT 45 DEGREES
Professional stone saw for tilted cuts designed to work slabs "face down", it allows to perform perfect 45 degree cutting even on uncalibrated slabs. No width limitation of the slab to process; even the most narrow strips can be machined thanks to the special pneumatic pistons blocking the stone. The maximum cutting precision is guaranteed by the head travel on linear guides fitted with recirculating ball slides and by the position of the blade cutting from bottom upwards.
ADVANTAGES
MSA professional miter saw for tilted cuts:
Steel frame with hot-dip galvanizing treatment for maximum resistance to wear and rust;

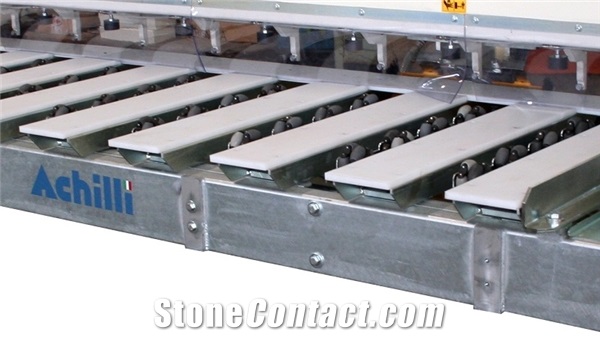

Worktable made of anti-scratch plastic material slats;
Available in two models: useful cut 3300mm or 3700mm;
Maximum cutting precision is guaranteed by the head travelling on linear guides fitted with recirculating ball slides automatically lubricated;

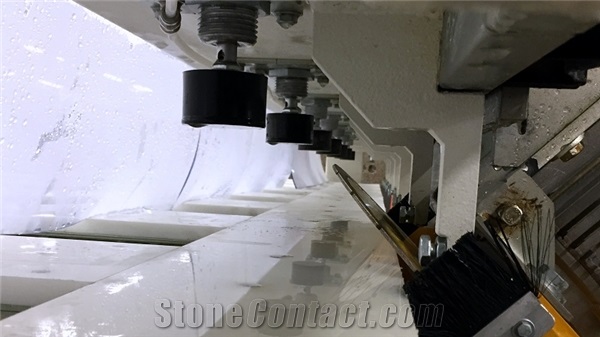

10 pneumatic pistons and 3 slab stops to secure even the smallest workpieces in place during machining;
Pneumatic pop-up slab stops to cut thin ceramic and sintered material slabs.
Technical Data
Parameters |
Unit |
MSA |
Standard voltage |
V |
230 / 400 |
Blade bore size |
mm |
50 |
X axis travel |
mm |
3300 / 3700 |
Main motor rotation speed |
r/min |
1400 rpm (50Hz) - 1700 rpm (60Hz) - Opt: 800 – 3400 rpm |
Main motor power |
kw |
5,5 |
Max stone thickness |
mm |
80 |
Standard frequency |
Hz |
50/60 |
Worktable dimensions |
mm |
3300/3700 x 1000 |
Diamond blade diameter |
mm |
350-400-450 |
