SPRINT - MANUAL CUTTING MACHINE

Name: SPRINT - MANUAL CUTTING MACHINE
Brand: Ferrari & Cigarini SRL
SKU: 3655
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Ferrari & Cigarini SRL

CompactLine

Italy

Main Product:

Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|

Contact supplier

Start Order

You may also like

QZ-ZD-1800 AUTOMATIC SERIES OF STONE TILE CUTTING

Joborn Manual Cutting Machine SQC-600

Multi-Function Tile Cutting Machine- Mitre Saw

Aardwolf Site Saw SSM2000

Ceramic Tile Cutting Series QX-800/1000/1200

Product Detail
Company Profile

Overview

Machinery Function Features

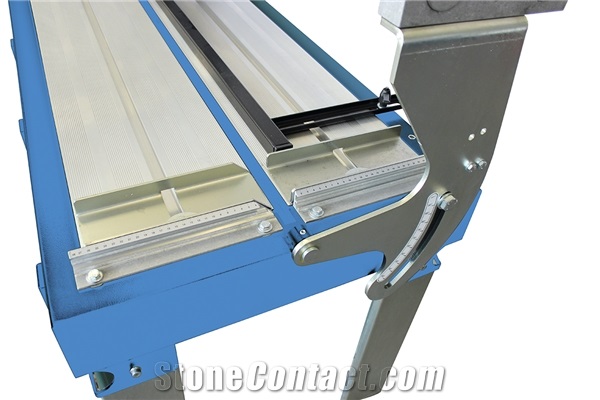

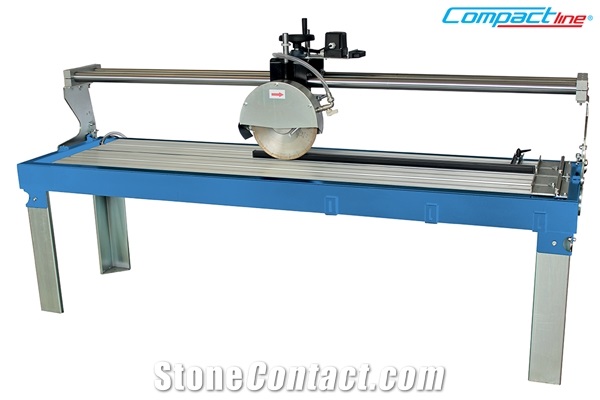

Base frame in painted iron and work bench in aluminium. Cutting head with manual sliding through use of a handle, on chrome-plated bars. The cutting head is adjusted vertically by means of a handwheel and can be tilted for 45° cutting. Submerged pump for disc cooling water. 1 side stop, 1 front stop, corner-shaped legs, and set of service wrenches. OPTIONAL: Diamond cutting blade. Goniometer. Long goniometer. Side roller 50x100 cm.

Technical Data

Parameters	Unit	SPRINT 120	SPRINT 150	SPRINT 200 Special
Max. cutting spindle tilting angle	°	45	45	45
Max. cutting width	mm	1200	1500	2000
Machine width (W)	mm	660	660	880
Max stone thickness	mm	60	60	60
Main motor power	kw	2.2	2.2	2.2
Machine height (H)	mm	770	770	770
Main motor rotation speed	r/min	2800	2800	2800
Approximate weight	Kg	160	180	260
Standard voltage	V	230	230	230
Diamond blade diameter	mm	300	300	300
Machine length (L)	mm	1600	1970	2500
