VELOX - Manual or Semi-Automatic Tile, Strip Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|
Machinery Function Features
Base frame in painted iron and work bench in alluminium. Cutting head with manual sliding through use of a handwheel, on chrome plated bars. The cutting head is adjusted vertically by means of a handwheel and can be tilted for 45° cutting. Submerged pump for disc cooling water. 1 side stop, 1 front stop, corner-shaped legs and set of service wrenches. 1 side roller 50x100 cm.

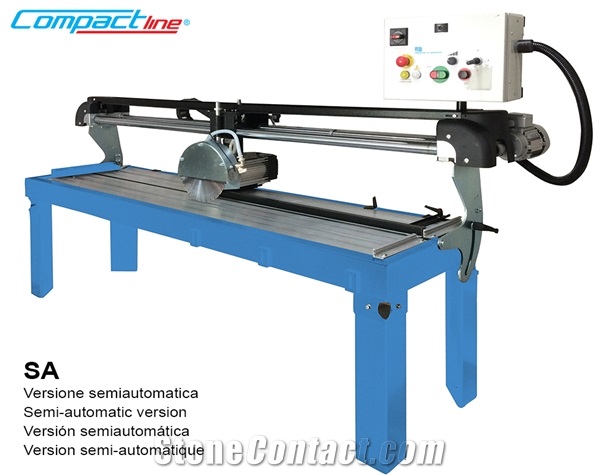

SEMI-AUTOMATIC VERSION (SA): Cutting head controlled by belt traction driven by an electronically-controlled gear motor.
OPTIONAL: Diamond cutting blade. Goniometer. Long goniometer. Laser cutting guide.
Technical Data
Parameters |
Unit |
VELOX 150 M |
VELOX 150 T |
VELOX 200 M |
VELOX 200 T |
VELOX 150 SA |
VELOX 200 SA |
Max stone thickness |
mm |
60 |
60 |
60 |
60 |
60 |
60 |
Machine width (W) |
mm |
660 |
660 |
660 |
660 |
660 |
660 |
Main motor power |
kw |
2,2 |
4 |
2,2 |
4 |
4 |
4 |
Standard voltage |
V |
230 |
400 |
230 |
400 |
400 |
400 |
Diamond blade diameter |
mm |
300 -Bore:25,4 |
300 -Bore:30 |
300 -Bore:25,4 |
300 -Bore:30 |
300 -Bore:30 |
300 -Bore:30 |
Main motor rotation speed |
r/min |
2800 |
2800 |
2800 |
2800 |
2800 |
2800 |
Machine height (H) |
mm |
810 |
810 |
810 |
810 |
810 |
810 |
Machine length (L) |
mm |
2750 |
2180 |
2180 |
2750 |
2250 |
2750 |
Max. cutting width |
mm |
1500 |
1500 |
2000 |
2000 |
1500 |
2000 |
Approximate weight |
Kg |
220 |
225 |
240 |
245 |
245 |
265 |
