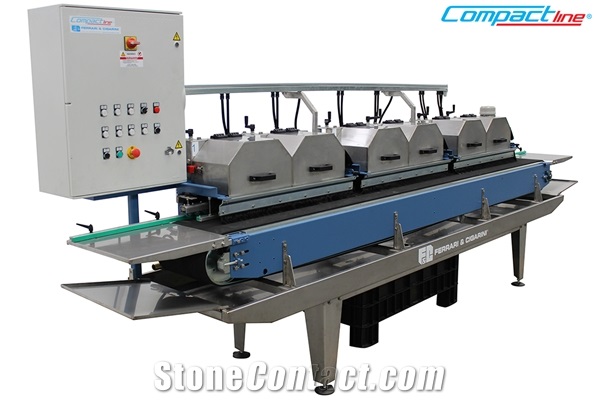

SPL COMPACTLINE - PROFILING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Profiling Line Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Main Product:
Ceramic Plants And Equipments, Cutting Machines, Mosaic Machines, Polishing Machine|
Machinery Function Features

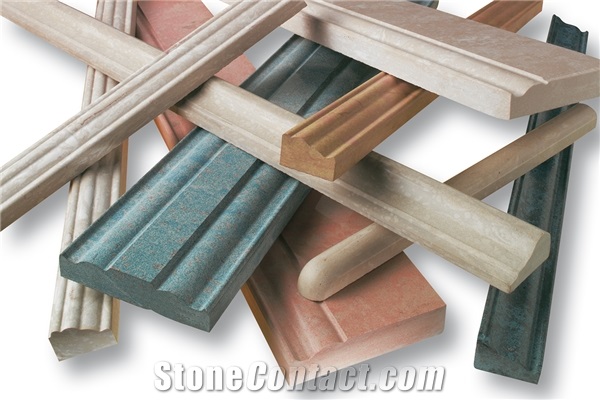

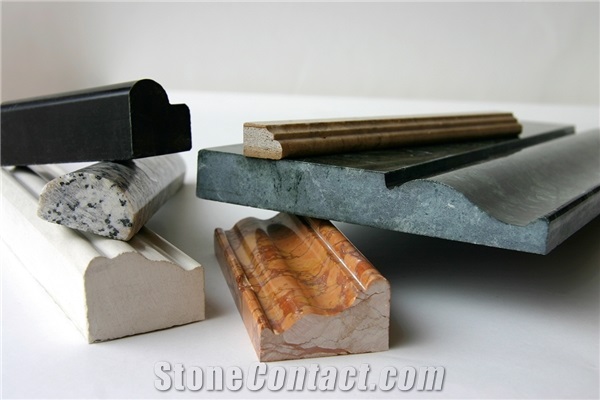

SPL is the new profiling machine suitable to create different profiles on the edge of porcelain, marble and granit material.
Technical Data
Parameters |
Unit |
SPL/C |
Machine overall width |
mm |
1200 |
Max. processing thickness |
mm |
30 |
Water consumption |
L/h |
200 |
Motor speed |
rpm |
2800 |
Min. Processing Width |
mm |
40 |
Number of polishing wheel |
nr |
6 |
Approx. Weight |
Kg |
930 |
Voltage |
V/Hz |
400 V 50Hz |
Main motor power |
kw |
3 |
Number of shape axis |
nr |
6 |
Blade diameter |
mm |
250 |
Water pump power |
kW |
1x0,37 |
Machine overall length |
mm |
4700 |
Machine overall height |
mm |
1900 |
Belt width |
mm |
350 |
Gear motor power |
kW |
0,37 |
