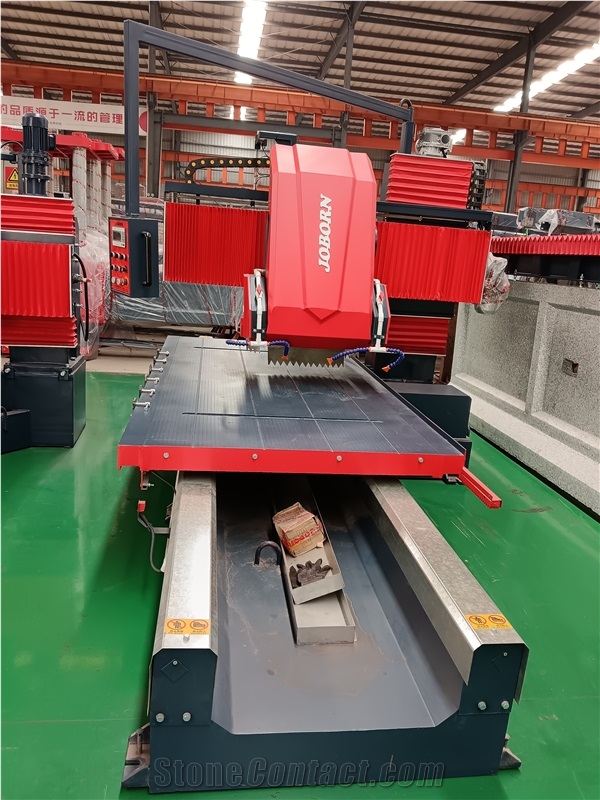

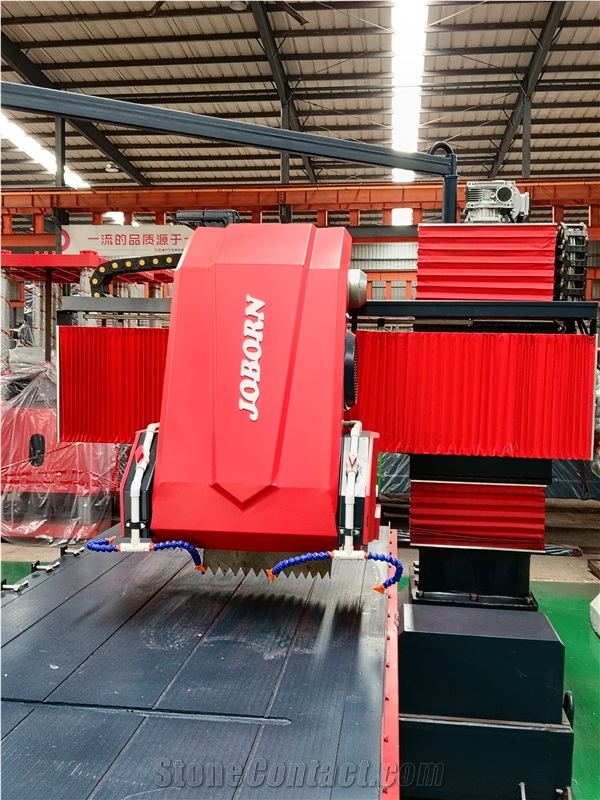

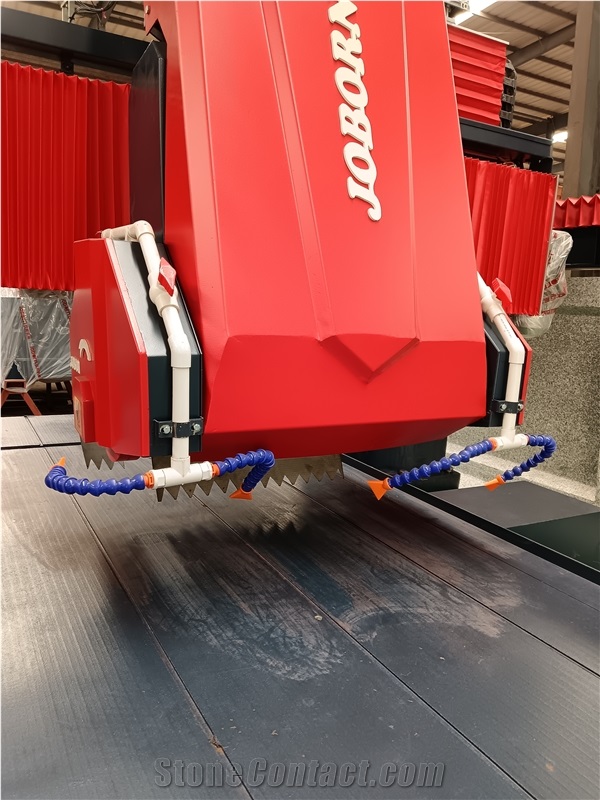

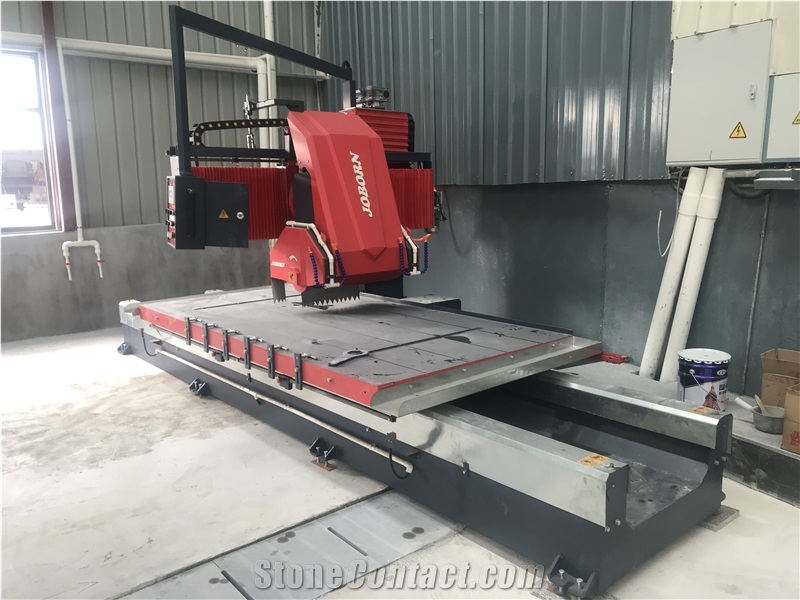

SQ/PC-1300/1500 Automatic Profiling Machine

FOB Price:$12500-15500

Type: Stone Factory MachinesStone Finishing, Profiling MachinesStone Profiling Line Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 25~30 days after prepayment received
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

FUJIAN JOBORN MACHINERY CO.,LTD.
JOBORN MACHINERY

ChinaChina level4YR idicon

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like
12 Head Grinding Bullnose Polishing Machine
12 Head Grinding Bullnose Polishing Machine
Granite PLC Linear Profiling Machine Stone Edge Cutting Marble
Granite PLC Linear Profiling Machine Stone Edge Cutting Marble
Second Change Grinding Head Profiling Line Machine
Second Change Grinding Head Profiling Line Machine
Profile Cutting Machine For Granite And Marble
Profile Cutting Machine For Granite And Marble
Automatic Stone Profiling Molding Shaping Process Disc Cutting Machine
Automatic Stone Profiling Molding Shaping Process Disc Cutting Machine
  • Overview
  • Components
  • Video
Machinery Function Features
The main machine adopts screw nut structure to move up and down and left and right, its maximum stroke is 600 and 1350mm(standard),the workbench 3000*1300mm(standard)is cast as a whole, the workbench adopts pinion and rack structure to move back and forth, its maximum stroke is 3400mm.The maximum saw blade diameter of the main machine is 600mm,using double tool copying;
Technical Data
Parameters
Unit
SQ/PC-1300 Automatic profiling machine
SQ/PC-1500 Automatic profiling machine
Machine overall length
mm
5300
5300
Total power
kw
19
19
Main motor power
kw
15
15
Water consumption
m3/h
6
6
Control system
CNC system(can match)
CNC system(can match)
Machine overall width
mm
2300
2500
Blade diameter
mm
600
600
Machine overall height
mm
2520
2520
Approx. Weight
Kg
4300
4500
Software

PLC computer operating system

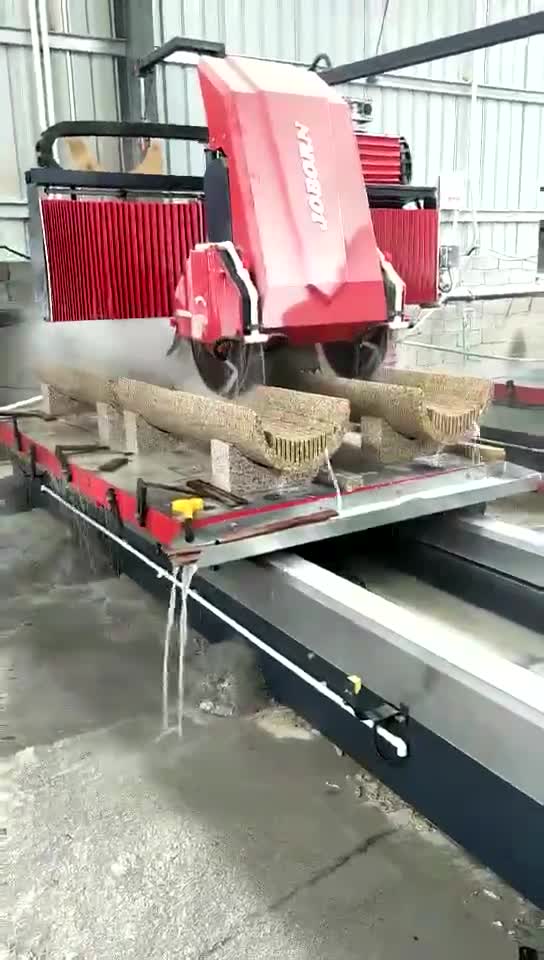

Work Example

The main machine adopts screw nut structure to move up and down and left and right, its maximum stroke is 600 and 1350mm (standard), the workbench 3000*1300mm (standard) is cast as a whole, the workbench adopts pinion and rack structure to move back and forth, its maximum stroke is 3400mm. The maximum saw blade diameter of the main machine is 600mm, using double tool copying;

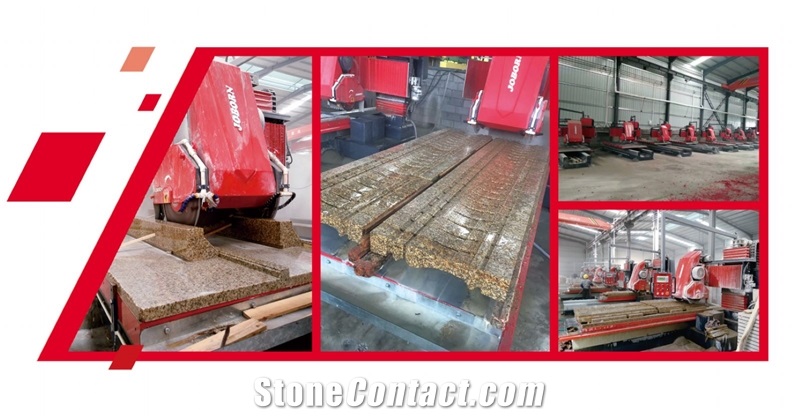

Processed Stone Photos
  • Processed Stone Photos

Components

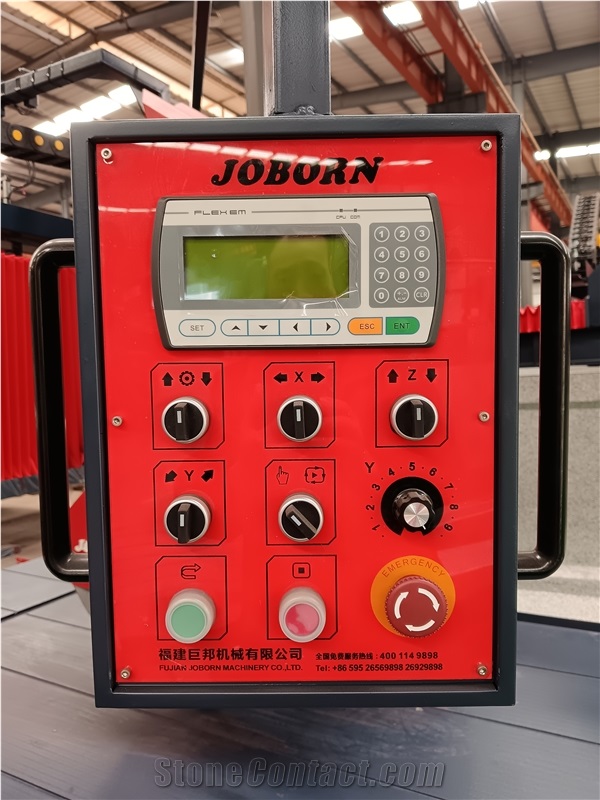

  • human-computer interaction interface

    human-computer interaction interface

    ¥Payment Required
  • electrical components

    electrical components

    ¥Payment Required
Consumables

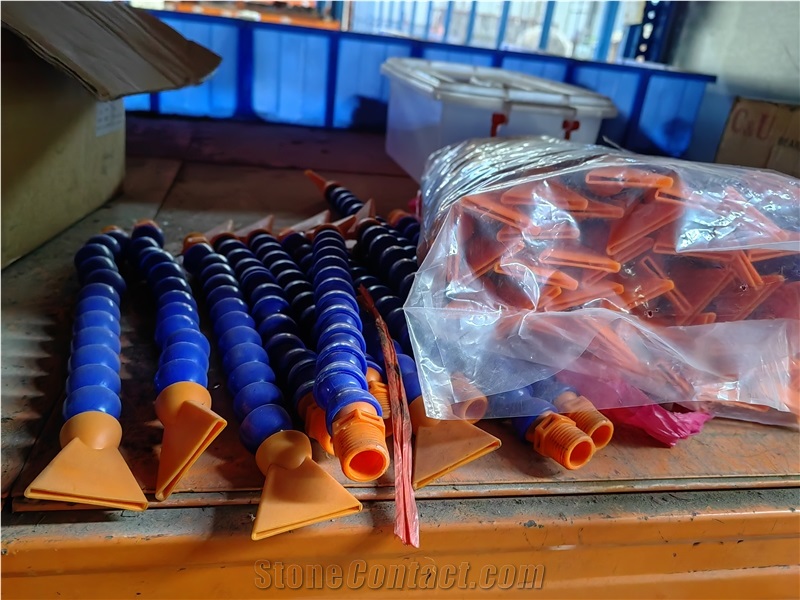

  • universal spray pipe

    universal spray pipe

    universal spray pipe
