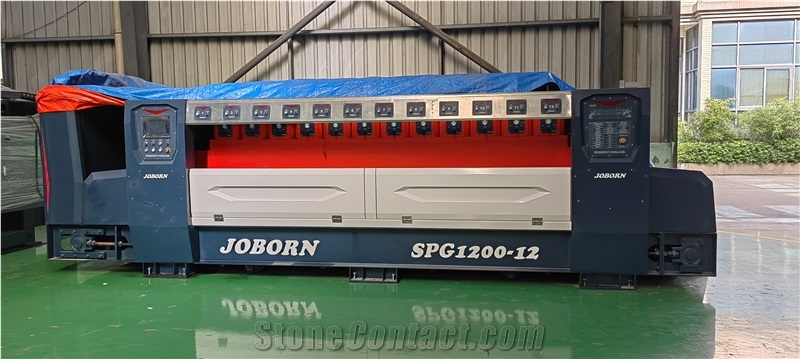

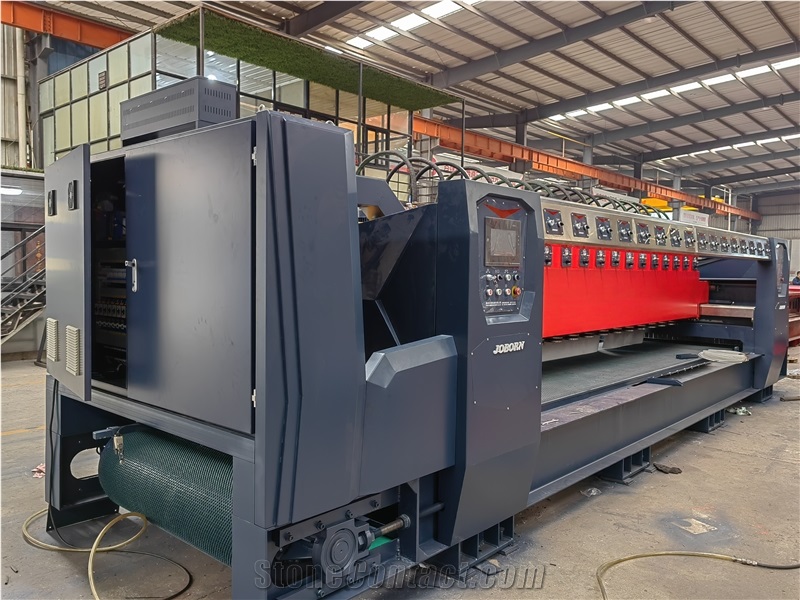

SPG/SPM Plus Automatic Marble And Granite Polishing Line

Name: SPG/SPM Plus Automatic Marble And Granite Polishing Line
Brand: FUJIAN JOBORN MACHINERY CO.,LTD.
SKU: 6594
Price: 96000 USD
Availability: InStock

FOB Price:$96000-204000

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 25~30 days after prepayment received

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

FUJIAN JOBORN MACHINERY CO.,LTD.

JOBORN MACHINERY

China level 4YR

Eatablished :Jul 28,2015

Main Product:

Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|

Contact supplier

Start Order

You may also like

Automatic Granite Tiles Polishing Machine

Granite Auto Polishing Line Machine For 1.3M Width

12 Heads Frankfurt Abrasive Head Marble Slab Polishing Machine

DAFON 24 Heads Automatic Marble Granite Polishing Machine

HLMJD-12C/20C Fully Automatic Stone Slab Polishing Line Machine

Product Detail
Company Profile

Overview
Components
Video

Machinery Function Features

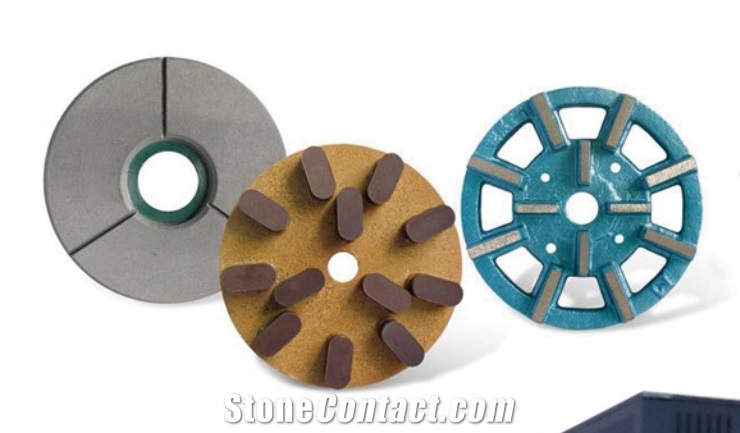

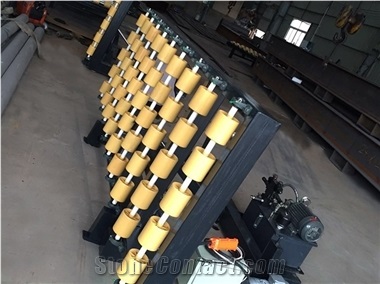

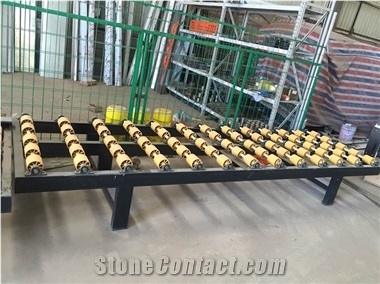

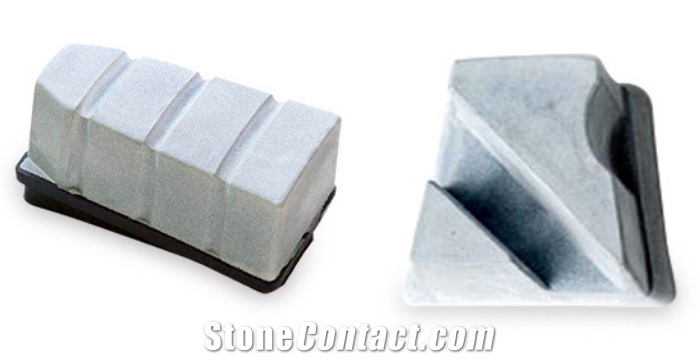

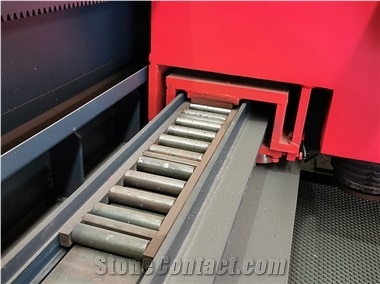

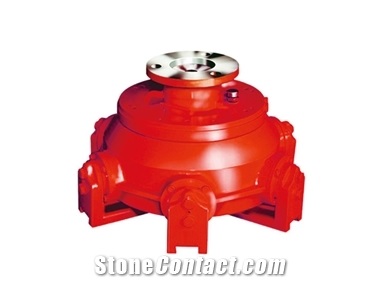

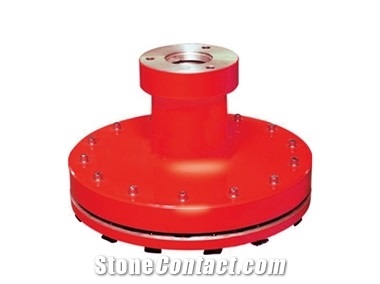

1.Fickert head for Granite polishing; 2.Frankfurt head for Marble polishing; 3.Side beam heavy type roller; 4.Taiwan famous brand pneumatic components; 5.Patented spindle structure; 6.Humanized human-computer interaction interface; 7.Imported and domestic premium brand electric components; 8.Plate shape detecting deivce; 9.Automatic lubrication system; 10.Roller table(optional); 11.Turnover roller table(optional);

Technical Data

Parameters	Unit	SPG Plus	SPM	SPM Pro	SPM Plus
Slabs max. processable width	mm	1200	2200	2200	2200
Slabs min. processable thickness	mm	10	10	10	10
Cooling water requirement	m3/h	2	1	1.5	2
Sound pressure level	dB	80	80	80	80
Slabs max. processable length	mm	as per need	as per need	as per need	as per need
Compressed air requirement	m3/h	1	1	1	1
Polishing heads/honing units motor power	kw	15	7.5/11	11	15
Number of polishing heads/honing units	nr	12/16/20/24	12/16/20/24	12/16/20/24	12/16/20/24
Total installed electrical power	kw	(No.of grinding heads)*15+35	(No.of grinding heads)*15+35	(No.of grinding heads)*11+32	(No.of grinding heads)*11+32
Polishing slabs efficiency	m2/h	25	35	42	50
Machine overall width	mm	2900~4300	2900~4300	2900~4300	2900~4300
Machine overall height	mm	3000	2200	3000	3000
Cleaning motor power	kw	15	7.5/11	11	15
Machine overall length	mm	10000~16600	7000~10800	9500~15500	11600~19400
Conveyor system forward speed	mm/min	0~4000	0~4000	0~4000	0~4000
Slab polishing speed	m/min	0~4	0~4	0~4	0~4

Software

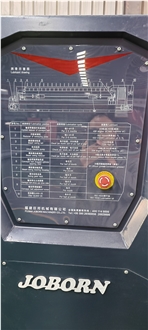

PLC intelligent control system is adopted, and man-machine dialogue is carried out through LCD touch screen to realize intelligent control.

Work Example

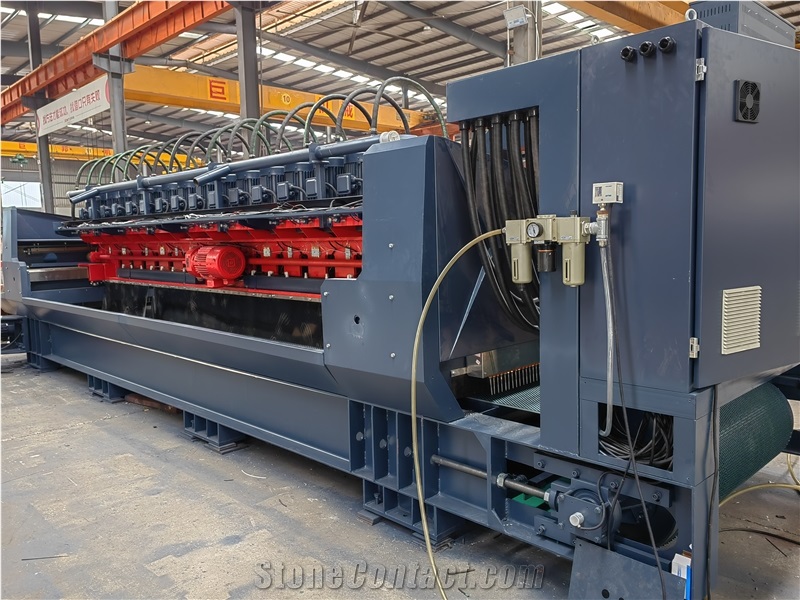

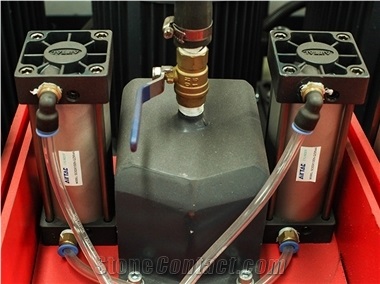

The grinding head is pneumatic lifting, the maximum processing height of the grinding head is 50mm, the grinding head adopts uniform elastic grinding head; Linear rolling guide rails are adopted for moving forward and backward.

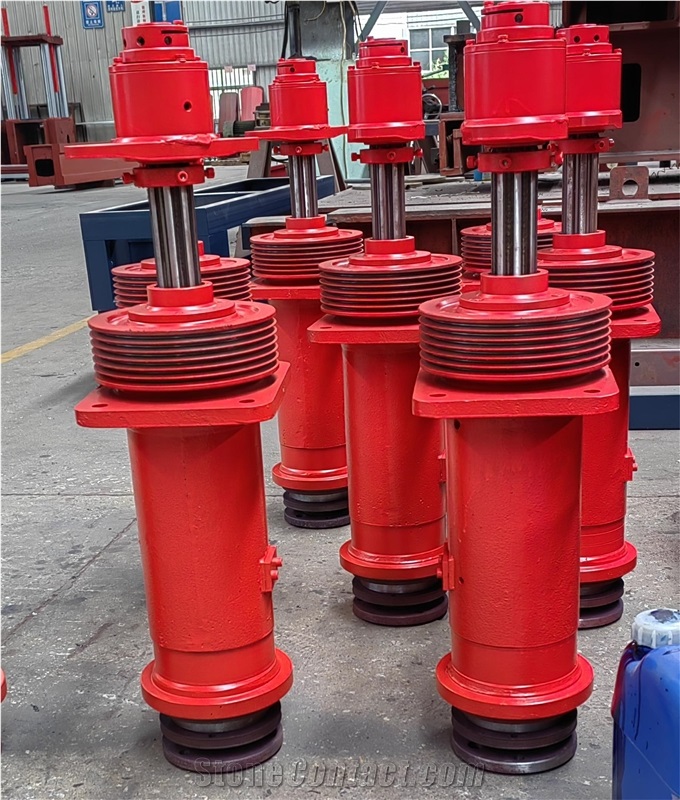

Adopt independent patented technology of spindle structure, plate shape detection device, automatic lubrication system;
PLC computer operating system, LCD touch screen (10 inches) using Chinese and English operation interface, the use of imported and domestic first-line brands of electrical components, air components of Taiwan Yadeke;

The main motor of grinding head is 7.5kW-4P/11kW-4P/15kW-4P;

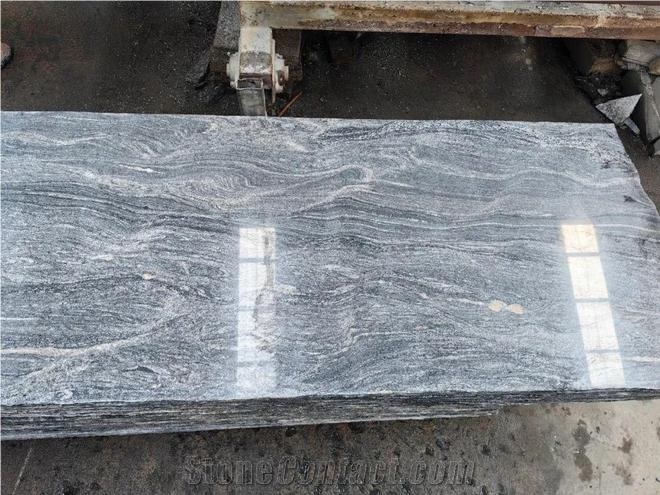

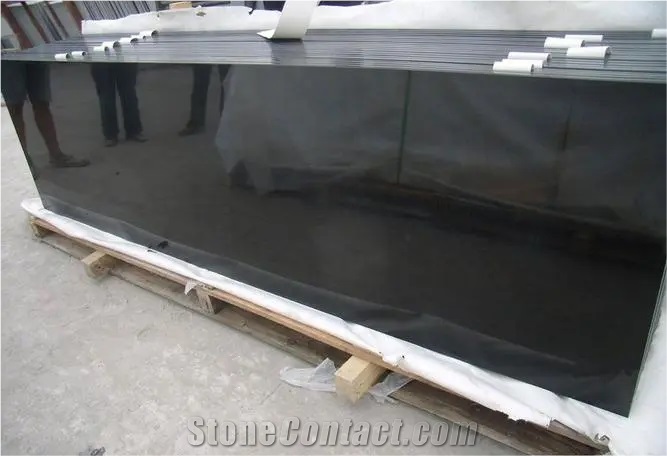

Processed Stone Photos
