Diama 40 TS3 Automatic Giant Disc Bridge Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Main Product:
Sawing Bridge Machines, Polishers, Lathe Machine, Block Cutter, Bridge Saw Machines, CNC Machine, Calibrating Machine, Waterjet Machine, Wire Saw|
You may also like
Machinery Function Features

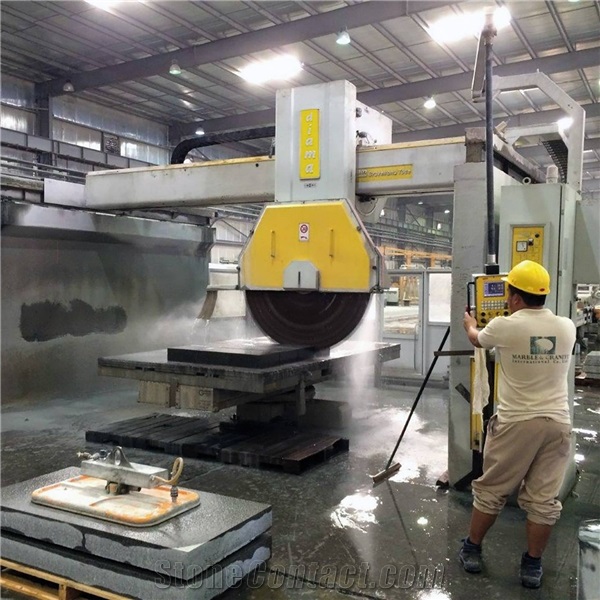

Large machine ideal for small, medium and large companies for cutting stone, marble and granite, both in manual and automatic cycle. This machine also performs complex profiles and shapes on a very large cutting surface.
Max blade size of 1600 mm (63 in) - 2000 mm (78.7 in) optional.
Machine built in cast iron and protection covers in stainless steel.

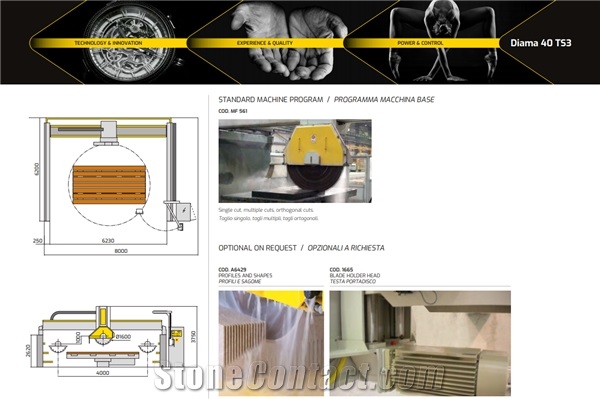

The standard machine is supplied with the following:

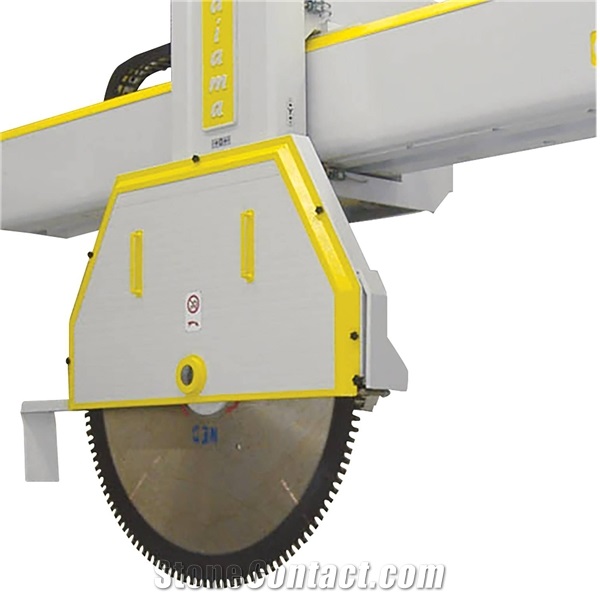

- fixed head for marble and granite;
- optical template scanner;
- manual rotating table (optional: programmable automatic table);
- eletronic variable speed on the disc motor;
- software POLIAX for control;

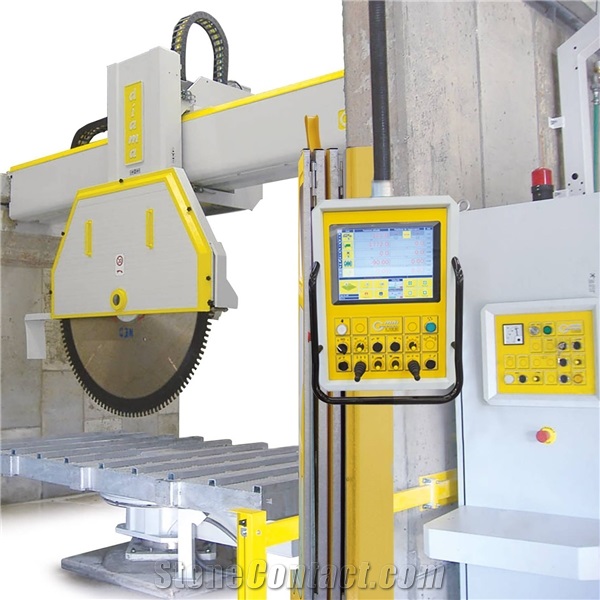

- 12" touchscreen colour display with LAN connection and USB port;
- folding door solid panel safety barriers.
Technical Data
Parameters |
Unit |
Diama 40 TS3 |
Approximate Weight |
Kg |
9500 |
Vertical disc diameter |
mm |
1600-2000 |
Fixed table dimension |
mm |
1750x3400 |
Disc cutting speed ( X axis) |
m/min |
0÷18 |
Blade locking flange diameter |
mm |
370 |
Machine height |
mm |
3750 |
Machine width |
mm |
6200 |
Cut/return stroke ( X axis) |
mm |
4000-3600 |
Max. cutting depth |
mm |
610-810 |
Vertical disc motor power |
kw |
25-35-45 (S 6) |
Spindle speed of rotation |
rpm |
670-720-950 |
Machine length(front) |
mm |
8000 |
Blade hole diameter |
mm |
60-80 |
Bridge transversal stroke (Y axis) |
mm |
3700 |
Cooling water (1.5 bar pressure) |
L/min |
60-70 (at 3 bar) |
Disch vertical stroke ( Z axis) |
mm |
1000 |
