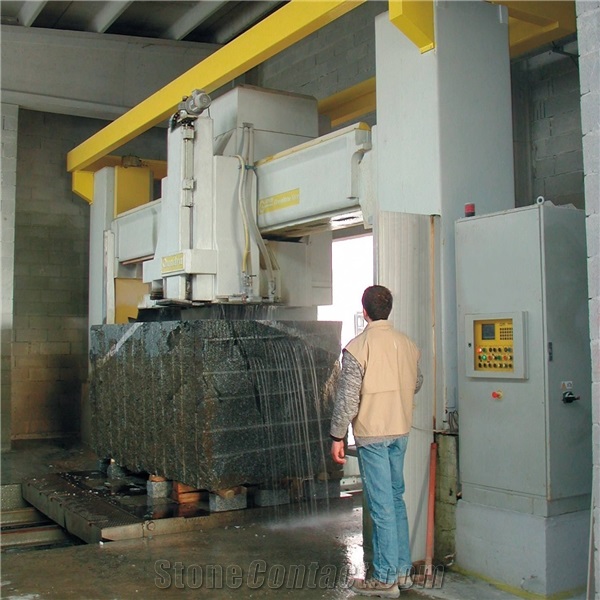

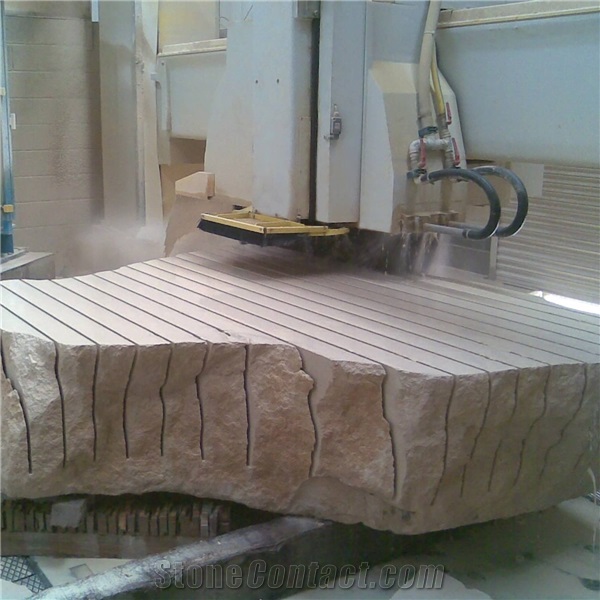

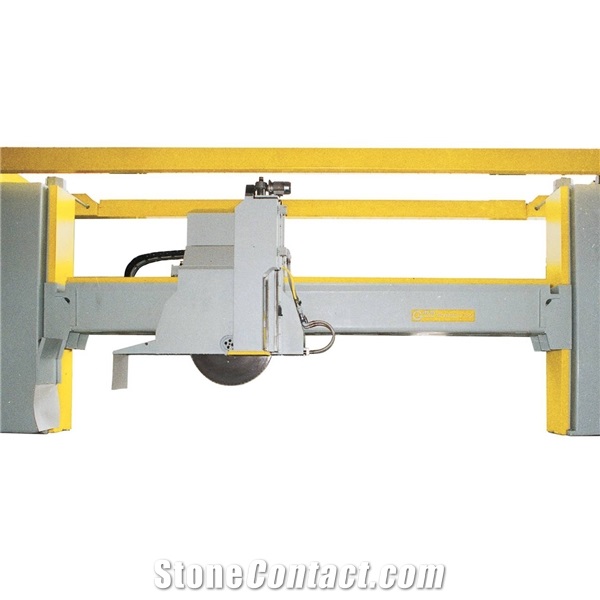

QUADRA G15 1600 / QUADRA G32 1600 Automatic Electronic Block Cutter for Granite With Max. 32 Blades
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Main Product:
Sawing Bridge Machines, Polishers, Lathe Machine, Block Cutter, Bridge Saw Machines, CNC Machine, Calibrating Machine, Waterjet Machine, Wire Saw|
Machinery Function Features
FEATURES

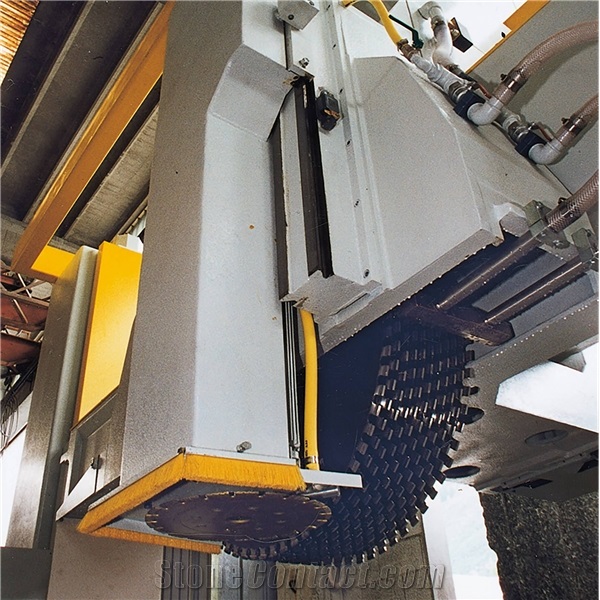

Max blade size of 1600 mm (63 in).
Up to 1200 mm of diameter, 32 blades can be mounted, for diameters ranging from 1300 to 1600 the following treatment is used: from 13 blades of maximum diameter 1100 mm and from 13 with diameter ranging from 1300 to 1600 mm.
Protections all made of stainless steel for a long-lasting life.
Attachments on request:
- inverter, electronic variator of the speed of rotation of the vertical blades (400-800 rpm) and of the horizontal blade (1400-2000 rpm) for power of 125-150 hp;
- extra 2,2 x 3 m trolley;
- additional machined rail to extend the loading length by multiples of 3 m;
- additional unworked rail to extend the loading length by multiples of 3 m;
- flange Ø 370 mm;
- spacers 280 - 370 mm.

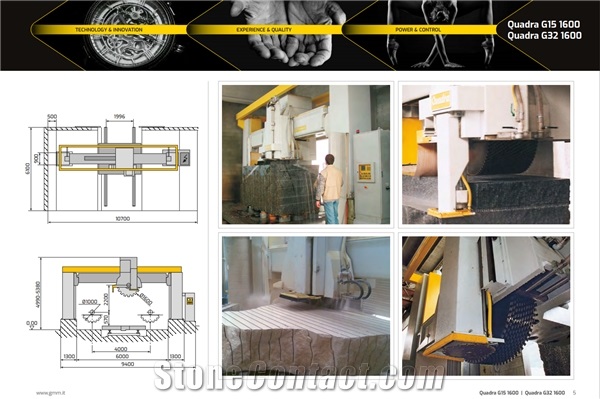

Technical Data
Parameters |
Unit |
QUADRA G15 1600 |
QUADRA G32 1600 |
Vertical disc motor power |
kw |
92 |
92 |
Additional travel of block holder trolley for block loading operations |
m |
on request multiple of 3 m |
on request multiple of 3 m |
Approximate Weight |
Kg |
18000 |
20000 |
Size of the trolley surface |
mm |
2200x3000 |
2200x3000 |
Usefull length of blade shaft |
mm |
315 |
630 |
Max. no. of vertical blades that can be installed |
n. |
15 |
32 |
Vertical disc diameter |
mm |
1600 |
1600 |
Horizontal disc motor power |
kw |
15 |
15 |
Variable cutting and return speeds |
m/min |
0÷15 |
0÷15 |
Standard total maximum travel of block holder trolley |
mm |
3800 |
3800 |
Disch vertical stroke ( Z axis) |
mm |
2200 |
2200 |
Max. horizontal blade depth of cut |
mm |
50 |
50 |
Horizontal blade flange |
mm |
230 |
230 |
Vertical blade flange |
mm |
280 |
280 |
Machine width |
mm |
6100 |
6100 |
Max. cutting depth |
mm |
610 (vertical) |
610 (vertical) |
Horizontal blade hole diameter |
mm |
50 |
50 |
Machine height |
mm |
4990-5380 |
4990-5380 |
Cut/return stroke ( X axis) |
mm |
4000 |
4000 |
Cooling water (1.5 bar pressure) |
L/min |
250 |
500 |
Machine length(front) |
mm |
10700 |
10700 |
Bridge transversal stroke (Y axis) |
mm |
2800 |
2800 |
Vertical disc hole diameter |
mm |
120 |
120 |
Horizontal disc diameter |
mm |
400 |
400 |
