Scultorob 7 axis robotic system for milling and turning operations
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving Robot
Usage:
Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting
Supplier
Main Product:
Innovative Robotic Solutions, Carving Robots, Snading-Polishing Robotic Systems|
You may also like
Machinery Function Features

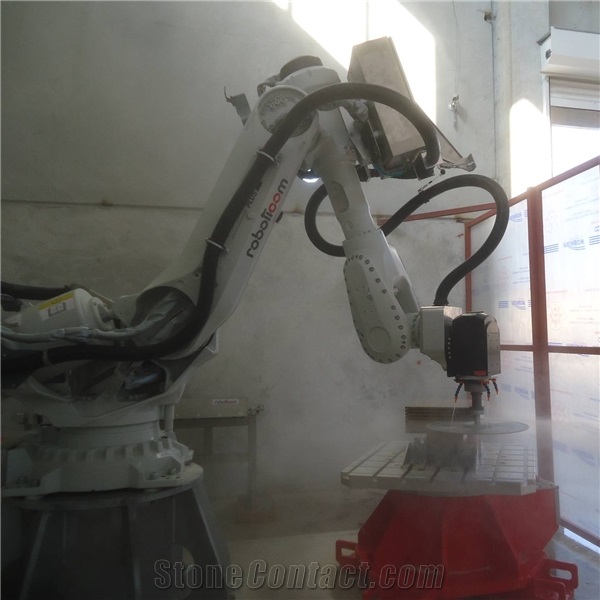

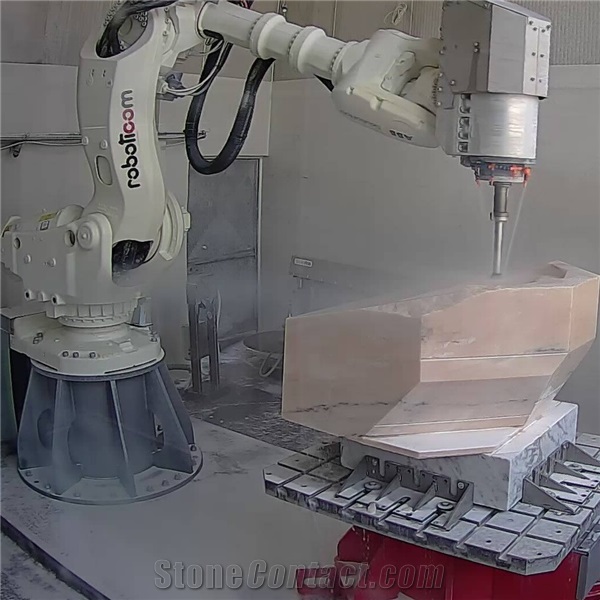

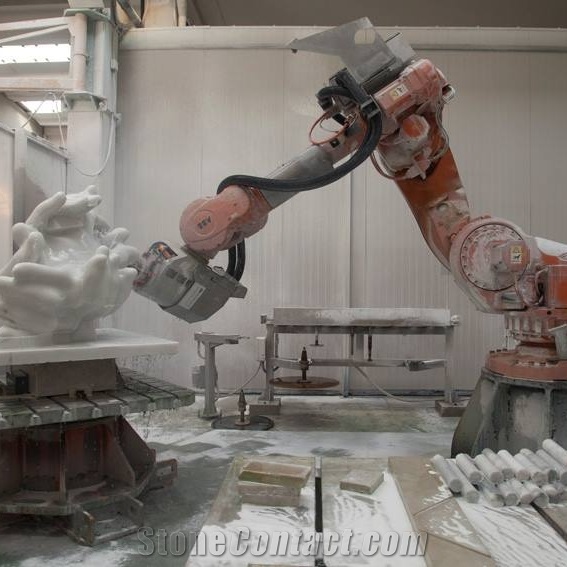

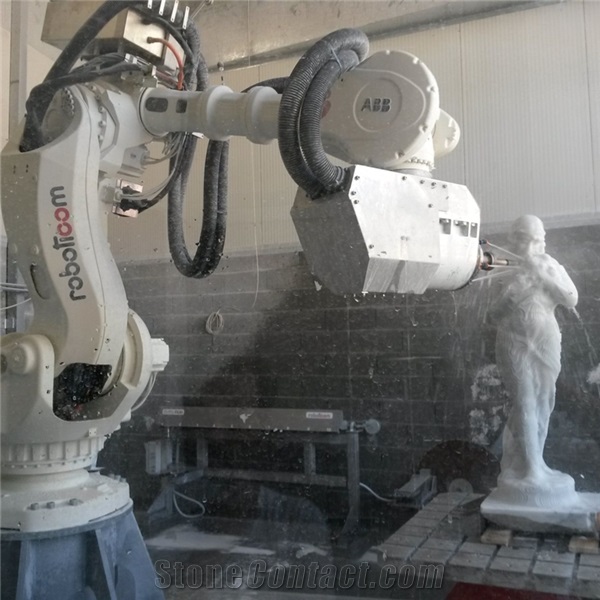

Scultorob is a 7 axis robotic system for milling and turning operations on models and prototypes made of resin, wood and other light materials. Scultorob can be used as a flexible milling centre, combined with the versality and easiness of ARPP®, the software expressly developed to bring out all its potential.
Roboticom takes pride in being among the first companies to develop robotic systems targeting the artistic marble industry. We have been steadily consolidating our market presence ever since. Our selling points are, without a doubt, the level of quality backing our solutions and our innate affinity to continuous innovation.
Technical Data
Parameters |
Unit |
L |
XL |
XXL |
Spindle nominal power |
kw |
15 |
20/30 |
30 |
Max. range of action |
mm |
1000 x 1000 |
1000 x 1000 |
1200 x 1200 |
Robot payload |
kg |
235 |
325 |
550 |
Power supply mean power consumption |
kW |
16 |
20/30 |
35 |
Standard voltahe/Nominal tension |
Volt |
200-600V three-phase 50-60Hz |
200-600V three-phase 50-60Hz |
200-600V three-phase 50-60Hz |
Tool Store standard capacity |
10 positions + 1 saw blade |
10 positions + 1 saw blade |
10 positions + 1 saw blade |
|
Touch Probe Measure accuracy |
mm |
< 0.05 mm |
< 0.05 mm |
< 0.05 mm |
Presetting Laser max. measurable saw blade diameter |
mm |
1200 |
1200 |
1200 |
Repeatability of positioning |
mm |
0.08 |
0.1 |
0.1 |
Installation footprint suggested dimensions |
m |
6 x 7 |
7x8 |
9x10 |
Work Place size (diameter x height) |
mm |
2800 x 1000 / 1500 x 2500 |
3000 x 1000 / 1500 x 3000 |
4000 x 1000 / 1800 x 4000 |
Spindle tool holder type |
ISO40 |
ISO50 |
ISO50 |
|
Speed rotation max. |
r/min |
12000 |
12000/10000 |
10000 |
Weight capacity on the wirst |
T |
15 |
25 |
40 |
Installed power |
kw |
23 |
35/55 |
75 |
Robot nominal working range |
mm |
2650 |
3100 |
4200 |
Number of interpolated axes |
nr |
7 |
7 |
7 |
Spindle disk max. diameter |
mm |
650 |
800/1000 |
1200 |
