  • thin stone veneer saw machine, corner cutting machine
  • thin stone veneer saw machine, corner cutting machine
Favorites

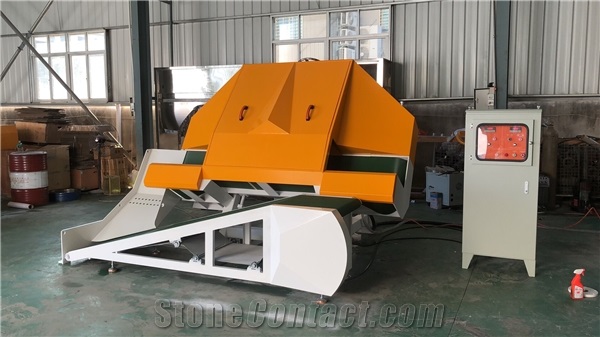

thin stone veneer saw machine, corner cutting machine

FOB Price:$10000-15000

Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment : Payment

Supplier

Fujian XinAn Machine Co., Ltd.

Fujian XinAn Machine Co., Ltd.
XinAn Machinery

ChinaChina idicon

Eatablished :Dec 27,2001

Main Product:

Bridge Saw, Stone Cutting Machine, Stone Polishing Macine, Wire Saw|

Contact supplier

Start Order

You may also like
Thin Veneer Saw Stone Wall Veneer Saw Corner Cutting Machine
Thin Veneer Saw Stone Wall Veneer Saw Corner Cutting Machine
Thin veneer saw stone wall veneer saw corner cutting machine
Thin veneer saw stone wall veneer saw corner cutting machine
DFLSX1200 Curbstone Cutting Machine Line
DFLSX1200 Curbstone Cutting Machine Line
Kerb Stone Edge Cutting Machine With Double Trolley
Kerb Stone Edge Cutting Machine With Double Trolley
Oil Sealed Track Edge Cutter- Single Disc Cutting Machine
Oil Sealed Track Edge Cutter- Single Disc Cutting Machine
  • Overview
  • Components
  • Trade Terms
  • Customer Case
Machinery Function Features
Main motor 30HP and 60HP for choice Blade speed adjustable Belt speed adjustable Return Conveyor is an optional
Technical Data
Parameters
Unit
WSD45-1200
Disc motor power
kw
45
Cooling water (minimum pressure 1.5 bar)
L/min
58
Forwarding/Spindle motor power
kw
45
Machine width (W)
mm
2800
Discs number
pcs
1
Machine height (H)
mm
2200
Installed electrical power
kw
46.5
Max. workable material width
mm
350
Minimum strip length
mm
500
Disc/Spindle travelling speed
m/min
0-900
Min. workable material width
mm
350
Machine length (L)
mm
4000
Maximum cutting width
mm
350
Discs diameter
mm
1200
Disc flange
mm
220
Approximate weight
Kg
5000
Average level of sound power
dB
80
Maximum workable thickness
mm
350
Processed Stone Photos
  • Processed Stone Photos

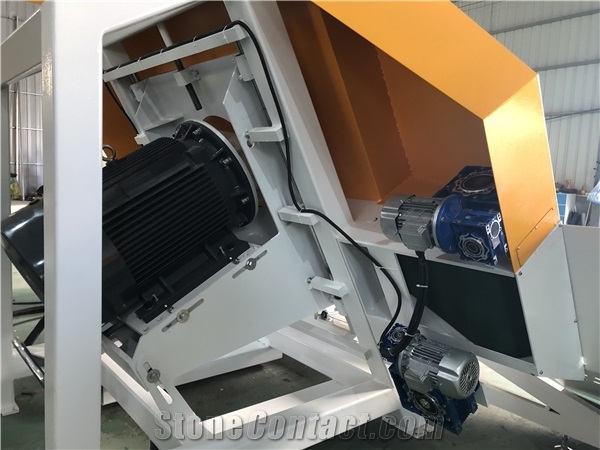

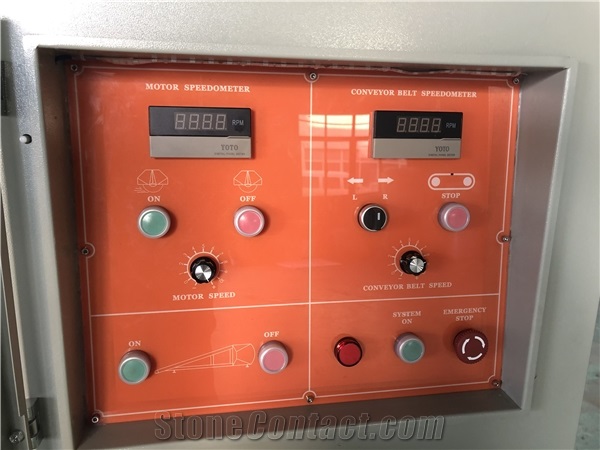

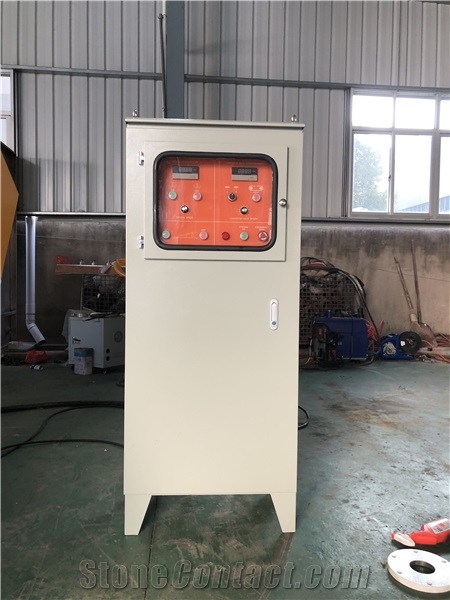

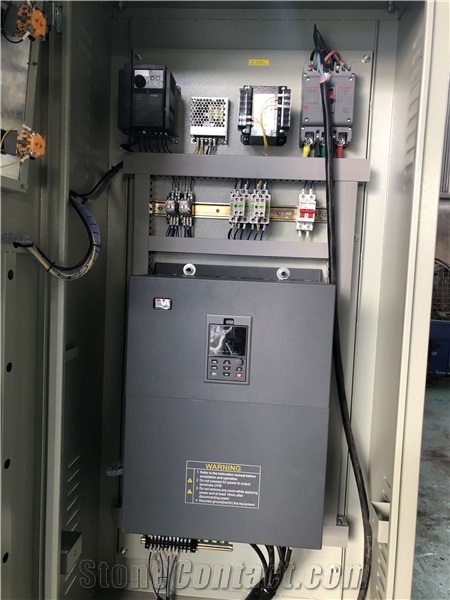

Components
Consumables

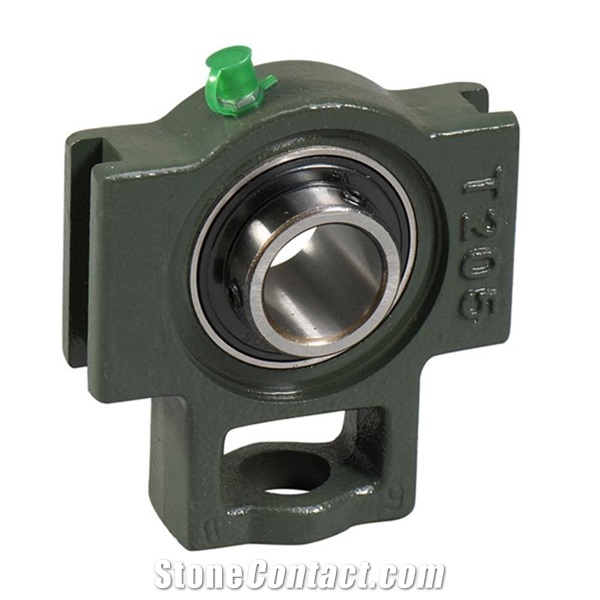

  • Bearning

    Bearning
