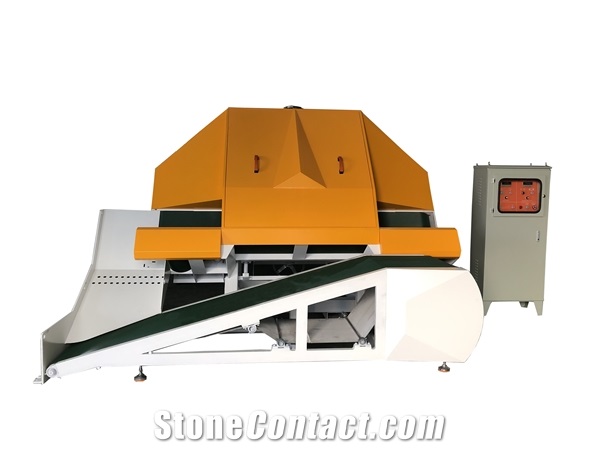

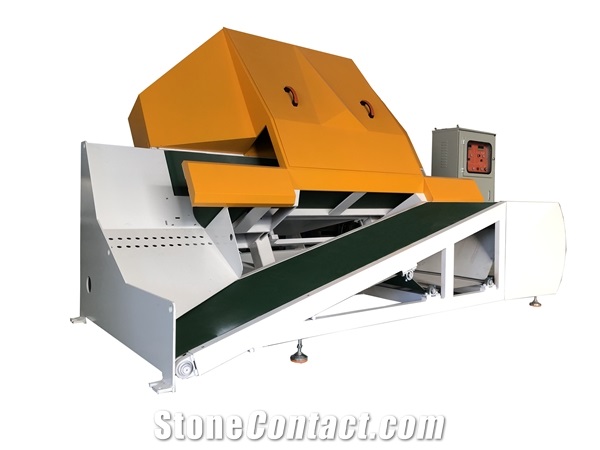

Mighty Stone Thin Veneer Corner Cutting Saw

FOB Price:$10000-18000

Type: Stone Factory MachinesStone Tile Cutting MachinesSingle Disc Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 20 days
Warranty:12 Months
Install and Guarantee:Remote guidance installation
Maintenance:Regular guidance & maintenance
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW
Payment : Payment

Supplier

Fujian XinAn Machine Co., Ltd.

Fujian XinAn Machine Co., Ltd.
XinAn Machinery

ChinaChina idicon

Eatablished :Dec 27,2001

Main Product:

Bridge Saw, Stone Cutting Machine, Stone Polishing Macine, Wire Saw|

Contact supplier

Start Order

You may also like
ANYTH-350 Cross Stone Cutter
ANYTH-350 Cross Stone Cutter
Multi Functional 5-Axis Special Cutting Mill Single Disc Cutting Machine
Multi Functional 5-Axis Special Cutting Mill Single Disc Cutting Machine
TJZD-Q95-9 Manual Edge Cutting Machine
TJZD-Q95-9 Manual Edge Cutting Machine
Kerb Stone Edge Cutting Machine With Double Trolley
Kerb Stone Edge Cutting Machine With Double Trolley
Wall Molding Saw WLS 500 For Precise Cutting Of Miters
Wall Molding Saw WLS 500 For Precise Cutting Of Miters
  • Overview

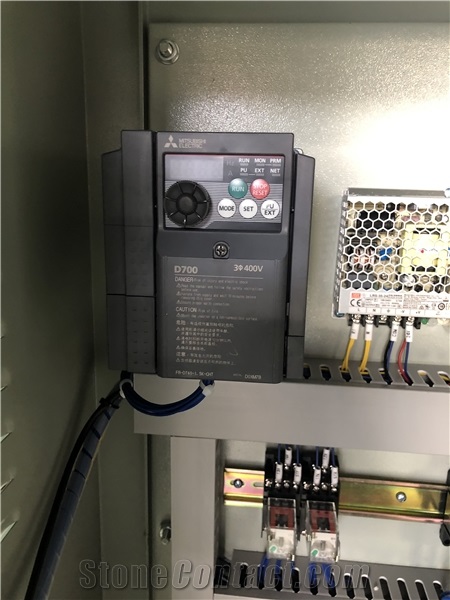

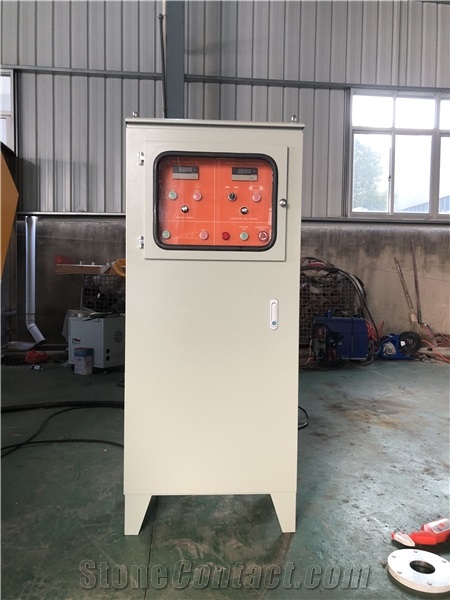

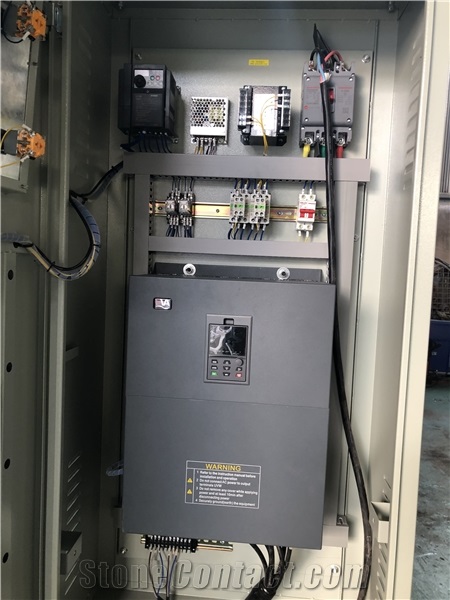

  • Components
  • Video
  • Trade Terms
  • Customer Case
Machinery Function Features
Powerful 45kw 60 Hp main motor Man motor with inverter Belt motor with inverter Return conveyor optional
Technical Data
Parameters
Unit
WSD-45
Installed electrical power
kw
46.6
Discs diameter
mm
1000-1200
Maximum workable thickness
mm
350
Minimum strip length
mm
100
Forwarding/Spindle motor power
kw
45
Min. workable material width
mm
100
Machine width (W)
mm
2800
Average level of sound power
dB
80
Disc flange
mm
220
Discs number
pcs
1
Machine length (L)
mm
4000
Cooling water (minimum pressure 1.5 bar)
L/min
58
Machine height (H)
mm
2200
Disc motor power
kw
45
Max. workable material width
mm
350
Approximate weight
Kg
5000
Disc/Spindle travelling speed
m/min
0-900
Maximum cutting width
mm
500
Processed Stone Photos
  • Processed Stone Photos

Components
Consumables

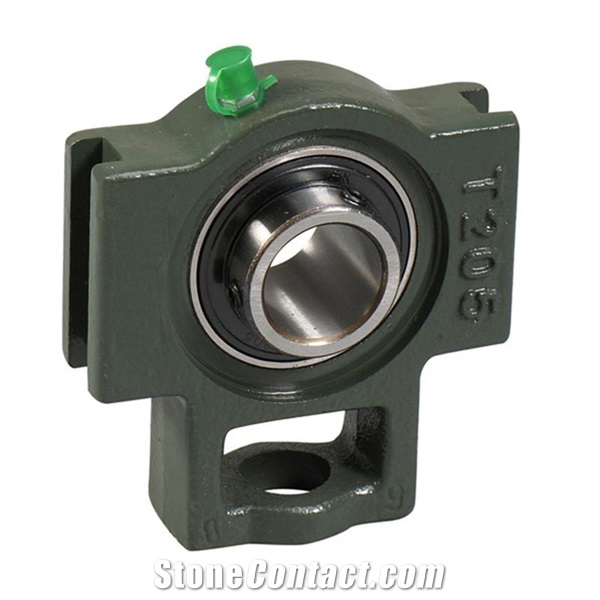

  • Bearning

    Bearning
