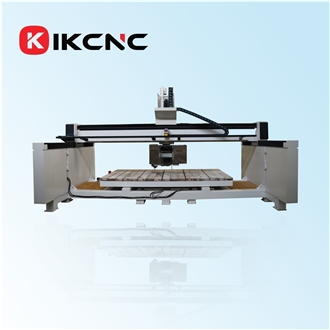

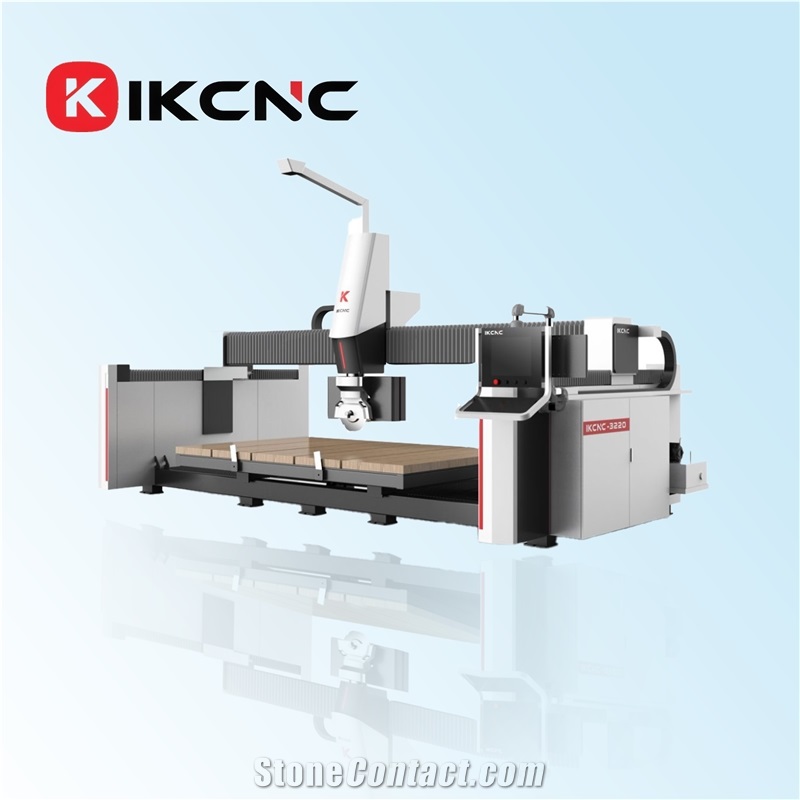

Intelligent 5-Axis Bridge Cutting Machine IKCNC-3520-500
FOB Price:$23200-24100
Supplier
Eatablished :Dec 26,2014
Main Product:
5 Axis CNC Bridge Saw, 4+1 CNC Bridge Saw , 45° Miter Cutter, Stone CNC Engraving Machine, Cutting And Edging Work Center, Trepanning Machine|
5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plateand a variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval,diamond, circle, rim of horse's belly, chamfer at anyangle, special-shaped copying and engraving). lt has the advantages of fast speed, high cutting precision, simple and intelligent operation, suitable for cutting slab, marble, granite, quartz stone, and other stone processing. lt is the first choice of project and stone processing enterprises.
Parameters |
Unit |
IK-3520-500 |
Worktable turn-over degree |
° |
0-90（Automaatic） |
Max.width of the cut slab |
mm |
2000 |
Dimensions of the work table(L×W) |
mm |
3500*2000 |
Disc diameter |
mm |
200/230(optional） |
Worktable Weight |
T |
5.5 |
Max. workable thickness |
cm |
12 |
Transversal stroke speed (Y displacement speed) |
m/min |
20 |
Bridge transversal stroke(Y axis travel) |
mm |
2000 |
Hydraulic station motor power |
kw |
2.2 |
Installed electrical power |
kw |
1.5 |
Tools holder head inclination(A axis blade rotation) |
° |
0-90 |
Machine length |
mm |
5900 |
Disc motor power |
kw |
24 |
Max. liftable weight with all the vacuum cups activated |
Kg |
200 |
Max. revolutions of the spindle unit |
r/min |
0-4000 |
Vertical cutting spindles motor power |
kw |
18.5 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
20 |
Machine width |
mm |
3100 |
Max.length of the cut slab |
mm |
3500 |
Max. cutting depth |
mm |
12 |
Cooling water requirement(1.5 bar min. pressure) |
m3/s |
3 |
Head motor power |
kw |
18.5 |
C axis blade rotation |
° |
365 |
Crossbeam motor power |
kw |
1.5 |
Head raising/lowering stroke(Z axis travel) |
mm |
400 |
Number of vertical cutting spindles |
nr |
1 |
Air consumption |
L/min |
20 |
Machine height |
mm |
3300 |
The system: CUTCAM
System function: Includes photo, intelligent layout, automatic adsorptionfunction.
Features: efficient andconvenient,save time andlabor

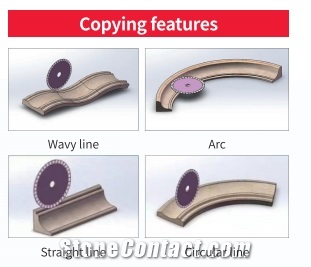

3D copying features: All kinds of lines are generated directly in the software, Simple and intuitive, no programming required
Custom function: Various sizes can be customized according to customer needs, and complex graphics can be cut by entering simple parameters. No need to import CAD drawing, simple and convenient, greatlyimprove production efficiency.
Ikcnc 5 Axis CNC Bridge Saw
The machine is an integrated five-axis bridge cutting machine, for the different specifications of the plate and variety of special-shaped copying processing(such as polygon, triangle, fan, countertop, oval, diamond, circle, rim of horse's belly, chamfer at any angle, special-shaped copying and engraving). It has the advantages of fast speed, high cutting precision, simple and intelligent operation, Suitable for cutting slab, marble, granite, quartz stone, and other stone processing. It is the first choice of project and stone processing enterprises.
-
basin
-
A table of horse-belly noodles
-
Wavy line
-
-
-
-
-
-
-

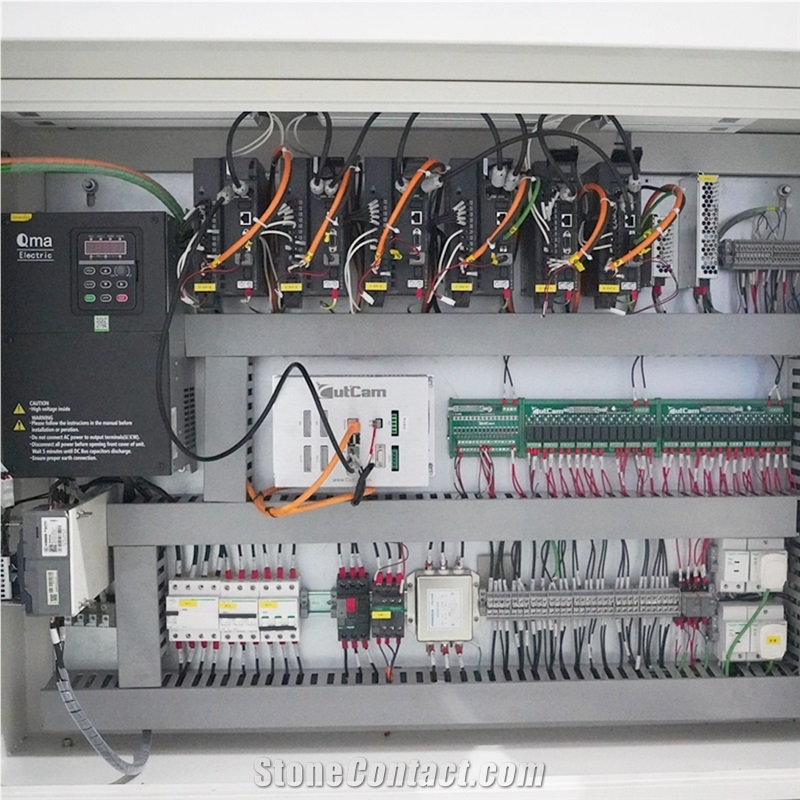

computer controller
-

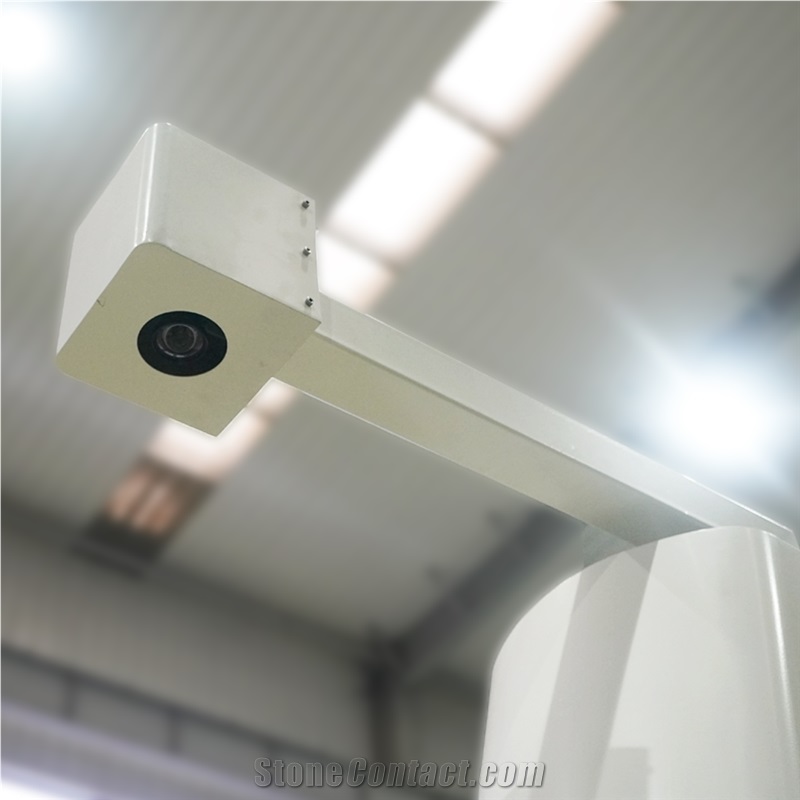

camera
¥Payment Required
-

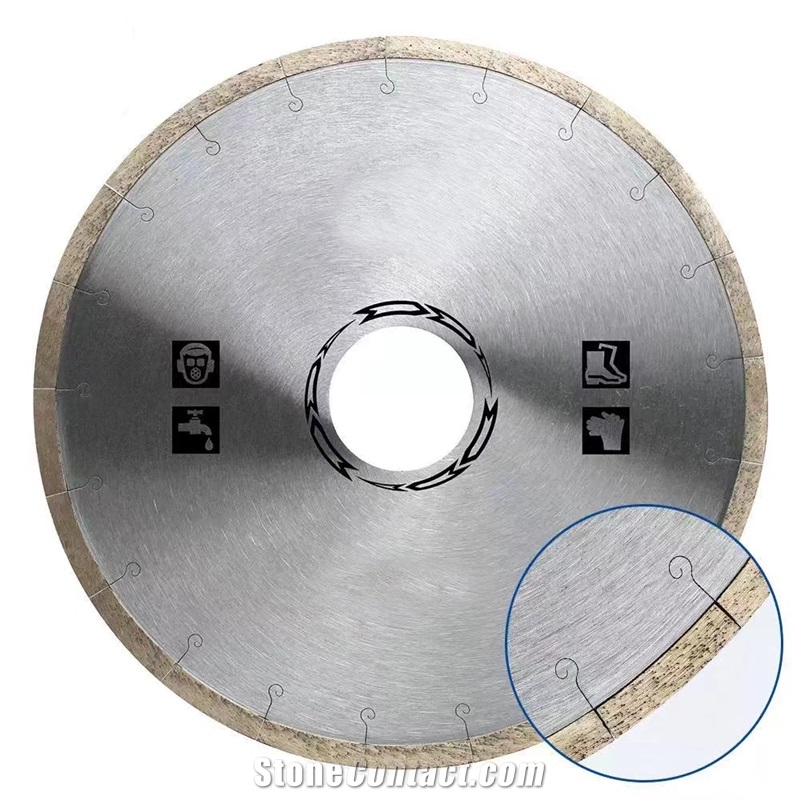

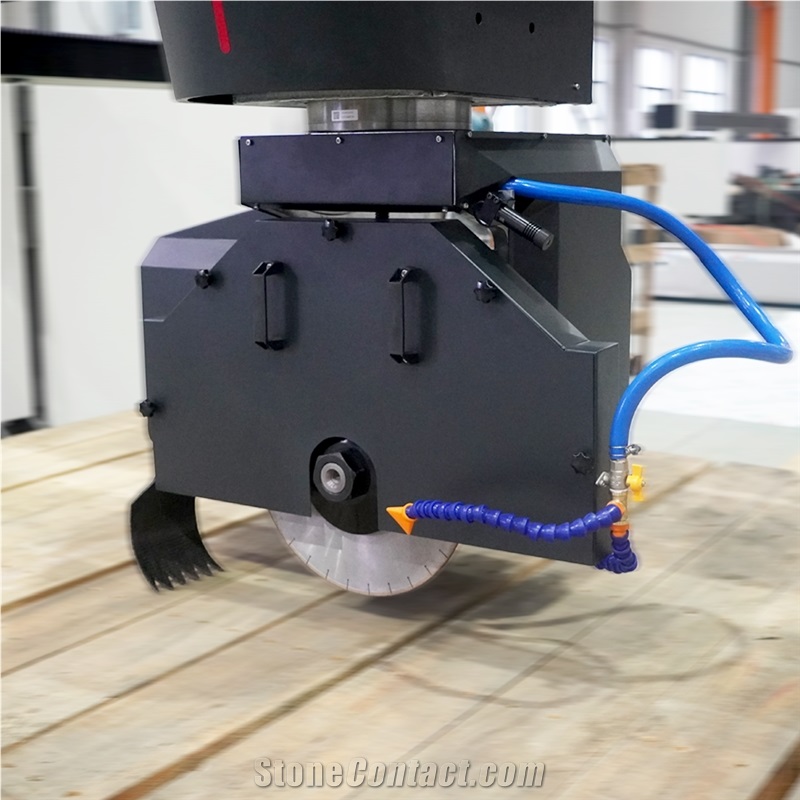

blade
