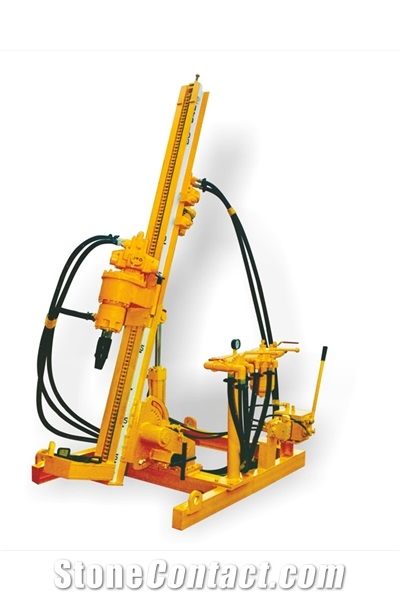

JRD-100 Model Skid Mounted Drilling Rig Quarry Drill Machine
FOB Price:
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic DTH Drill Machine
Usage:
Granite, Marble, Limestone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,1993
Main Product:
Rock Drilling Equipments|
Machinery Function Features
Special Heavy Duty SKID Mounted Drilling Rig for drilling Angular holes from 20 degree horizontal to Vertical specially used for drilling Grout holes for Strengthening of Foundation. The Mast is capable of handling 76mm dia ODX1.5mtrs (5ft) Drill Pipe fitted with Rotation unit & feed unit. The Mast is raised & lower by Hydraulic Cylinder operated by direction control valve & double lock Check Valve.
SPECIAL FEATURES
Stable Drilling capabilities
Structural designed for extra rigidity
Anchoring arrangement ensures perfect stability during drilling
Centralized sensitive controls with auto feed arrangement ensure easy operation and reduction of operation fatigue
Technical Data
Parameters |
Unit |
JRD-100 |
Drill Rod Diameter |
mm |
76 |
Overall Width |
mm |
1500 |
Overall Length |
mm |
2000 |
Drill Rod Length |
m |
1.5 |
Feed Unit Pull Down Force |
kN |
21.5 |
Feed Unit Travel Length |
mm |
1650 |
Rotary Head Max. Torque |
Nm - lbf.in |
1250 |
Type of Feed (Cahin/Tire/etc.) |
Chain Feed |
|
Total Weight |
Kg |
650 |
Working Pressure |
bar |
10.5 (Min) up to 14 (Max) |
Rotary Head Speed |
r/min |
0~60 |
Feed Length (MAST) |
mm |
2800 |
Drilling Depth |
m |
30 (Vertical Position) |
Hole Diameter |
mm |
90 ~ 115 (3½” ~ 4½”) |
Overall Height |
mm |
1500 |
Free Air Delivery |
CFM |
450 (min) up to 550 (max) |
