Inwell Rig Light Weight INW-101 Quarry Drilling Machine
FOB Price:
Type:
Stone Quarry MachinesQuarry Drilling MachineHydraulic Drill Machine
Usage:
Granite, Marble
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 01,1993
Main Product:
Rock Drilling Equipments|
Machinery Function Features

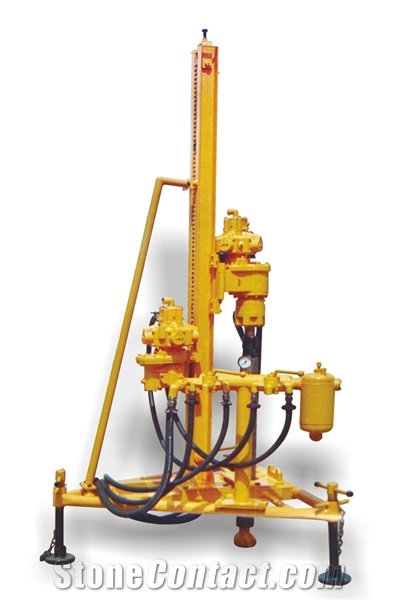

Inwell type light weight Rig capable of drilling Holes Dia90 – Dia115mm to a depth of 30 meters used for drilling & blasting purposes in open cast mines & Construction works. The rig consists of chain feed mast to handle 73/76mm dia OD x 1.5 (5ft.) long drill pipe fitted with Rotation Unit and Feed unit mounted on Triangular bottom frame with three adjusting screws, controls, Hoses and Air-line Lubricator.
SPECIAL FEATURES
Stable Drilling capabilities
Structural designed for extra rigidity
Anchoring arrangement ensures perfect stability during drilling
Centralized sensitive controls with auto feed arrangement ensure easy operation and reduction of operation fatigue
Technical Data
Parameters |
Unit |
INW-101 |
Speed |
rpm |
0~60 |
Rotary Head (Torque) |
Nm |
1250 |
Mounting |
Triangular bottom frame |
|
Total weight |
Kg |
500 |
Hole diameter Φ |
mm |
90 ~ 115 |
Free Air Delivery |
CFM |
300 (min) up to 450 (max) |
Transport Width |
mm |
1500 |
Total Length (Feed) |
mm |
2850 |
Transport Length |
mm |
3000 |
Recommended Air Compressor Working Pressure |
bar |
7(Min) up to 14 (Max) |
Usable extension rods dia Φ |
mm |
76 |
Drilling Depth (Vertical Position) |
mt |
30 (under favorable drilling conditions) |
Feed Force |
kN |
21.5 |
Usable extension rods length |
m |
1.5 |
Transport Height |
mm |
900 |
Travel Length |
mm |
1600 |
