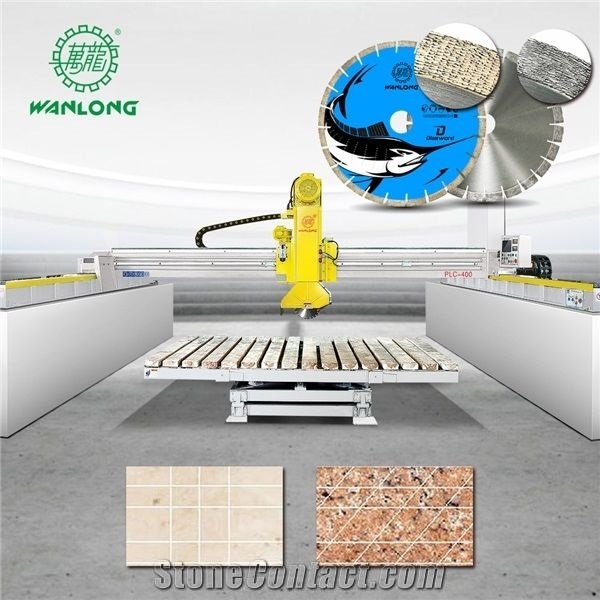

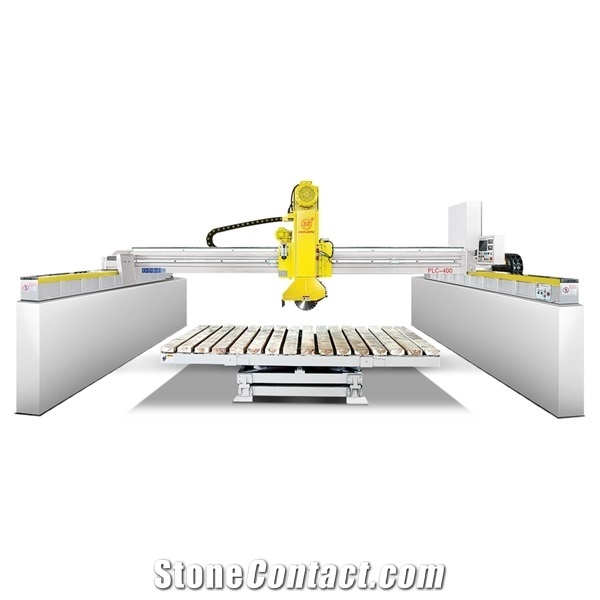

PLC-400, PLC-600, PLC-700 Laser Bridge Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Artificial Stone, Basalt, Quartzite
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
You may also like
Machinery Function Features
PLC-400 Stone Cutting Machine
1)Bridge Edge Cutting Machine
2)Automatic Cutting Machine
3)Granite/Marble/Sandstone slab edge cutting
Machine Models
1. PLC-600 Bridge Saw
Blade Diameter: 350/600mm or 14" /23" Blade
Cutting Slab Size: Max. 3200x2000x180mm
Precision: +/-0.2mm
15Kw main Motor
Machine Certificates
CE Certificate
Exporting to Europe, USA and Australia, Mid-East
Technical Data
Parameters |
Unit |
PLC-400 |
PLC-600 |
PLC-700 |
Head motor power |
kw |
15 |
15 |
18.5 |
Tools holder head inclination(A axis blade rotation) |
° |
360 |
360 |
360 |
Machine width |
mm |
4800 |
4800 |
5500 |
Worktable turn-over degree |
° |
0-85 |
0-85 |
0-85 |
Dimensions of the work table(L×W) |
mm |
3200x2000 |
3200x2000 |
3200x2000 |
Max. cutting depth |
mm |
80 |
80 |
80 |
Cooling water requirement(1.5 bar min. pressure) |
m3/h |
4 |
4 |
4 |
Machine length |
mm |
6000 |
6000 |
6000 |
Machine height |
mm |
2800 |
2800 |
3360 |
Max.width of the cut slab |
mm |
2000 |
2000 |
2000 |
Max.length of the cut slab |
mm |
3200 |
3200 |
3200 |
Approximate weight without table |
Kg |
5000 |
5000 |
6400 |
Disc diameter |
mm |
400 |
600 |
700 |
C axis blade rotation |
° |
0-90 |
0-90 |
0-90 |
