Laser Bridge Stone Cutting Machine Plc-700, CNC Bridge Cutting Machine
FOB Price:$22800-23000
Supplier
Eatablished :Jan 08,1993
ISO9001-2000,SGS,TUV
Main Product:
Stone Cutting Machine, Stone Machine, Stone Polishing Machine, Diamond Segment, Diamond Saw Blade, Bridge Saw|
Parameters |
Unit |
Plc-700 |
Max. workable thickness |
mm |
200 |
Machine height |
mm |
3360 |
Max.length of the cut slab |
mm |
3200 |
Worktable Weight |
Kg |
1000kg |
Number of vertical cutting spindles |
nr |
1 |
Disc diameter |
mm |
700 |
Machine width |
mm |
5500 |
Approximate weight without table |
Kg |
5400 |
Max.width of the cut slab |
mm |
2000 |
Horizontal stroke(X axis travel) |
mm |
3200 |
Machine length |
mm |
6000 |
Min.dimensions of the liftable piece |
mm |
3200*2000 |
Dimensions of the work table(L×W) |
mm |
3200*2000 |
Max. cutting depth |
mm |
230 |
Worktable turn-over degree |
° |
360° |
Disc motor power |
kw |
18.5 |
Air consumption |
m3/h |
4 |
Max. dimensions of the liftable piece |
mm |
3200*2000 |

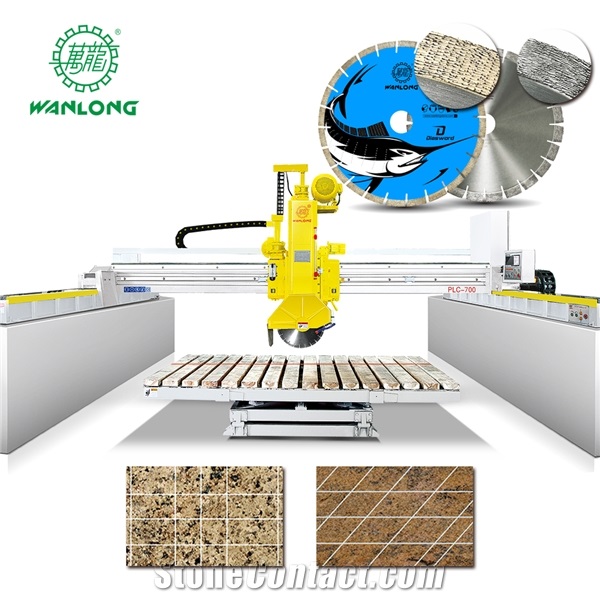

PLC-700 Laser Bridge Cutting Machine:
PLC-700 is a computerised machine with a cutting head that can tilt 45 degree. The touch-sensitive screen, magnetic grid system etc that make the machine high accuracy, stability and efficiency in cutting. It is particularly an ideal machine for high-value and large size thicker marble , granite etc slab processing.
| PLC-700 | ||
|---|---|---|
| Max. diameter of blade | mm | 350-700 |
| Main motor power | KW | 18.5 |
| Table dimensions(L x W) | mm | 3200*2000 |
| Blade rotation degree | n° | 0-45° |
| Table rotating degree | n° | 90°-360° |
| Max. cutting size(L x W x H) | mm | 3200*2000*230 |
| Overall dimensions(L x W x H) | mm | 6000*5500*3360 |
| Water consumption | m³/h | 4 |
| Approximate weight | Kg | 6400 |
Features:
1. The blade can be tilted 45°and chamfer the edge.
2. Bridge structure with wide crossbeam, large size of slab cutting available.

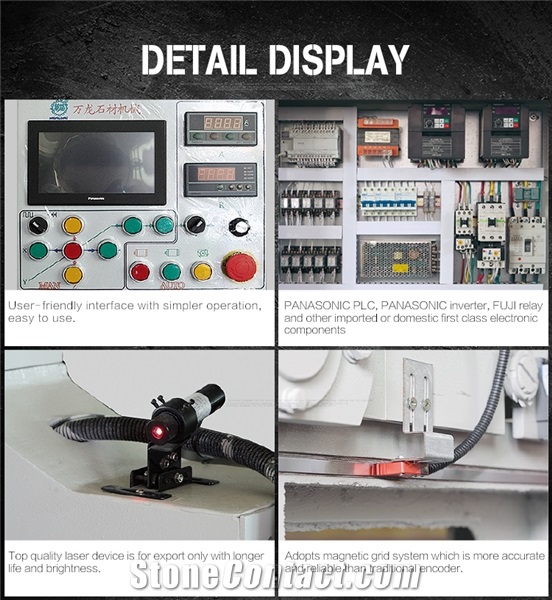

3. Equipped with infrared device, precise cutting location reachable.
4. Dustproof design of the slide track ensures the precise guide movement & long lifespan
5. PLC control system, programmable, fully automatic & smooth cutting
6. Precise movement of head in X, Y, Z directions by rack & gear
7. Electric parts of Japanese famous brand adopted, reliability guaranteed
8. Touch-sensitive operating system, friendly human-machine interface
9. Worktable can be automatically rotated 90°or 360°, flip 85°,which make loading/unloading and changing the cutting direction easier.
