4 Axis bridge cutting machine GQ-3220B, CNC Bridge Cutting Machine

Name: 4 Axis bridge cutting machine GQ-3220B, CNC Bridge Cutting Machine
Brand: Jinan Ganger Cnc Technology.Co.,Ltd.
SKU: 4505
Price: 16000 USD
Availability: InStock

FOB Price:$16000-18000

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30DAYS

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Online software upgrade, Remote troubleshooting, Field troubleshooting

Trade Terms

Delivery Details: FOB,CFR,CIF,EXW

Payment :

Supplier

Jinan Ganger Cnc Technology.Co.,Ltd.

GANGER

China

Eatablished :Mar 10,2021

Main Product:

Bridge Saw Cutting Machine, Stone Cnc Machine, Bridge Cutting Machine, Quartz Cnc Machining Center, Bridge Saw Cutter Slabs, Bridge Saw Cutting|

Contact supplier

Start Order

You may also like

4-Axis+ Router CNC Stone Bridge Cutting Machine For Granite Countertop

Pressure-Retaining Valve For Bridge Cutting Machines

New Champion 700 CNC Bridge Saw Machine - 5 Axes Milling Machines

Intelligent 5-Axis Bridge Cutting Machine IKCNC-3520-500

Kerb Stone Edge Cutting Machine With Two Worktables

Product Detail
Company Profile

Overview
Components
Video
Trade Terms

Machinery Function Features

5 Axis Bridge Cutting Machine GQ-3220D Features: XYZAC five axis, A axis 0 to 90 degrees automatic rotation, C axis 0 to 360 degrees automatic rotation. Cutting straight line, circular, arc, grid point. slotting, edging, beveling, chamfering and cutting; Curved surface, engraving, cutting holes, and contouring are all available. By infrared ray to confirm the position of the workpiece. Intelligent on-demand typesetting, saving time and materials. Applicable industry & material Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials. Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.

Technical Data

Parameters	Unit	GQ-322B
Head raising/lowering stroke(Z axis travel)	mm	200
Approximate weight without table	Kg	4500
Installed electrical power	kw	25
Max. revolutions of the spindle unit	r/min	3000/6000
Max number of interpolated axes	nr	5
Bridge transversal stroke(Y axis travel)	mm	2000
Disc diameter	mm	350
Disc motor power	kw	11
Horizontal stroke(X axis travel)	mm	3200
C axis blade rotation	°	0°- 135°

Software

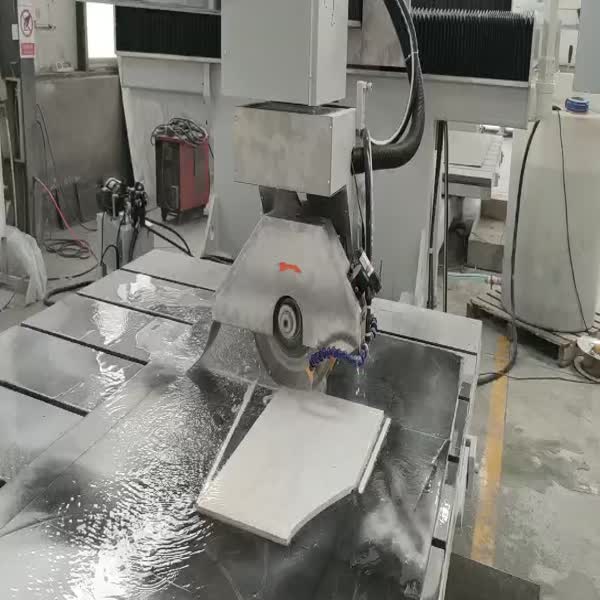

4 Axis Bridge Cutting Machine GQ-3220B

Machine Features:

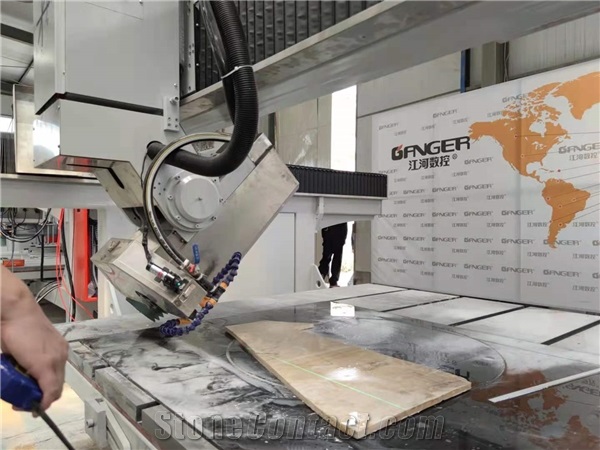

1. XYZC four axis, C axis 0 to 135 degree automatic rotation,horizontal, vertical and diamond cutting, and miter 45° cutting.

2. PLC control system, input operating parameters on the control panel, and the cutting process is automated and programmed.

3. By infrared ray to confirm the position of the workpiece.

4. Whole steel structure machine body ensuring high stability.

5. Running stability, high precision, high speed.

6. Compact and rational design, small size machine, convenient to handle and move.

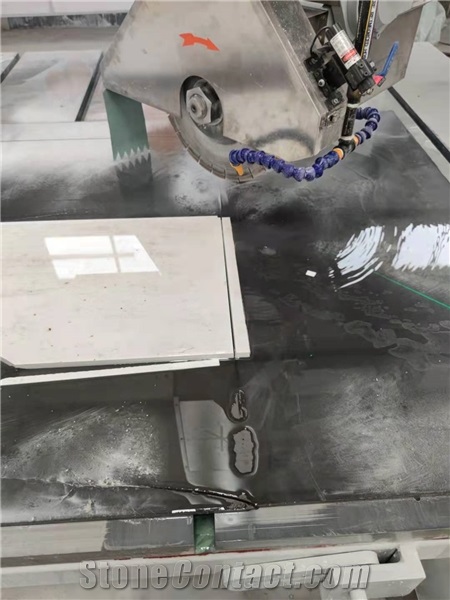

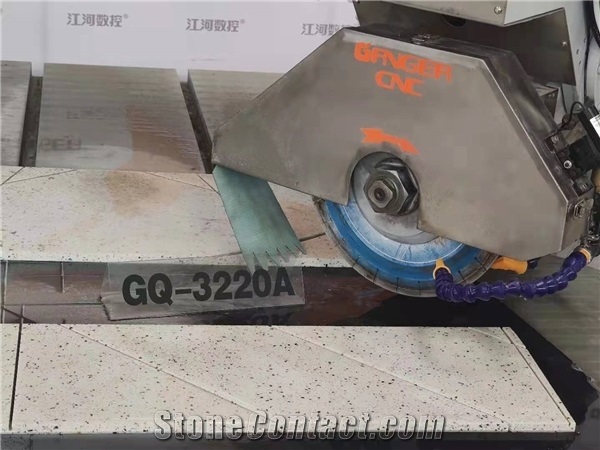

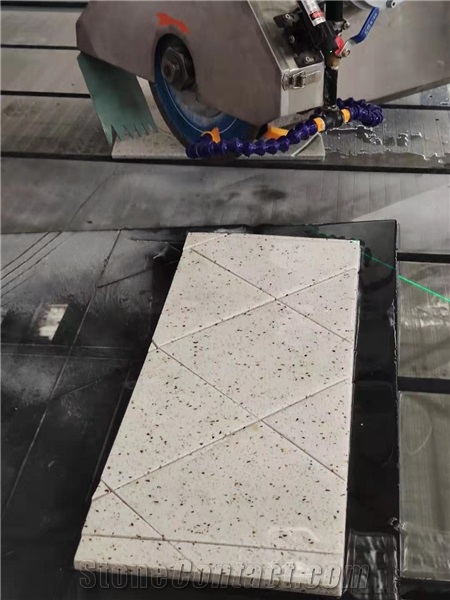

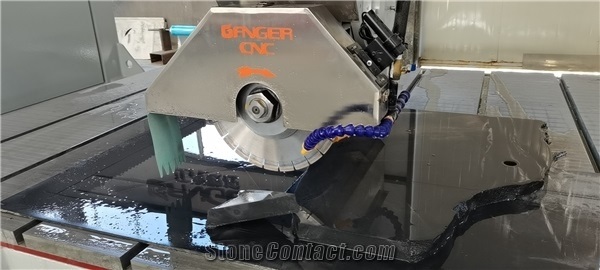

Work Example

Applicable industries and materials:

Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.

Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.

Processed Stone Photos
