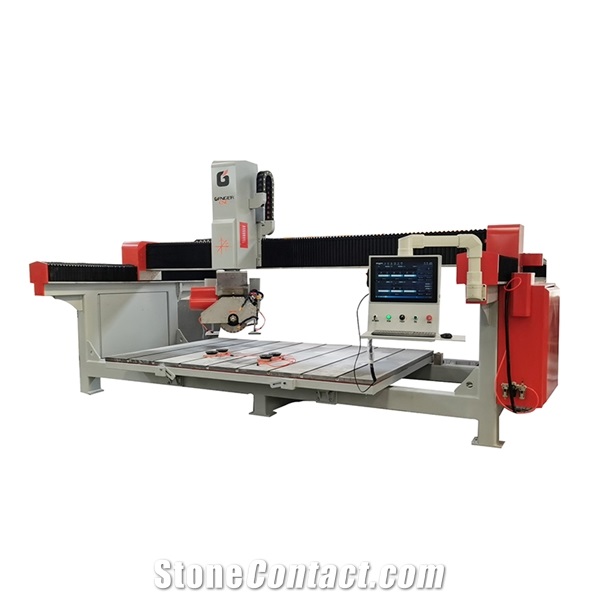

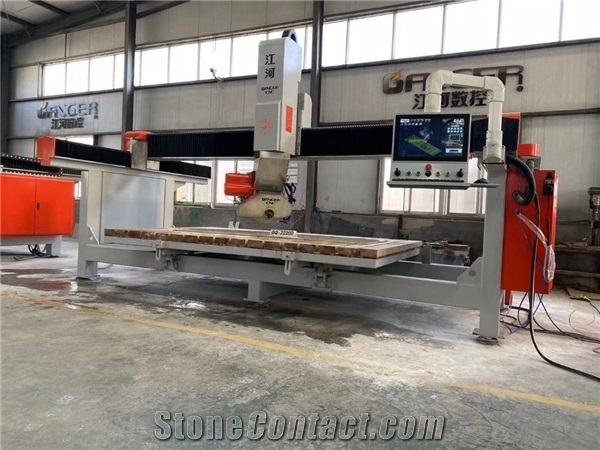

5 Axis Bridge Cutting Machine GQ-3220D- CNC Bridge Cutting Machine
FOB Price:$28800-30000
Supplier
Eatablished :Mar 10,2021
Main Product:
Bridge Saw Cutting Machine, Stone Cnc Machine, Bridge Cutting Machine, Quartz Cnc Machining Center, Bridge Saw Cutter Slabs, Bridge Saw Cutting|
Parameters |
Unit |
GQ-3220D |
Vertical cutting spindles motor power |
kw |
7.5 |
Max.width of the cut slab |
mm |
200 |
Disc diameter |
mm |
350 |
Max number of interpolated axes |
nr |
5 |
Horizontal stroke speed(X axis displacement speed) |
m/min |
3 |
Transversal stroke speed (Y displacement speed) |
m/min |
3 |
Max. workable thickness |
mm |
6 |
Max.length of the cut slab |
mm |
3200 |
Number of vertical cutting spindles |
nr |
1 |
Vertical stroke speed (Z displacement speed) |
m/min |
30 |
Head motor power |
kw |
5.41 |
Worktable turn-over degree |
° |
85 |
Worktable Weight |
Kg |
3000 |
Dimensions of the work table(L×W) |
mm |
3200X200 |
Z-axis working travel vertical cutting spindles |
mm |
470 |
Max. dimensions of the piece for “rodding” application |
mm |
3200X2000 |
Machine width |
mm |
3000 |
Max. dimensions of the liftable piece |
mm |
3200X2000 |
Machine length |
mm |
5500 |
Installed electrical power |
kw |
29 |
Crossbeam motor power |
kw |
5.41 |
Hydraulic station motor power |
kw |
5 |
Disc motor power |
kw |
5.41 |
Average level of equivalent sound pressure |
dB |
30-40 |

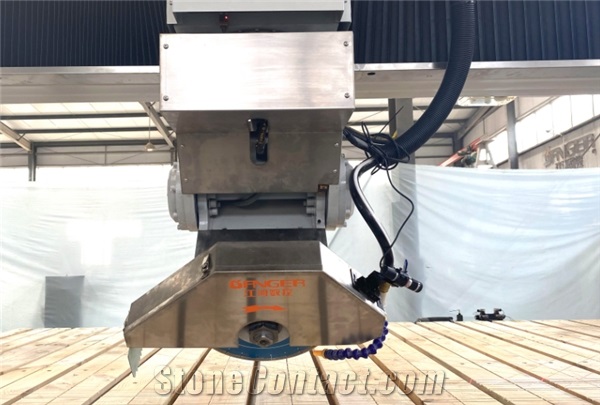

Tools holder head inclination(A axis blade rotation) |
° |
0 to 90 |
Approximate weight without table |
Kg |
40000 |
Max. cutting depth |
mm |
6 |
Machine height |
mm |
2850 |
C axis blade rotation |
° |
0 to 360 |

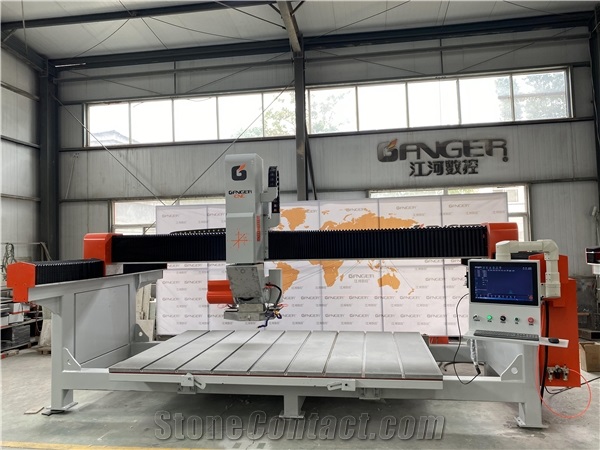

5 Axis Bridge Cutting Machine GQ-3220D
Features:
XYZAC five axis, A axis 0 to 90 degrees automatic rotation, C axis 0 to 360 degrees automatic rotation.

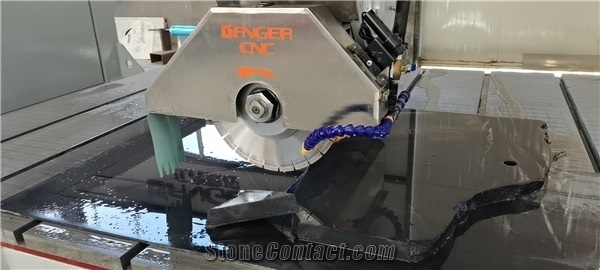

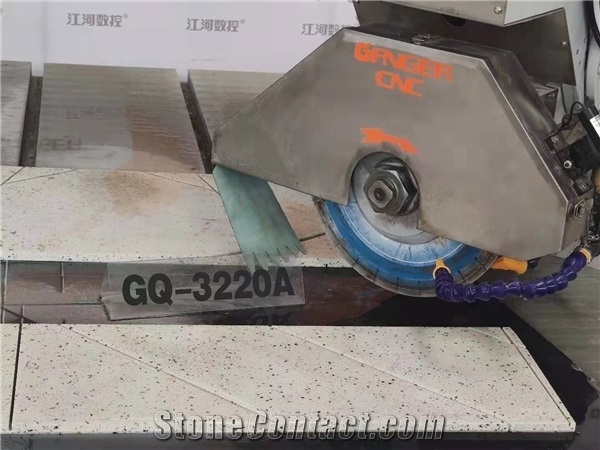

Cutting straight line, circular, arc, grid point.

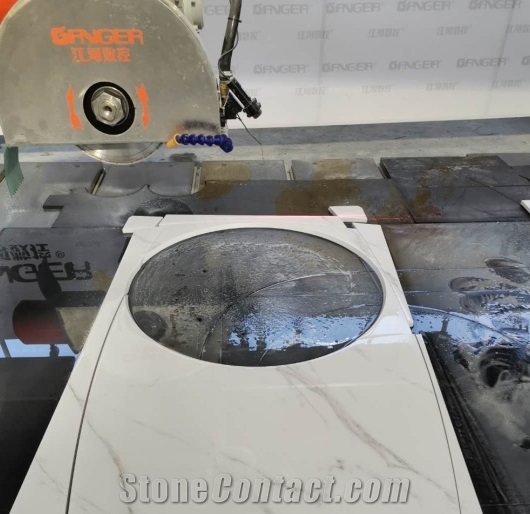

slotting, edging, beveling, chamfering and cutting;
Curved surface, engraving, cutting holes, and contouring are all available.
By infrared ray to confirm the position of the workpiece.
Intelligent on-demand typesetting, saving time and materials.
Applicable industry & material
Applicable industry: sintered stone application industry, fabricated building materials industry, home decoration materials industry, cutting marble, artificial stone, quartz stone and other materials.
Applicable material: sintered stone, ceramic plate, quartz stone, marble, etc.
|
Technical Parameters |
|
|
Model |
GQ-3220D |
|
X/Y/Z Axis working size |
3200*2000*500mm |
|
Diameter of blade |
350mm |
|
Working table size |
3200x2000mm |
|
Blade Motor power |
15KW |
|
Total power |
29KW |
|
Rotation speed of blade |
3000/6000rpm (Optional, adjustable) |
|
A axis rotation angle |
0-90° |
|
C axis rotation angle |
0-360° |
|
Control system |
GANGER |
|
Gross weight |
4500KGS |
-
SPINDLE
-

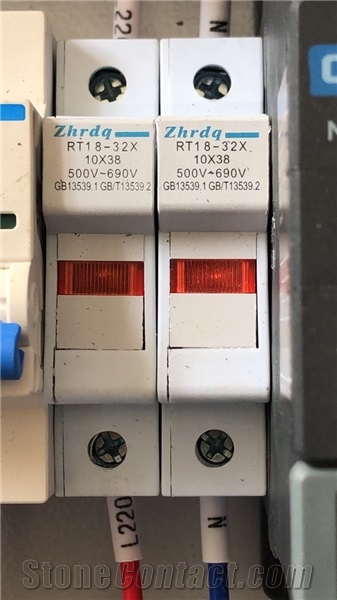

FUSE WIRE
