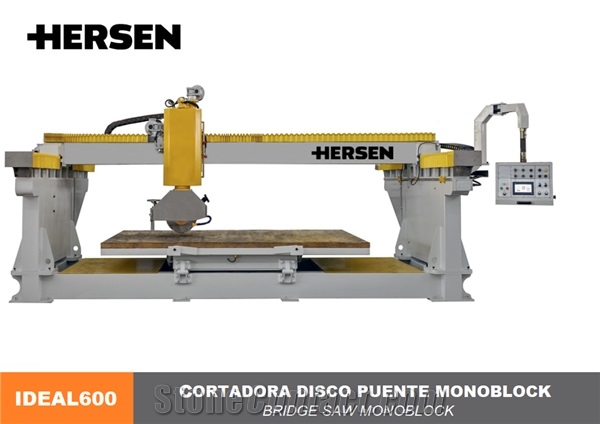

Ideal 600 Bridge Saw Monoblock Bridge Cutting Machine

Ideal600 Monoblock Bridge Saw. Machine with head rotation from 0º to 90º, to cut marble, granite, quartz and porcelain slabs. Ref. 8902 Bridge Saw Monoblock Ideal600 Ref. 8902 Technical characteristics: One-piece self-supporting steel structure. The structure does not need a foundation and is completely fixed to the ground. Structure accompanied by tilting bench with wood and rubber surface. Technical characteristics: -Maximum cutting length (X axis): 3300mm -Maximum cutting width (Y axis): 2000mm -Max cutting thickness (Z axis): 150mm -Max thickness cut to miter cut: 60mm -Diameter of disc: minimum 400mm – maximum 600mm -Max. Miter cut disc diameter: 400mm -Diameter of disc shaft: 50mm -Degrees of horizontal rotation of the head: Fixed positions of 0º / 90 °. This head does not interpolate. -Table dimensions: 3200 × 2000 mm -Tilt Table Tilt: 85 ° (Approx.) -Manual table rotation 360 ° with locking of all positions -Disk motor power: 15Kw -Motor power (X axis): 2.2 Kw -Motor power (Y axis): 1.5 Kw -Power of the up / down motor (Z axis): 0.75 Kw -Oil pump power 3Kw -Total power: 23Kw -Speed ​​of rotation of the disk motor 1440 rpm -Required air pressure: 6 bar -Weight of the machine 6500Kg -Machine dimensions: 5800x3400x2300mm
