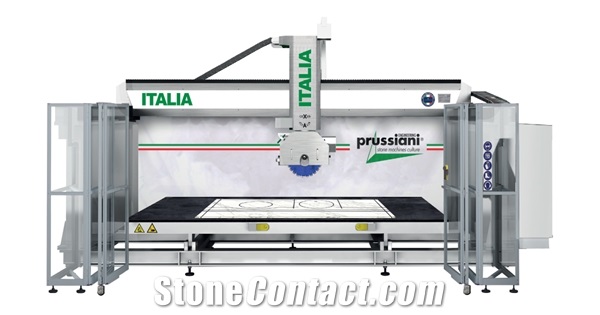

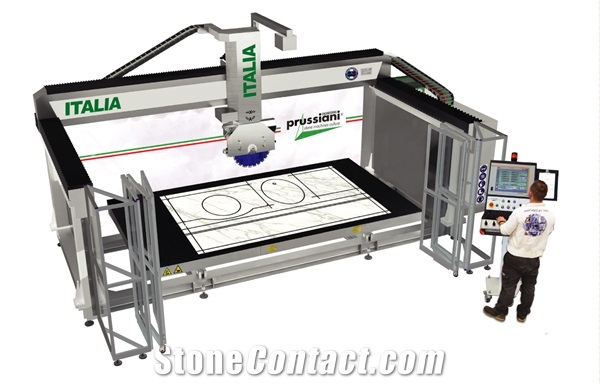

Italia CNC Bridge Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:3 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
Machinery Function Features
Automatic centralized greased lubrication. In case of anomalies the machine stops
Watertight IP 55 electric cabinet with safety thermostat
Sound power level: 80 ÷ 90 dB(A)
Technical Data
Parameters |
Unit |
Italia |
Max. workable thickness |
mm |
215 |
Main disk-holder electrospindle torque |
Nm |
72 |
C axis blade rotation |
° |
0° ÷ 90° |
Horizontal stroke speed(X axis displacement speed) |
m/min |
45 |
Transversal stroke speed (Y displacement speed) |
m/min |
45 |
Machine width |
mm |
3.350 |
Machine height |
mm |
2.700 |
Vertical stroke speed (Z displacement speed) |
m/min |
10 |
Machine length |
mm |
5.550 |
Disc motor power |
kw |
20 HP |
Head motor power |
kw |
18 |
Approximate weight without table |
Kg |
5.000 |
Electrospindle tool holder |
1/2″ gas |
|
Tools holder head inclination(A axis blade rotation) |
° |
– 185° + 185 |
Max distance table spindle nose |
mm |
300 |
Average level of equivalent sound pressure |
dB |
80 ÷ 90 dB(A) |
Main disk-holder electrospindle rotation speed |
Rpm |
0 ÷ 6.000 |
Horizontal stroke(X axis travel) |
mm |
3.600 |

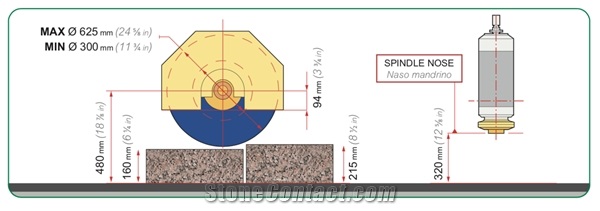

Disc diameter |
mm |
max 625 / min 300 Dia |
Bridge transversal stroke(Y axis travel) |
mm |
2.100 |
Head raising/lowering stroke(Z axis travel) |
mm |
350 |
