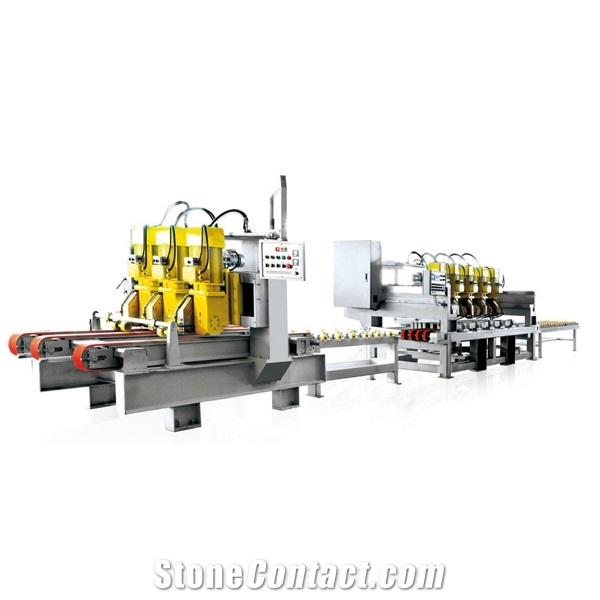

DZQ-400 Automatic Multi-Blades Edge Cutter, Strip Cutting
FOB Price:$10000-12000
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30 DAYS
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features
1.It is an efficient cutting equipment, with advantages of reasonable structure, reliable running, high processing precision, high degree of automation, etc.
2.Independent beams and variable frequency speed control of the main transmission, meet a variety of cutting requirements.
3.The advanced PLC intelligent control system is adopted to achieve full automatic control.

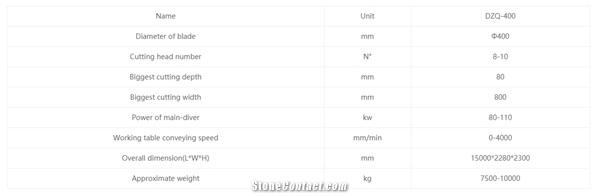

Technical Data
Parameters |
Unit |
DZQ-400 |
Machine length complete with roller bench |
mm |
15000 |
Biggest cutting depth |
mm |
80 |
Power of main-diver |
kw |
80-110 |
Machine height (H) |
mm |
2300 |
Biggest cutting width |
mm |
800 |
Working table conveying speed |
mm/min |
0-4000 |
Approximate weight |
Kg |
7500-10000 |
Cutting angles |
° |
8-10 |
Disc diameter |
mm |
400 |
Machine width (W) |
mm |
2280 |

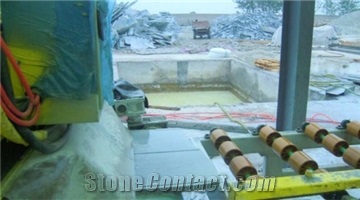

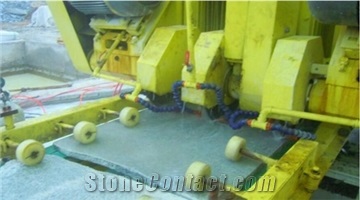

Processed Stone Photos
Components
Consumables
