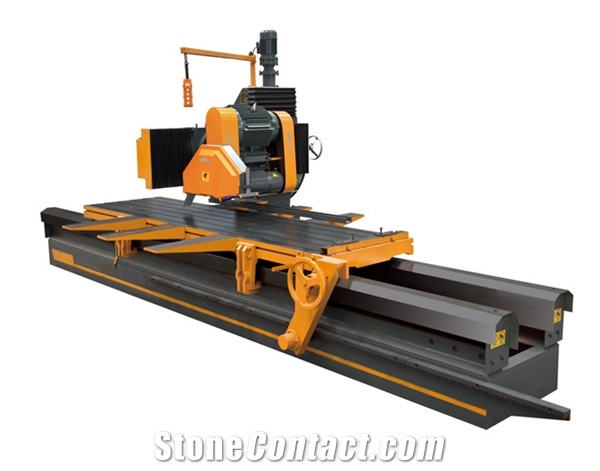

SQA-600 Hand Swaying Edge Cutting Machine

FOB Price:$6900-7990

Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage: Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 35 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment : Payment Payment Payment

Supplier

XIAMEN SHUINAN MACHINE CO.,LTD.

XIAMEN SHUINAN MACHINE CO.,LTD.
SHUINAN MACHINE

ChinaChina level5YR idicon

Eatablished :Sep 10,2018

Main Product:

Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|

Contact supplier

Start Order

You may also like
Cutting Saw Of Thin Stone Veneer Tiles
Cutting Saw Of Thin Stone Veneer Tiles
DZQ-400 Automatic Multi-Blades Edge Cutter, Strip Cutting
DZQ-400 Automatic Multi-Blades Edge Cutter, Strip Cutting
Stone Trimming Machine
Stone Trimming Machine
Right Angle Saw Cut Brick And Cladding Stone Cutting Machine For Wall
Right Angle Saw Cut Brick And Cladding Stone Cutting Machine For Wall
Semi Automatic Manual Cutting Machine For Marble Granite Slab And Tile
Semi Automatic Manual Cutting Machine For Marble Granite Slab And Tile
  • Overview
  • Components
  • Trade Terms
Machinery Function Features
SQA-600 uses the joint structure; the main head can rotate 180 degrees and be electrically moving up and down. The whole machine has a compact structure, fine appearance, stable functions and high processing precision, which suits for edge cutting and milling of small slates, lath and thick tiles.
Technical Data
Parameters
Unit
SQA-600
Machine length complete with roller bench
mm
5500
Installed electrical power
kw
16/20
Disc diameter
mm
Φ600
Machine width (W)
mm
2200
Worktable size
mm
3000*750
Cooling water requirement
m3/h
3
Maximum strip width
mm
1100
Spindle advancement motor power
kw
15/18.5
Maximum thickness
mm
1200
Approximate weight
Kg
2800
Max. processing length
mm
2700
Machine height (H)
mm
2250
Processed Stone Photos
  • Processed Stone Photos

  • Processed Stone Photos

  • Processed Stone Photos

Components
Consumables
  • Shaft

    Shaft

  • Belt

    Belt
