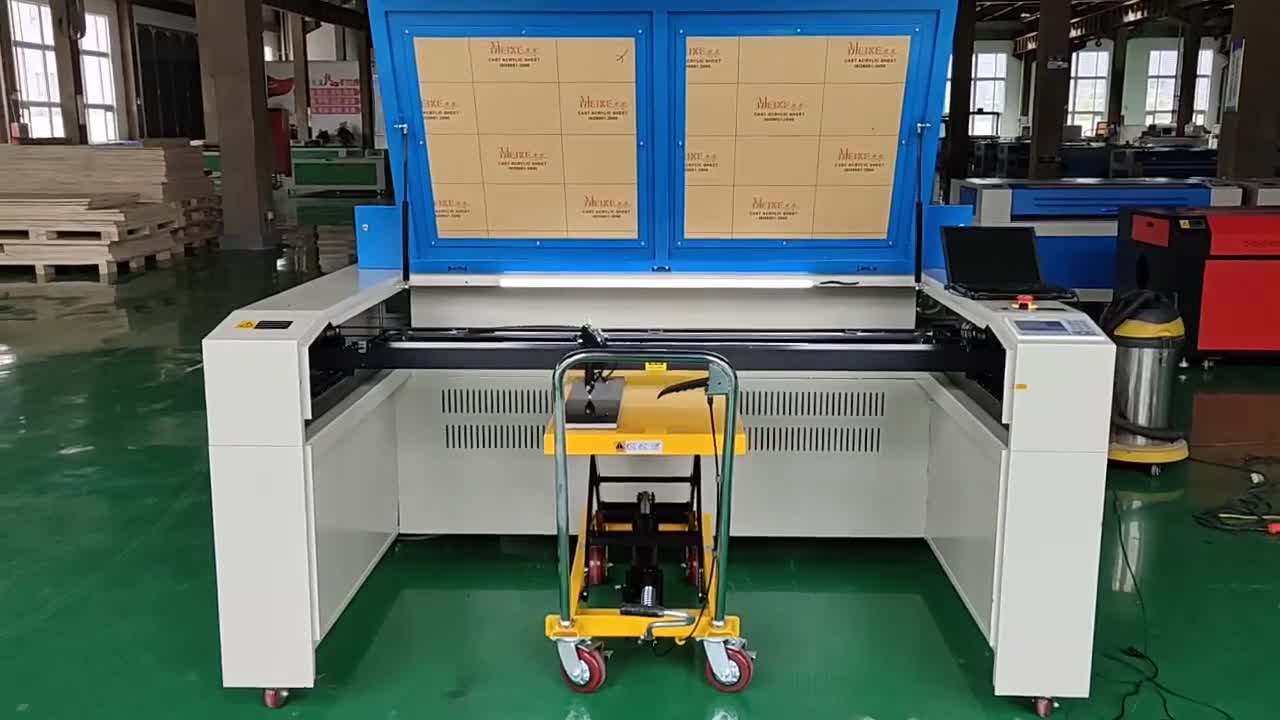

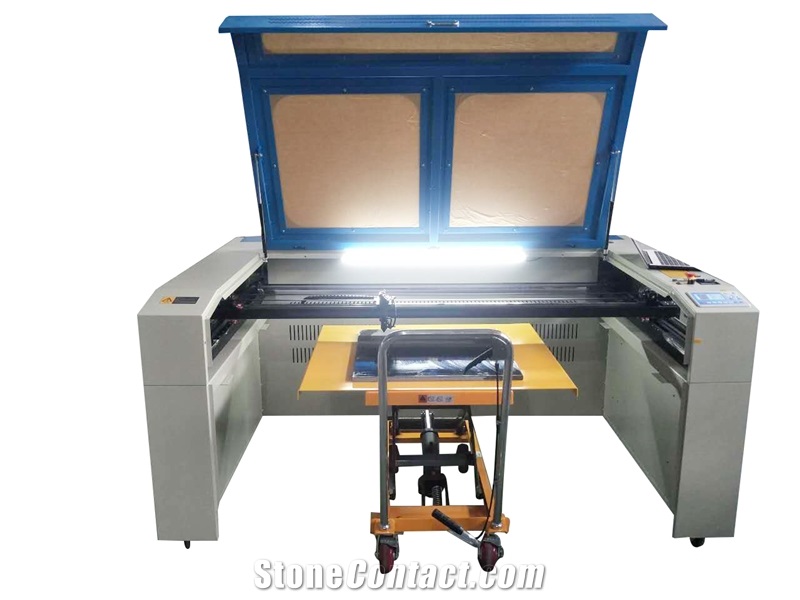

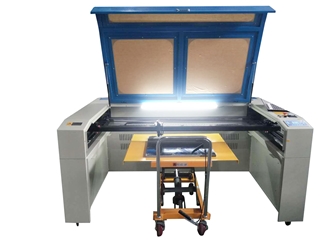

HQ1690 CNC Laser Engraving Machine For Marble Stone Granite Tombstones
FOB Price:$5000-10000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
12 workding days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Mar 31,2016
Main Product:
Cnc Laser Engraving Machine, Cnc Co2 Laser Cutting Machine, Cnc Co2 Laser Cutting Tool For Stone, Cnc Co2 Stone Carving Machine, Cnc Laser Engraver For Marble, Cnc Laser Engraver For Granite|
Machinery Function Features
Application Industry and materials:
All kinds of stone processing industry, marble, granite, tombstone, gravestone, headtone and so on.
Advantage:

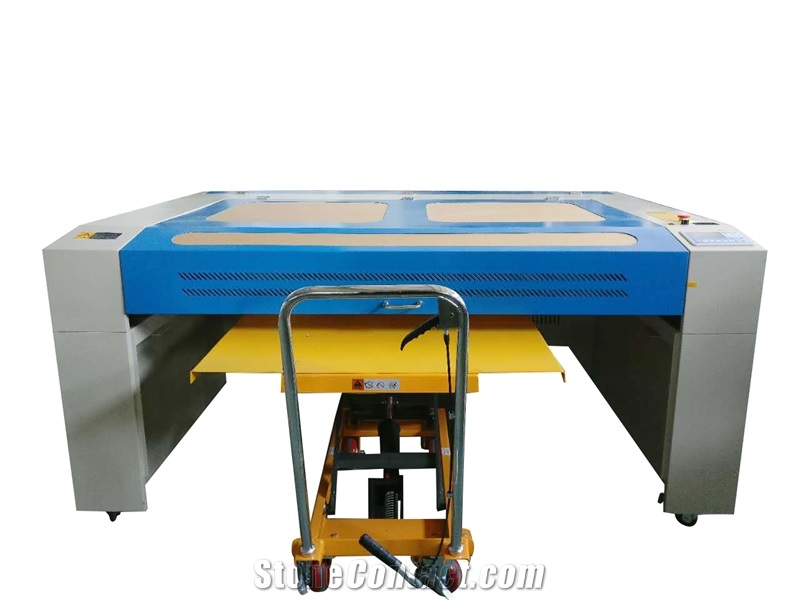

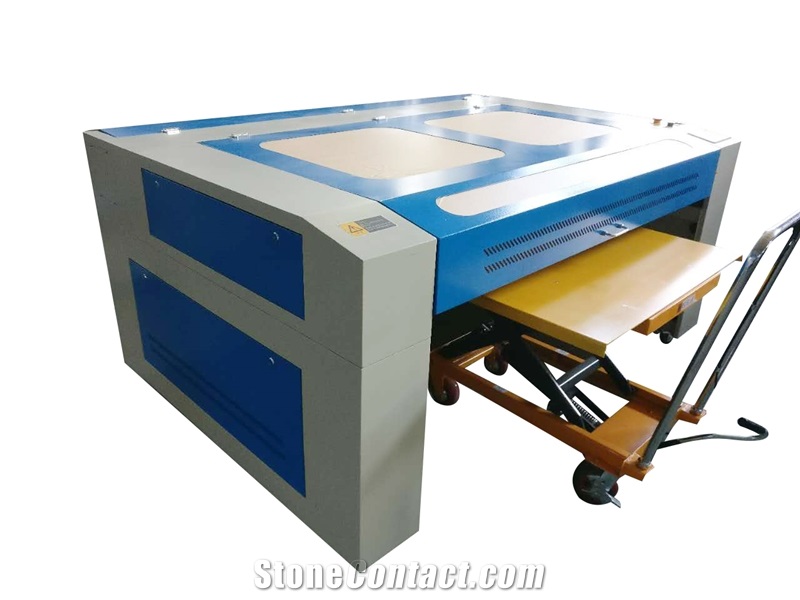

The wagon can hold heavy stone and can be lifted up or down easily. The wagon can be moved flexibily to any direction according to the engraved marble.
Technical Data:
Laser Style: CO2 Sealed-Off Laser Glass tube, water-cooled
Laser power: 80/100/120W
Engraving size: 1600 * 1000mm
Engraving speed: 0-60000mm/min
Power supply: AC220V/50HZ AC110/60HZ
Total Power: <1000W
Operating temperature: 0-45 degree
Operating Moisture: 5-95%
Min. cutting character: English letter: 1.0 * 1.0mm
Available Picture Format: BMP, PLT, DST, DXF, AI
Supporting Software: CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving System: 2 phases stepper motor
Machine Dimension: 1320 * 1000 * 1050mm
Packing Dimension: 2200 * 1200 * 1100mm
Net Weight: 180kg.
Technical Data
Parameters |
Unit |
HQ1610 |
Optional Parts |
Up-down worktable, USB Port, Red light pointer, Autofocus |
|
Min. cutting character |
mm |
English letter: 1.0 * 1.0 |
Driving System |
2 phases stepper motor |
|
Available Picture Format |
BMP, PLT, DST, DXF, AI |
|
Laser power |
W |
80/100/120W |
Max. working speed |
mm/min |
0-60000 |
Electricity-Voltage |
V/Hz |
AC220V/50HZ AC110/60HZ |
Machine overall width |
mm |
1000 |
Operating Moisture |
5-95% |
|
Control System |
CorelDraw, PhotoShop, AutoCAD,TAJIMA |
|
Approx. Weight |
Kg |
180 |
Laser Style |
CO2 Sealed-Off Laser Glass tube, water-cooled |
|
Total power |
w |
<1000 |
Max. processing length |
mm |
1600 |
Max. Processing Width |
mm |
1000 |
Operating temperature |
0-45 degree |
|
Machine overall length |
mm |
1320 |
Machine overall height |
mm |
1050 |
Software
Software: Ruida 6445G controller
Work Example

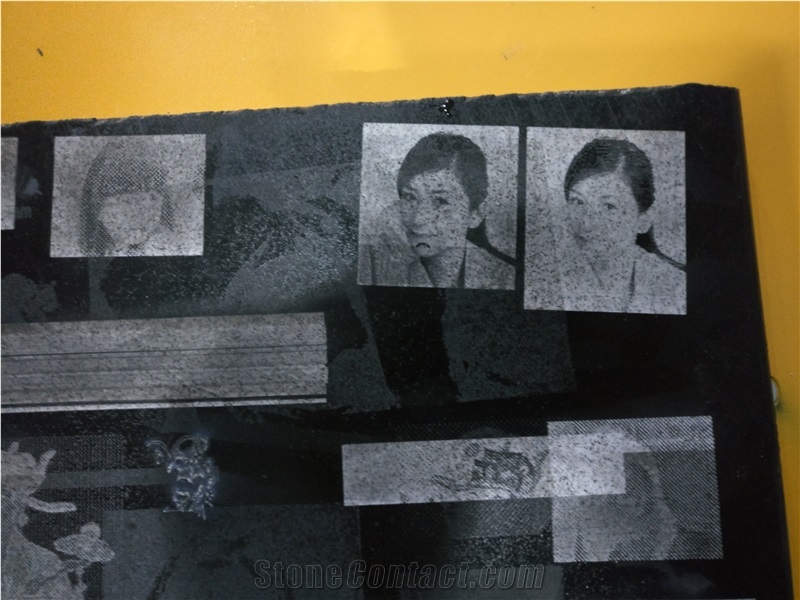

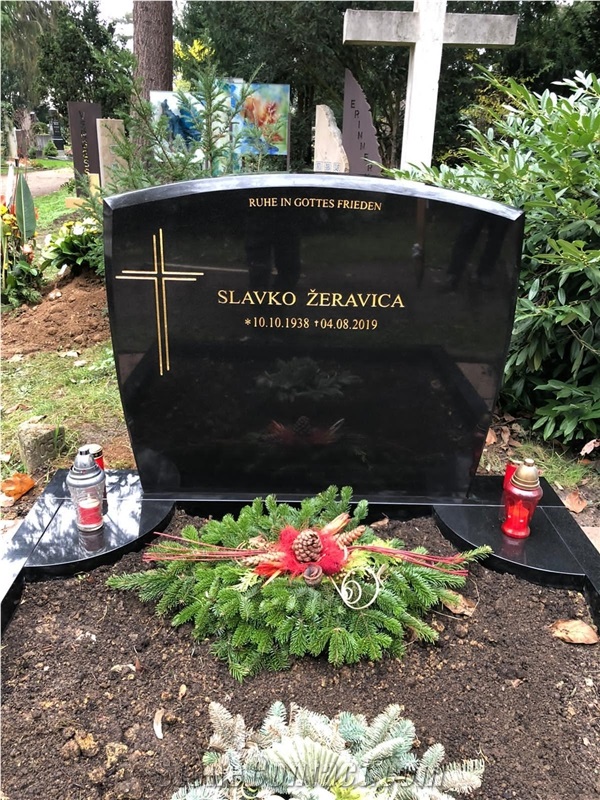

Processed Stone Photos
-

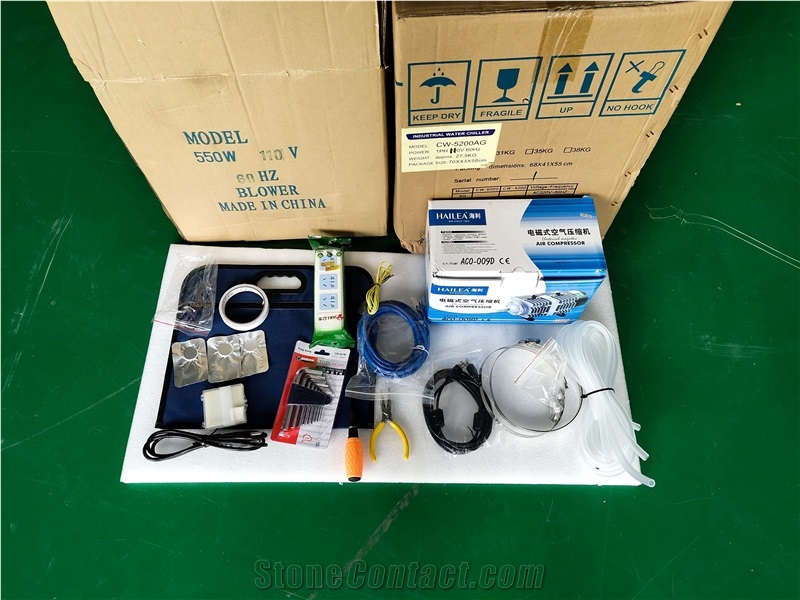

Accessory parts
Components
-

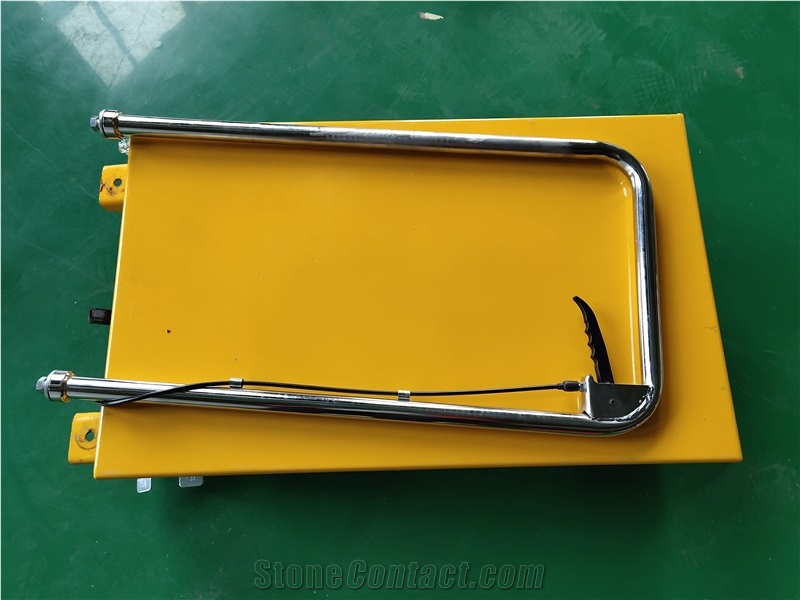

Wagon
Consumables
-

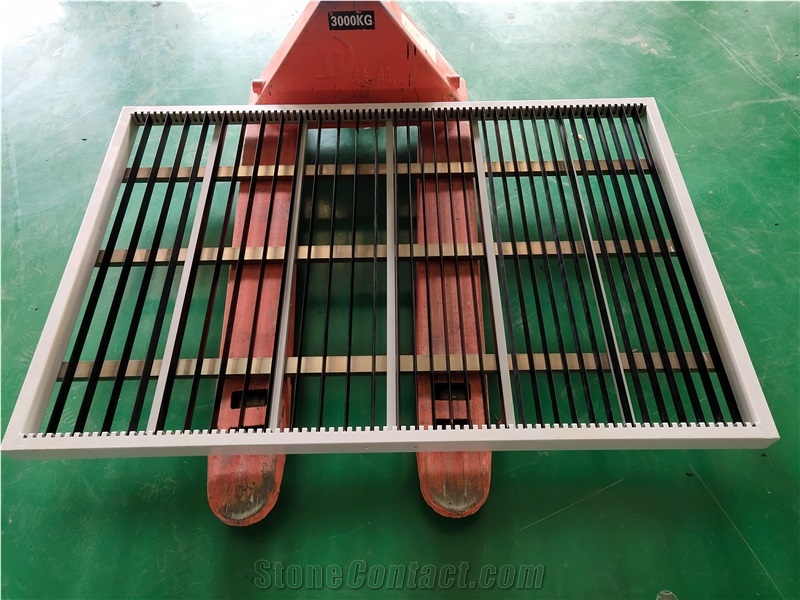

Honeycomb
