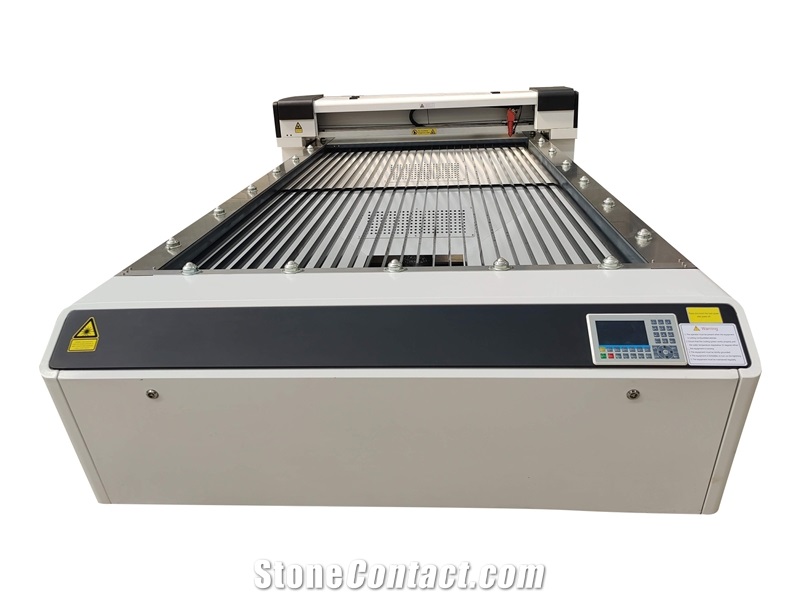

1325 CNC CO2 Laser Engraving Carving Etching Machine
FOB Price:$5000-8000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
10 working days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Mar 31,2016
Main Product:
Cnc Laser Engraving Machine, Cnc Co2 Laser Cutting Machine, Cnc Co2 Laser Cutting Tool For Stone, Cnc Co2 Stone Carving Machine, Cnc Laser Engraver For Marble, Cnc Laser Engraver For Granite|
Machinery Function Features
Laser Style: CO2 Sealed-Off laser glass tube, water-cooled
Laser power: 100-300W
Working size: 1300 * 2500mm
Engraving speed: 0-400mm/sec.
Cutting speed: 0-200mm/sec.
Platform: Fixed platform
Positional Accuracy: ≤±0.01mm
Number of Hanged Line: 60 lines
Power supply: AC220V/50HZ; AC110V/60HZ
Total Power: <1500W
Operating temperature: 0-45℃
Operating Moisture: 5-95%
Resolution: <4500dpi
Control Configuration: DSP
Maximum engraving depth: 3.5mm
Minimum cutting character: English letter: 1.0 * 1.0mm
Type of Cooling: water-cooling and protection system
Cut by color separation: reaches 256 colors to cut
Water protection: Yes
Gradient Engraving: Yes, gradient adjustable
Available Figure Format: BMP, PLT, DST, DXF, AI
Supporting Software: CorelDraw, PhotoShop, AutoCAD,TAJIMA
Driving System: 2 phases stepper motor
Machine Dimension: 3670 * 2050 * 1140mm
Packing Dimension: 3770 * 2150 * 1240mm
Gross Weight: 1000kg
Technical Data
Parameters |
Unit |
HQ1325 |
Control System |
RDWORKS |
|
Approx. Weight |
Kg |
1000 |
Y axis stroke |
mm |
2500 |
Z axis stroke |
mm |
30 |
Max. loading weight |
Kg |
500 |
Max. Processing Width |
mm |
1300 |
Work table dim.(LxWxH) |
mm |
130082500 |
Electricity-Voltage |
V/Hz |
220V/110V 50-60HZ |
X axis stroke |
mm |
1300 |
Number of engraving head |
nr |
1 |
Max. processing length |
mm |
2500 |
Software
RDWORKS
Work Example
Processed Stone Photos
Components
-
LASER TUBE
Consumables
-

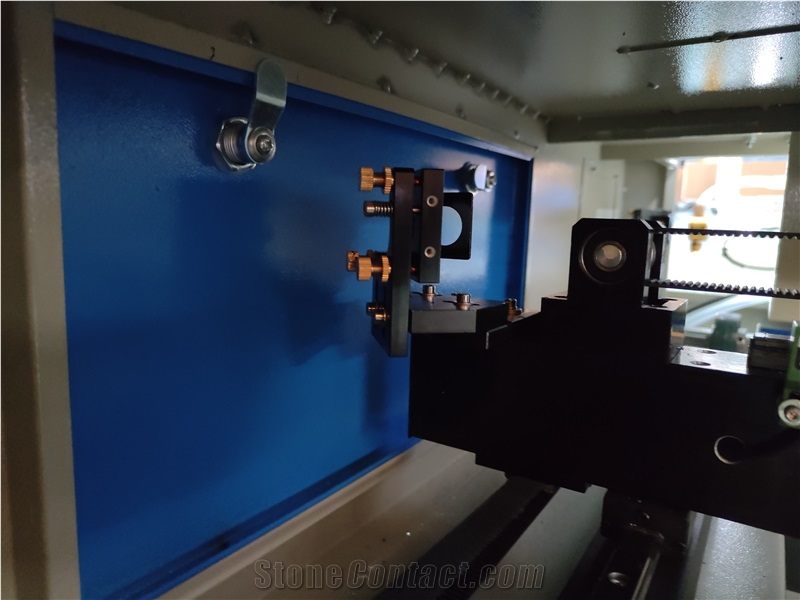

MIRROR
