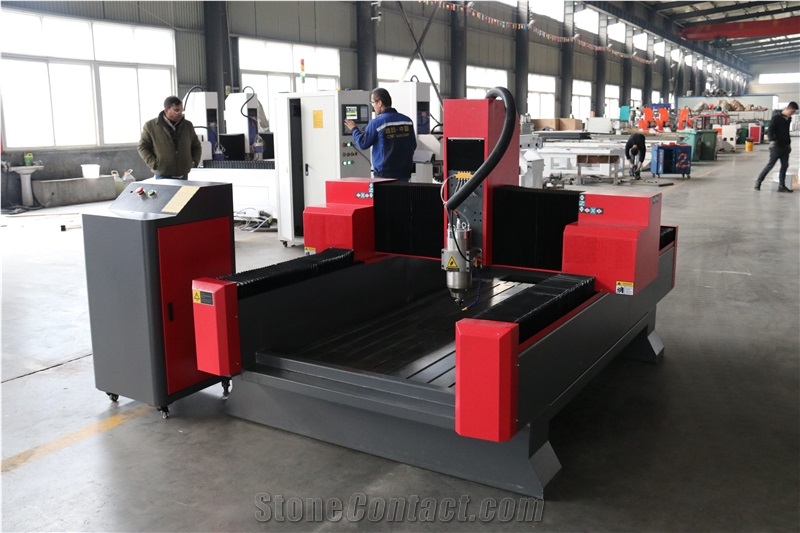

CNC1325 Stone Carving Machine
FOB Price:$5000-7000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Carving,Engraving Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
30 working days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Mar 31,2016
Main Product:
Cnc Laser Engraving Machine, Cnc Co2 Laser Cutting Machine, Cnc Co2 Laser Cutting Tool For Stone, Cnc Co2 Stone Carving Machine, Cnc Laser Engraver For Marble, Cnc Laser Engraver For Granite|
Machinery Function Features
1325 Specification
Model: CNC1325 Stone Carving
Working size （X、Y、Z):1300mm*2500mm*400mm
Lathe bed: Heavy-duty T-shaped bed, steel beam large gantry, feeding height 400 mm. Stainless steel sink
Working voltage:220V/3 phases or 1 phase by extra voltage stabilizer
Spindle power:HQD5.5KW water-cooled spindle*1
Inverter:FULING frequency converter
Main electric parts:Omron, CHNT, SIEMENS
Motor:Stepper motor (450B)
Driver: Stepper driver (860H)
Control system: NCStudio controller
Working table: Aluminum working table
Spindle speed: 6000——18000rmp/min
Transmission system: X/Y adopt rack from German HERION，Z axis adopt ball screw of TBR2505 from Taiwan
Guide rail:X/Y/Z adopt Taiwan HIWIN guide rail
Oiling system:Manual
Engraving speed:6m/min---30m/min
Repeated positioning accuracy:±0.05mm
Technical Data
Parameters |
Unit |
1325 |
Approx. Weight |
Kg |
2000 |
X axis stroke |
mm |
400 |
Number of engraving head |
nr |
1 |
Control System |
ncstudio |
|
Electricity-Voltage |
V/Hz |
220V/380V |
Y axis stroke |
mm |
2500 |
Y Axis speed |
m/min |
20 |
Z axis stroke |
mm |
1300 |
Work table dim.(LxWxH) |
mm |
1300*2500 |
X Axis speed |
m/min |
20 |
Z Axis speed |
m/min |
6 |
Software
ncstudio

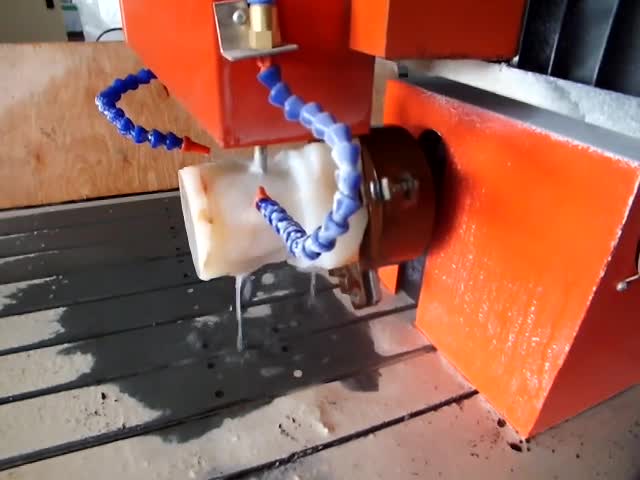

Work Example

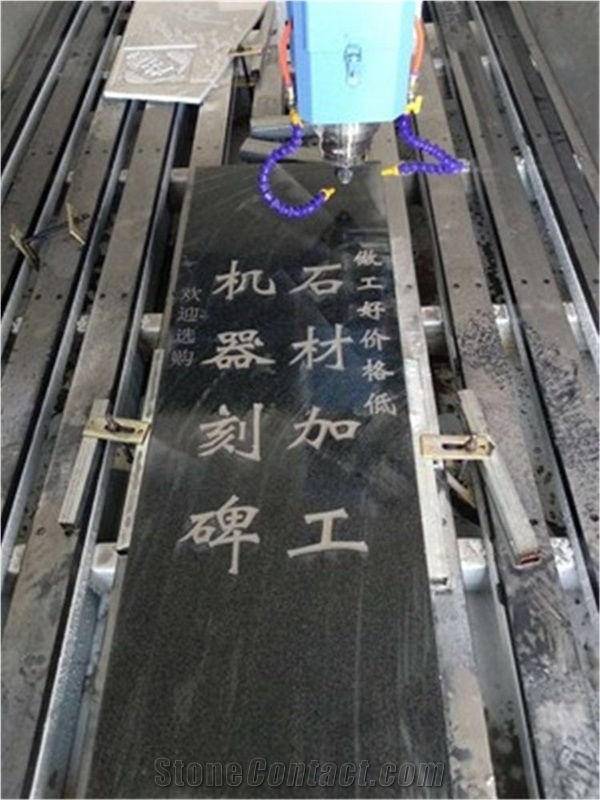

Processed Stone Photos
Components
-
Spindle
Consumables
-
knife
