KDMJX-16C/20C/24C Automatic Polishing Marble Granite Machine Series
FOB Price:$51500-51500
Type:
Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
20 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Jan 21,2014
ISO 9001
Main Product:
Bridge Cutting Machine, Medium Block Cutting Machine, Stone Profiling Machine, Stone Turnover Machine, Block Cutting Machine, Manual Edge Cutting Machine|
Machinery Function Features
1)PLC system equipped to control the horizontal swing of the cross beam and vertical movement of the polishing heads.
2)Each polishing spindles has central automatic lubricating systems for longer service life and working smoothly.
3)It adopts V-belt to transmit power so as to keep their structural properties against sudden strains.
4)This machine is capable of polishing straight flat-squared 1.5 to 3 cm thick marble, granite, or engineered stone edges at 380cm per minute.
Technical Data
Parameters |
Unit |
KDMJX-16C |
KDMJX-20C |
Useful working width |
mm |
600-1200 |
600-1200 |
Machine overall height |
mm |
2200 |
2200 |
Cooling water requirement |
m3/h |
20 |
23 |
Machine overall length |
mm |
8800 |
10200 |
Number of polishing heads/honing units |
nr |
16 |
20 |
Useful working thickness |
mm |
15-100 |
15-100 |
Belt advancement speed |
mm/min |
0-2300 |
0-3200 |
Total power |
kw |
93/126 |
156 |
Spindle motor power |
kw |
5.5/7.5 |
7.5 |
Machine overall width |
mm |
2150 |
2150 |
Processed Stone Photos
Components
-

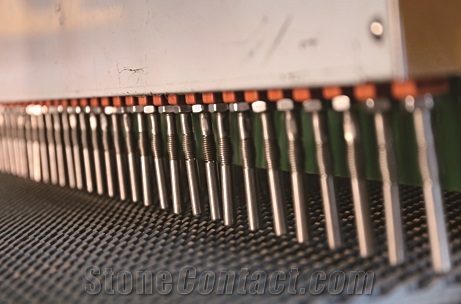

Sensor for slab shape
-

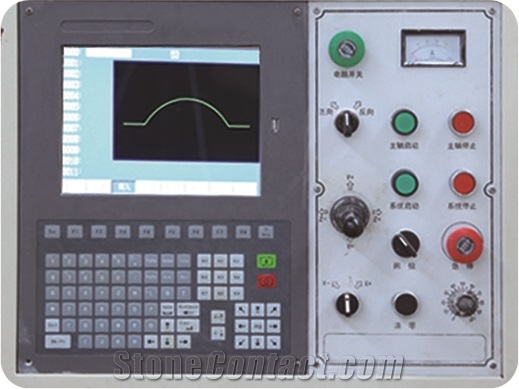

Control panel
-
Loading table
Consumables
-
Solenoid value
Customer Case
Jason
American Samoa
0
American Samoa
0
Video
Install Video
Operation Video
